If you're purchasing an outdoor telecom cabinet, battery energy storage enclosure, or industrial electrical cabinet, you've probably heard the term lifting eyes during design reviews or installation planning.
In this guide, you'll learn:
What lifting eyes are and how they work
Why lifting eyes are important for outdoor enclosures
Common types of lifting eyes and lifting lugs
How many lifting points your cabinet may need
Key design and safety considerations
The difference between lifting eyes and forklift pockets
How CYTECH designs lifting solutions for custom outdoor enclosures
By the end of this article, you'll understand how lifting eyes contribute to safer transportation, easier installation, and better protection for valuable equipment.

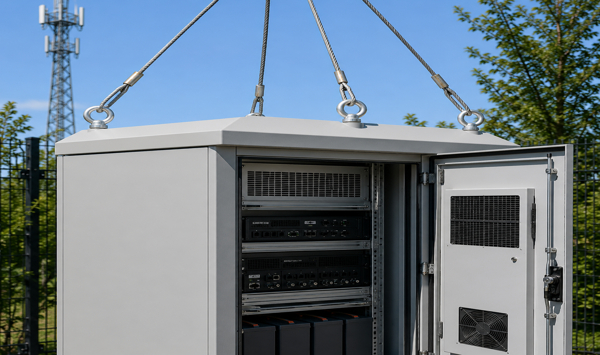

Lifting eyes, also known as lifting points or eye bolts, are specially designed attachment points used to connect lifting equipment such as cranes, slings, hooks, or shackles to a load. Their purpose is to provide a secure and engineered lifting location for safely moving heavy equipment and enclosures. Properly selected lifting eyes must be rated for the intended load and installed according to lifting safety requirements.

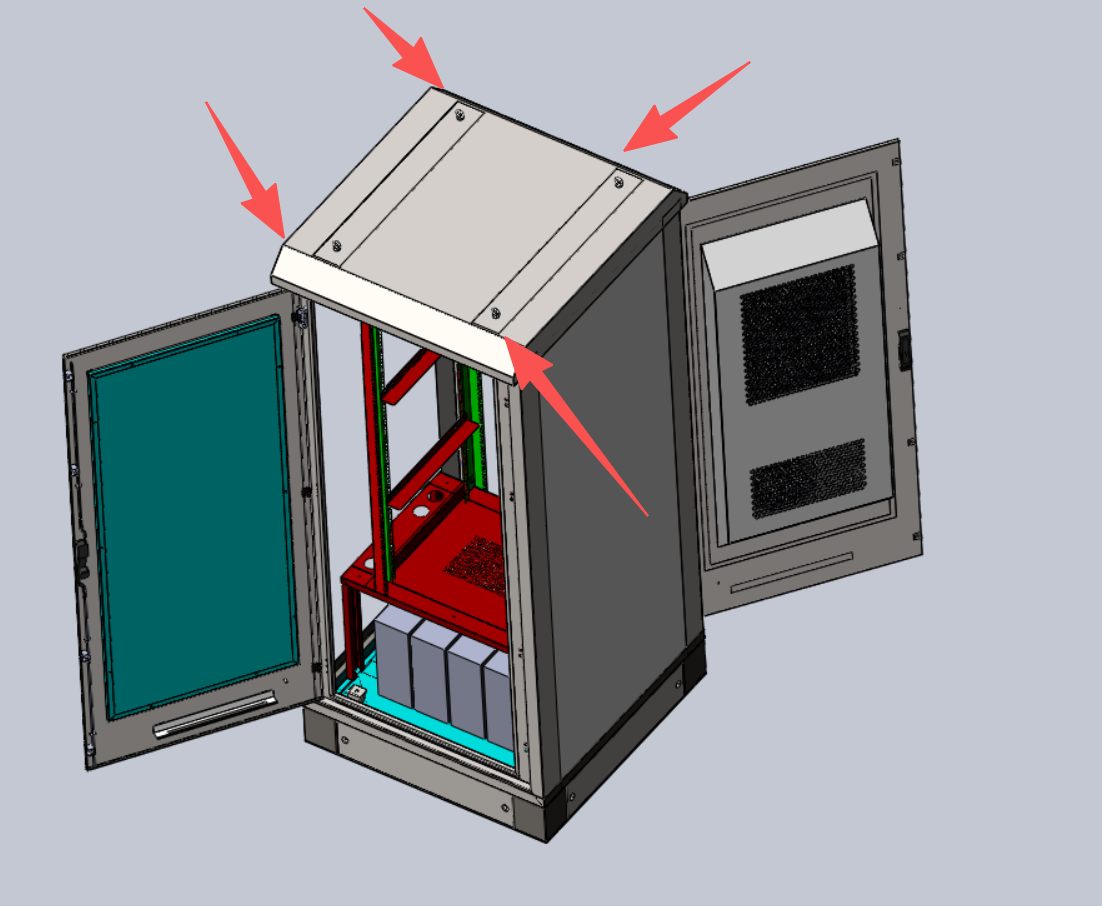

In outdoor enclosure applications, lifting eyes are typically installed on the top frame or reinforced structural sections of the cabinet. They allow the enclosure to be safely lifted during manufacturing, transportation, site delivery, and final installation.
Outdoor telecom cabinets can range from a few hundred kilograms to several tons, especially when equipped with batteries, power systems, cooling units, and communication equipment.
Without properly designed lifting points, moving these cabinets can create serious risks, including:
• Structural deformation
• Equipment damage
• Installation delays
• Workplace safety hazards
• Increased transportation costs
Lifting eyes help distribute lifting forces through reinforced structural members, reducing stress on the enclosure and ensuring safe handling throughout the project lifecycle.

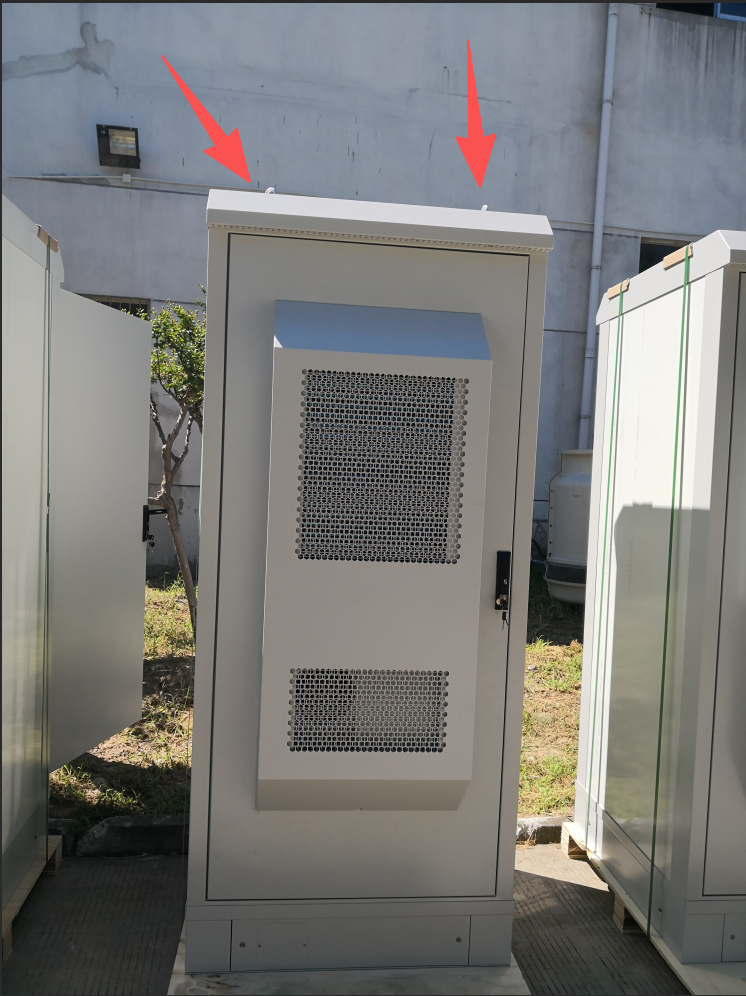

Telecom cabinets often require crane lifting during installation on rooftops, remote sites, and telecom towers. Integrated lifting eyes simplify handling and reduce installation time.
Battery storage systems are significantly heavier than standard telecom cabinets due to the weight of lithium-ion battery modules. Proper lifting points are essential for safe transportation and positioning.
Electrical distribution enclosures frequently use lifting eyes during factory shipment and utility installation projects.
Large industrial control panels and automation cabinets often require lifting points to accommodate heavy internal equipment.
Modular data center infrastructure can be safely positioned using engineered lifting eyes designed for overhead lifting operations.

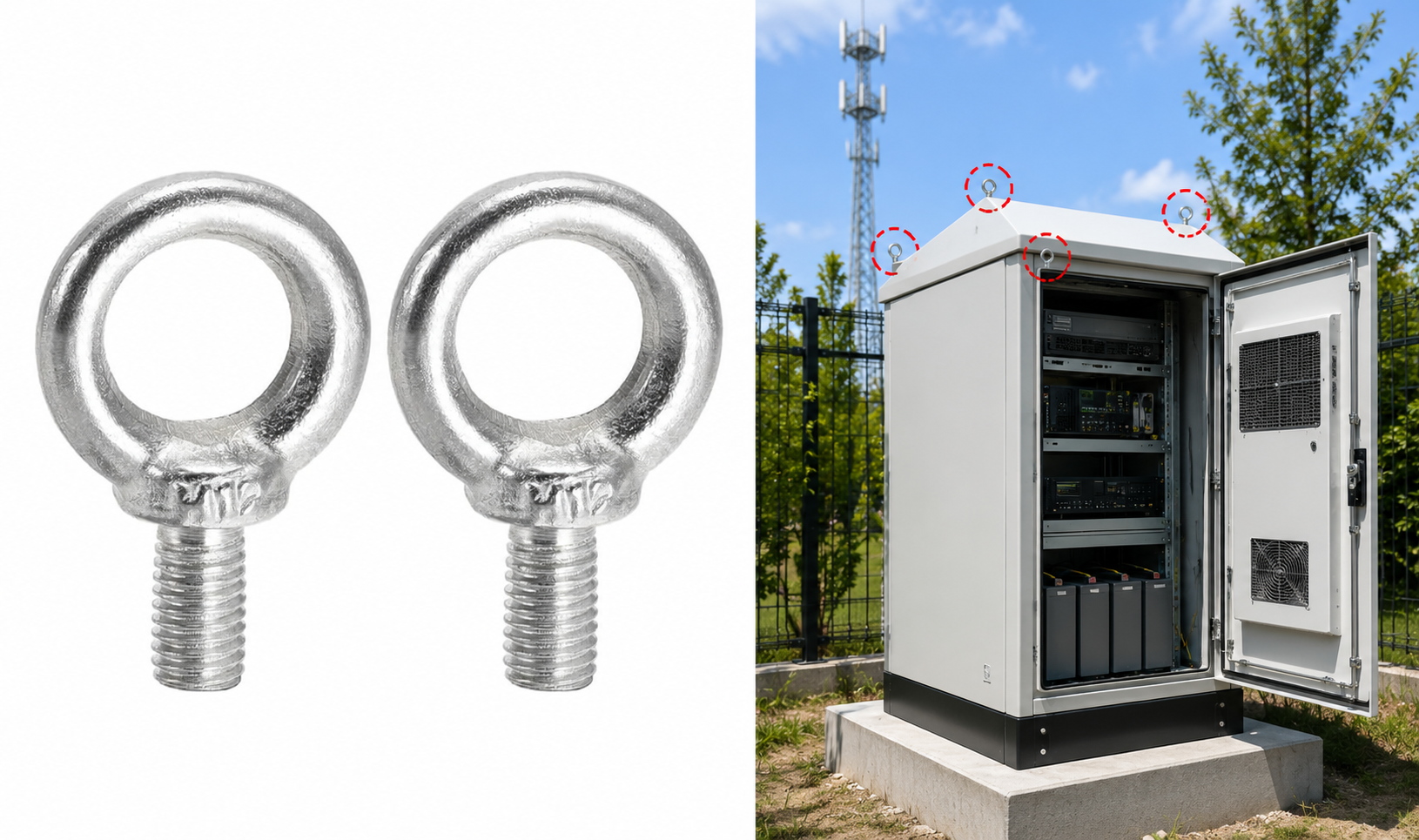

Fixed lifting eyes remain permanently attached to the enclosure structure and are commonly used for standard lifting applications.
Swivel lifting eyes can rotate and align with the direction of the lifting force, reducing side loading and improving safety during complex lifts.
These lifting eyes can be removed after installation, providing a cleaner appearance and reducing potential corrosion exposure.

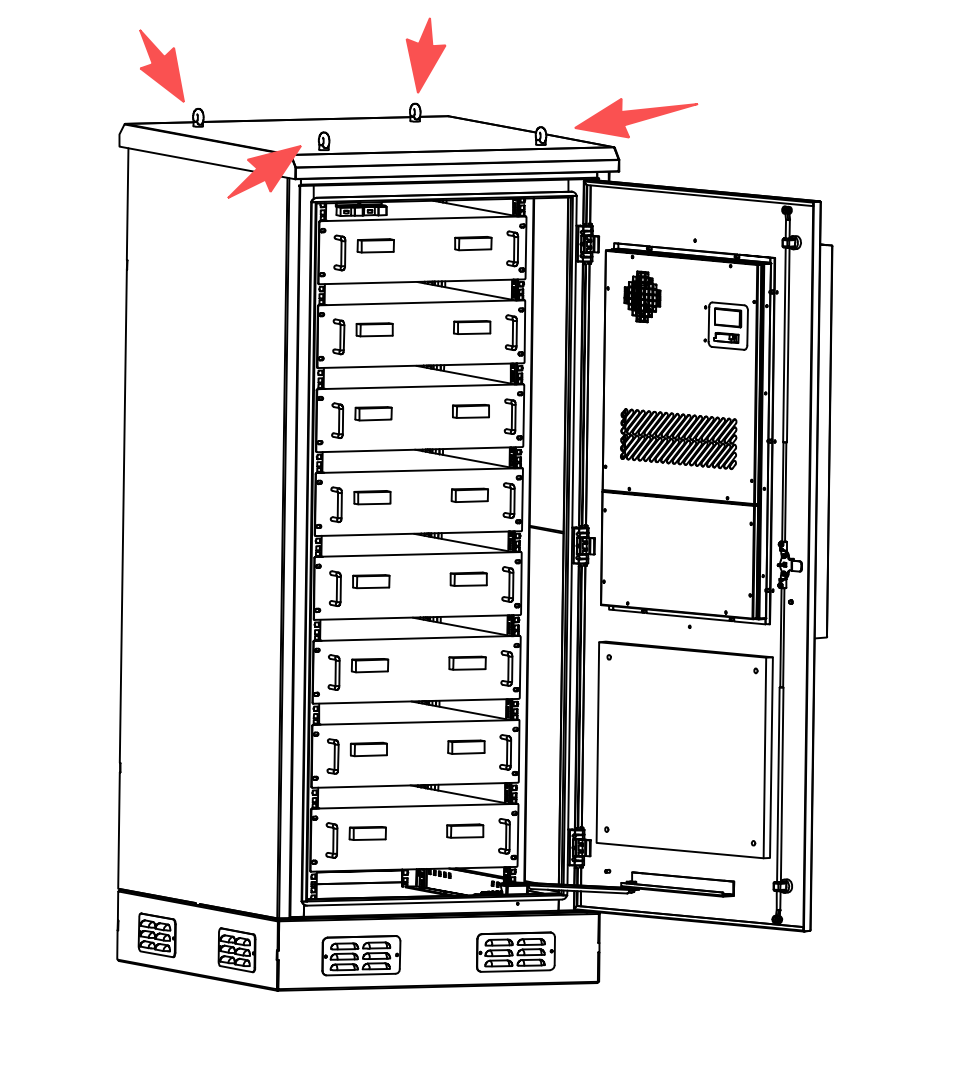

Lifting lugs are structural lifting points welded directly to the enclosure frame. They are commonly used for heavy-duty telecom cabinets and energy storage systems because they can transfer large loads into the cabinet structure.
The number of lifting eyes required depends on several factors, including cabinet weight, dimensions, center of gravity, and lifting method.
Typical recommendations include:
Cabinet Weight | Recommended Lifting Eyes |
Up to 300 kg | 2 lifting eyes |
300 kg – 1000 kg | 4 lifting eyes |
Over 1000 kg | 4–8 lifting eyes |
For large battery enclosures or integrated outdoor equipment shelters, engineers may perform lifting calculations to determine the optimal number and location of lifting points.
Every lifting eye must have a working load limit (WLL) greater than the expected lifting load. Exceeding the rated capacity can lead to catastrophic failure.
Lifting points should be positioned to account for the enclosure's center of gravity. Proper placement helps ensure balanced lifting and minimizes tilting during installation. Industry lifting practice commonly aligns lifting points relative to the center of mass to achieve stable lifting.
The enclosure frame must be reinforced around lifting points to transfer loads safely into the structure.
For outdoor environments, lifting eyes are often galvanized, powder-coated, or manufactured from stainless steel to resist corrosion.
Proper lifting systems should comply with applicable engineering and safety standards and be clearly marked with load ratings where required.
Many outdoor cabinets are designed with both forklift pockets and lifting eyes.
Forklifts are typically used for:
• Factory handling
• Warehouse movement
• Short-distance transportation
Lifting eyes are preferred for:
• Crane lifting
• Site installation
• Rooftop deployment
• Restricted-access locations
For large telecom cabinets and BESS enclosures, lifting eyes often provide the safest and most efficient lifting solution.
At CYTECH, we design outdoor enclosures with lifting safety in mind. Depending on project requirements, our engineering team can provide customized lifting solutions for:
• Outdoor telecom cabinets
• Battery energy storage enclosures
• Power distribution cabinets
• Industrial control cabinets
• Integrated equipment shelters
Available options include:
• Welded lifting lugs
• Removable lifting eyes
• Heavy-duty lifting points
• Stainless steel lifting hardware
• Custom lifting arrangements for oversized equipment
Each solution is designed according to cabinet dimensions, equipment weight, transportation methods, and installation requirements to ensure safe handling throughout the project lifecycle.
Lifting eyes may appear to be a small component, but they play a critical role in the safe transportation and installation of outdoor enclosures. Properly designed lifting points help protect valuable equipment, improve installation efficiency, and reduce workplace safety risks.
When selecting an outdoor telecom cabinet, battery enclosure, or industrial cabinet, always consider the lifting requirements of your project and ensure that suitable lifting eyes or lifting lugs are incorporated into the enclosure design.
At CYTECH, we provide customized outdoor enclosure solutions with engineered lifting systems designed for reliability, safety, and long-term performance.
A lifting eye provides a secure attachment point for cranes, slings, hooks, and shackles to safely lift and move heavy equipment.
The capacity depends on the design and rating of the lifting eye. Always refer to the manufacturer's specified working load limit (WLL).
For medium and large outdoor telecom cabinets, lifting eyes are highly recommended to ensure safe transportation and installation.
Yes. Many projects use removable lifting eyes that can be detached once installation is complete.
A lifting eye is often a threaded or bolted lifting component, while a lifting lug is usually a reinforced welded structural attachment point integrated into the equipment frame.
