How to Perform an IP55 Waterproof Test for Outdoor Cabinets with Air Conditioners

Outdoor telecom cabinets, battery cabinets, and power control cabinets are often equipped with cabinet air conditioners to maintain stable internal temperatures. Since these cabinets operate in harsh outdoor environments, both the cabinet body and the air conditioner must provide reliable waterproof protection.

Many customers know how to check the cabinet itself, but they are unsure how to verify the waterproof performance around the cabinet air conditioner after installation.

This article explains how to perform an IP55 waterproof test for outdoor cabinets equipped with air conditioners and how to inspect critical sealing areas to prevent water ingress.

What Does IP55 Mean?

According to IEC 60529 standards:

• The first digit 5 means protection against harmful dust ingress

• The second digit 5 means protection against water jets from any direction

For outdoor cabinets with air conditioners, IP55 protection applies not only to the cabinet enclosure itself, but also to:

• Air conditioner mounting areas

• AC sealing gaskets

• Cable entry points

• Ventilation structures

• Door sealing systems

IP55 vs. IP65 ,IP66 Alternatives: Comparison Table

IP55 offers a cost-effective balance for most outdoor AC-equipped cabinets.

Why IP55 Testing is Important for Cabinets with Air Conditioners

Cabinet air conditioners create an additional opening on the enclosure, making waterproof performance more critical.

If sealing is poor, water may enter through:

• Air conditioner mounting frame

• Gasket sealing gaps

• Cable entry near AC unit

• Roof or side panel joints

This can damage internal electrical equipment and reduce system reliability.

Water ingress can damage:

• Power systems

• Batteries

• Telecom equipment

• Cooling systems

• Internal electrical components

Therefore, waterproof testing around the air conditioner is extremely important after receiving and installing the cabinet.

Preparation Before the IP55 Test

Before starting the test, make sure:

1. The Cabinet Is Installed on a Flat Base

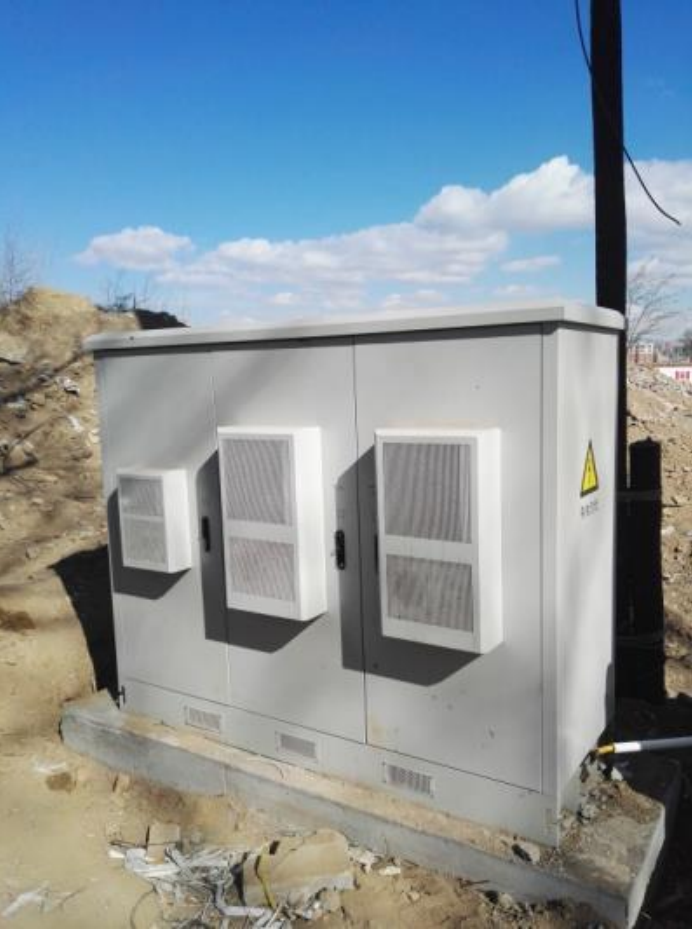

The cabinet should be mounted on an even cement plinth or steel base. Uneven installation may affect door sealing and drainage performance.

2. The Air Conditioner Is Properly Installed

Check:

• All mounting screws are tightened

• Foam gaskets are compressed evenly

• No visible installation gaps exist

• Drain pipes are connected correctly

3. Doors and Cable Entries Are Fully Sealed

Ensure:

• Door locks are secured

• Cable glands are tightened

• Unused openings are sealed

Equipment Needed for the Waterproof Test

Recommended equipment:

• Water spray hose

• Adjustable spray nozzle

• Stable water pressure supply

• Flashlight

• Dry cloth or tissue paper

For field testing, a controlled water spray test is normally sufficient.

IP55 waterproof testing video for cabinet air conditioner

Step-by-Step IP55 Waterproof Test

Step 1: Spray Water from Multiple Directions

Spray water toward:

• Cabinet doors

• Side panels

• Roof joints

• Cable entries

• Air conditioner mounting area

Recommended test conditions:

• Distance: 2.5–3 meters

• Duration: minimum 3 minutes

• Moderate water jet pressure

The spray should simulate heavy outdoor rain conditions.

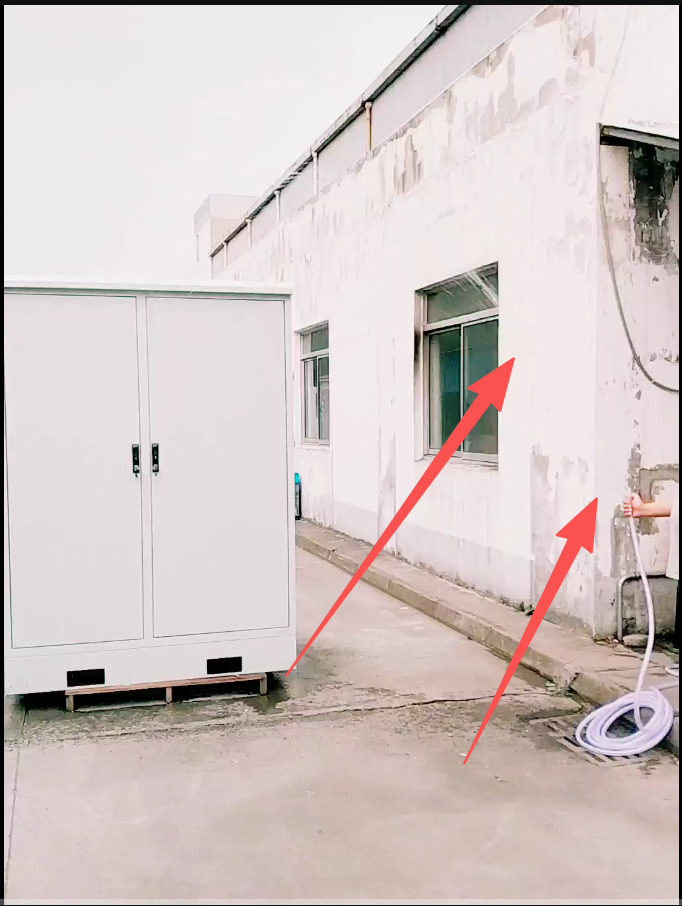

                                                         2.5-3 meters distance

Step 2: Focus on the Cabinet Air Conditioner Area

This is the most critical part of the test.

Carefully spray around:

• The AC frame edges

• Upper sealing areas

• Side mounting joints

• Bottom drainage area

Pay special attention to:

• Screw positions

• Foam gasket compression

• AC electrical connection areas

Do not spray directly into open ventilation outlets at extremely close range, as this does not represent normal outdoor conditions.

Step 3: Inspect the Internal Side of the Air Conditioner

After spraying:

1. Stop the water test

2. Dry the external surfaces

3. Open the cabinet door

Inspect the area behind the air conditioner carefully.

Check for:

• Water droplets

• Moisture near the AC mounting cutout

• Leakage around screws

• Water traces near electrical components

What Is Considered a Successful IP55 Waterproof Test?

The cabinet passes the test if:

• No water reaches internal electrical equipment

• No continuous leakage appears around the AC mounting area

• Drainage functions normally

• Internal surfaces remain dry

A properly installed cabinet air conditioner should prevent rainwater from entering the cabinet under standard IP55 conditions.

Common Causes of Water Leakage Around Cabinet Air Conditioners

Common Water Leakage Points in Outdoor Cabinets

Most leakage issues occur at:

• Cabinet door gasket

• Air conditioner mounting frame

• Cable entry glands

• Roof panel joints

• Drainage outlet blockage

Can You Test IP55 After Installation?

Yes. In fact, it is recommended to perform a field IP55 test after installation to confirm sealing integrity, especially after transportation or on-site assembly.

Important Notes for Cabinets with Air Conditioners

• Do NOT use high-pressure washers

• Do NOT spray directly into ventilation outlets at close range

• Always simulate natural rain conditions

• Ensure AC gasket is evenly compressed before testing

Conclusion

IP55 waterproof testing is essential for outdoor cabinets, especially those equipped with air conditioners.

A proper test verifies that both the cabinet enclosure and the AC installation area are fully sealed against rain and dust, ensuring long-term safe operation in outdoor environments.

If correctly designed and installed, an IP55 outdoor cabinet with an air conditioner can operate reliably even under heavy rain and harsh weather conditions.
