8kw /40KWH
Cytech
Battery, Integrated
IP 55, IP 65
Floor Mount
1500W/5100BTU, 3000W/10200BTU
19inch, 23inch
42U
Video & Download
Product Overview

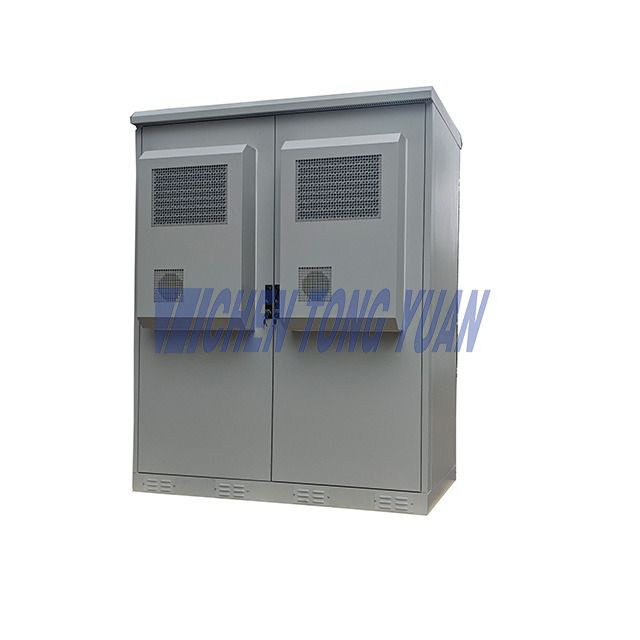

Looking for an outdoor battery storage cabinet that allows you to choose your own inverter and lithium batteries?
Cytech offers a customizable 8kW / 40kWh battery storage cabinet designed for energy storage integrators, solar companies, battery suppliers and OEM customers who want greater flexibility in system configuration.
Instead of purchasing a complete energy storage system from one supplier, you can source your preferred inverter and battery modules separately. Cytech provides the customized metal cabinet, temperature control and agreed internal wiring and connection services to help bring your energy storage project together.

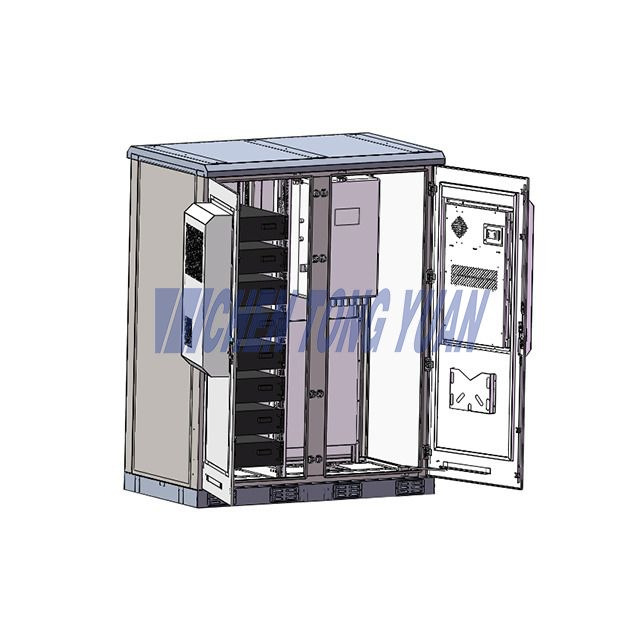

The cabinet can be configured around an 8kW Deye hybrid inverter and eight lithium battery modules, each with an approximate 5kWh nominal energy rating, subject to equipment compatibility and final design confirmation.
Parameter | Specification |
|---|---|
Product | Temperature-Controlled Battery Storage Cabinet |
Reference Power Configuration | 8kW |
Target Nominal Battery Energy | Approximately 40kWh |
Inverter | Customer-supplied compatible 8kW inverter; Deye as reference |
Battery Configuration | 8 lithium battery modules, approximately 5kWh each |
Battery Voltage | To be confirmed against the selected battery and inverter |
Cabinet Material | Galvanized Steel,Stainless Steel ,Aluminium |
Lighting system: | Door sensor+48V LED light |
Groungding busbar | 200A Copper bar[13 point M6 and 2 point M8] |

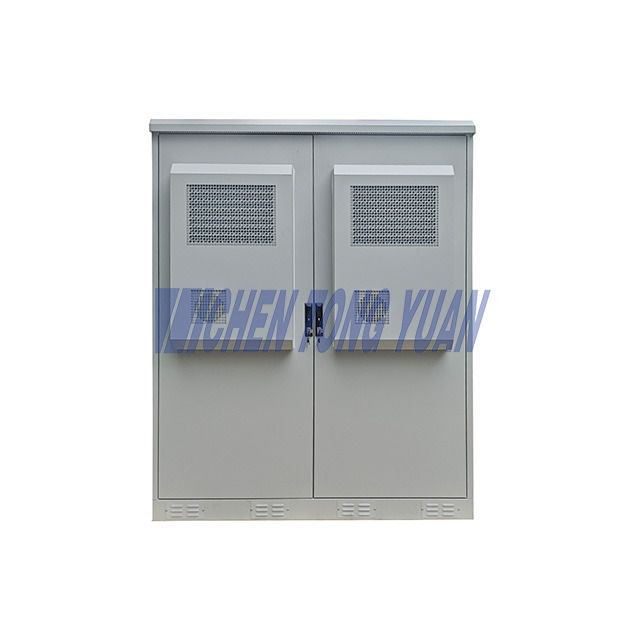

Cooling Method | Compression Air Conditioner on the door |
Cooling Capacity | 3000W/10200BTU |
Power Supply | 220V50HZ /DC48V |
Internal Wiring | Available according to the agreed project scope |

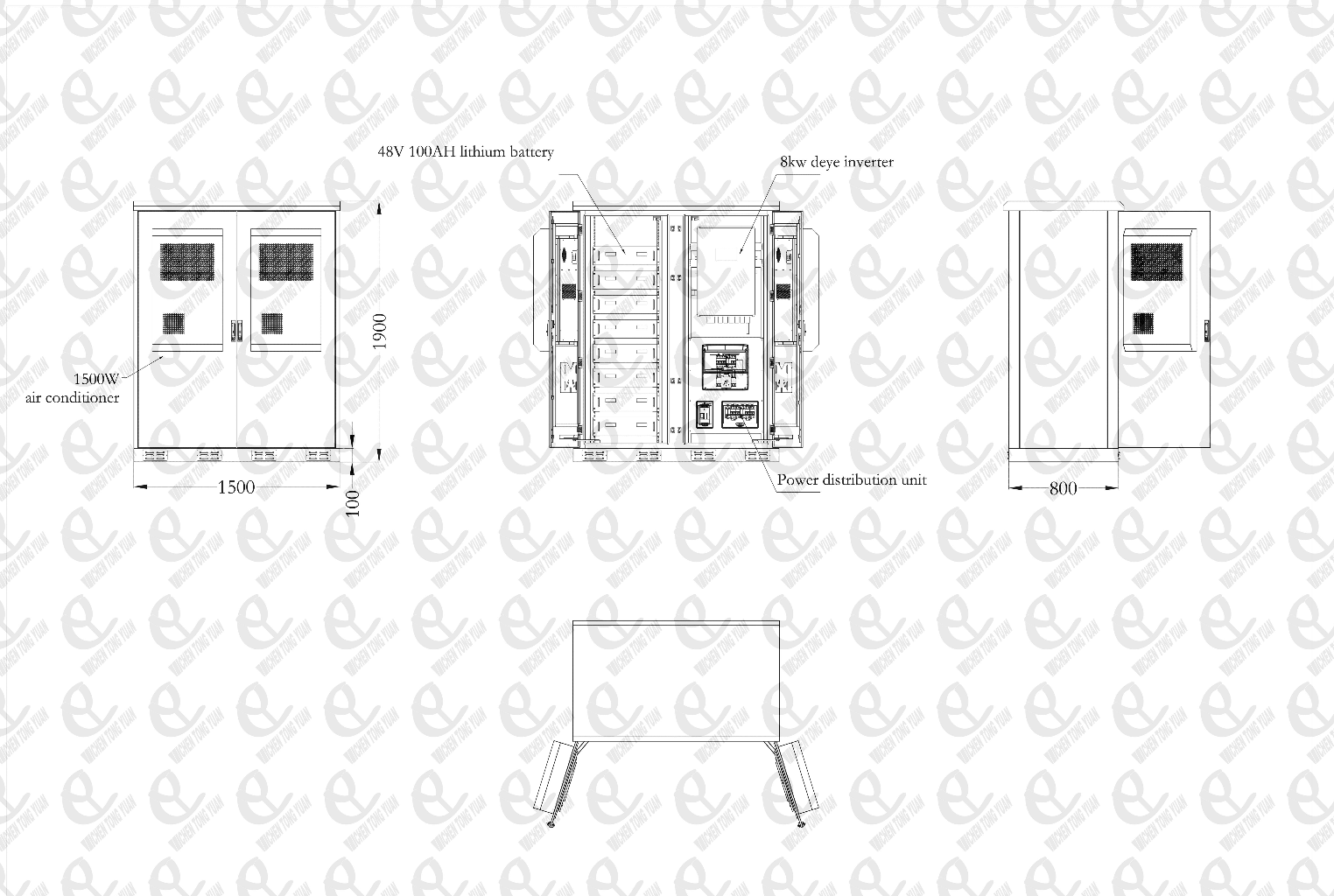

Cabinet Dimensions | H*W*D=1900*1500*800mm |
IP Rating | IP55/IP65 |
Installation | Floor Mount |
Color | RAL7035 |
Working temperature | - 40 ℃ ~ + 55 ℃ |
Working Humidity | ≤ 95% (+ 40 ℃) |
Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
The above describes the intended reference configuration. Final specifications depend on the selected battery and inverter models, cabinet design and project requirements. The cabinet is not supplied as a complete battery energy storage system unless explicitly agreed in the quotation.
8kW / 40kWh configuration: Designed around an 8kW inverter and a nominal 40kWh battery configuration.
Customer-selected components: Use compatible batteries and an inverter sourced according to your project requirements.
Temperature-controlled cabinet: Integrates a suitable thermal management solution for the intended operating environment.

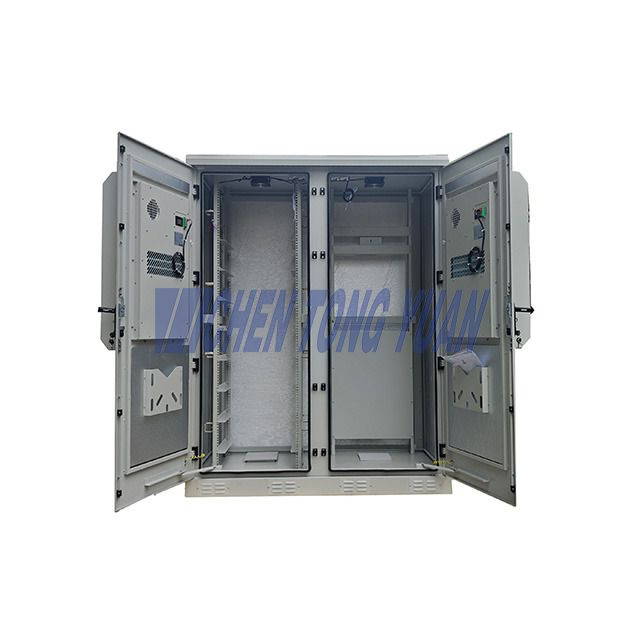

Customized sheet metal structure: Cabinet dimensions, internal mounting arrangements and compartment layouts can be tailored to the selected equipment.
Internal wiring support: Wiring and component connections can be provided according to the agreed technical scope.
OEM customization: Suitable for energy storage companies, solar installers, system integrators and private-label product developers.

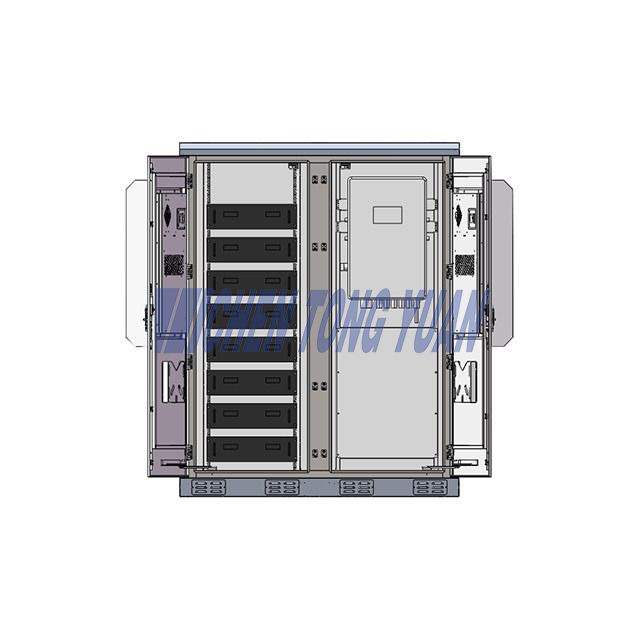

The reference configuration uses an 8kW Deye hybrid inverter and eight lithium battery modules.
Each battery module is expected to provide approximately 5kWh of nominal energy, giving a target system capacity of around 40kWh.
The final battery model, nominal voltage, usable energy, inverter model and battery communication requirements must be confirmed before production.
Customers may also request a customized cabinet layout for alternative compatible inverter and battery brands.
Options
Battery performance and service life are influenced by operating temperature. The enclosure should therefore be designed around the environmental conditions and operating limits of the selected battery system.
Cytech can integrate a suitable cabinet temperature-control solution according to the project requirements.
Depending on the final configuration, the design can accommodate a cabinet air conditioner or another appropriate thermal management solution.
The cooling capacity, operating temperature range, airflow arrangement and controller settings should be selected according to the battery manufacturer's requirements, expected heat load and installation environment.
For outdoor applications, the cabinet design can also consider weather protection, sealing, corrosion resistance and maintenance access.
Option 1 | |
Option 2 | |
Option 3 | |
Option 4 | |
Option 5 |
Option 1 | |
Option 2 | |
Option 3 |
Application
This product is particularly suitable for:
1.Energy storage system integrators
Companies that purchase batteries and inverters independently and need a customized cabinet solution for their own systems.
2.Solar installation companies
Businesses developing solar-plus-storage solutions that need an organized, temperature-controlled enclosure for compatible energy storage equipment.
3.Battery distributors and suppliers
Companies that want to combine their own battery products with a professionally manufactured cabinet.
4.OEM and private-label brands
Businesses that require customized sheet metal enclosures for their own energy storage products.
Not every energy storage customer wants to purchase a complete system from a single supplier.
Some companies already have established battery suppliers, preferred inverter brands or their own electrical system designs. What they need is a professionally manufactured cabinet that accommodates these components and provides appropriate environmental and thermal management.
Cytech's 8kW / 40kWh battery storage cabinet is developed around this approach.
You can select your battery modules and inverter, provide the relevant dimensions and technical documentation, and work with Cytech to define the cabinet layout, cooling arrangement, cable routing and internal connections.
This approach offers greater flexibility for companies developing their own energy storage products or assembling systems for local markets.
Advantages&Why?
Cytech combines sheet metal cabinet manufacturing with experience in outdoor enclosures and cabinet thermal management.
Rather than offering only an empty metal box, we can work with customers to define a practical cabinet solution that accommodates their selected equipment.
Our scope can include customized cabinet fabrication, thermal management integration, mounting structures, cable routing and agreed internal wiring services.
Whether you already have a complete equipment design or are still developing your energy storage product, Cytech can discuss the enclosure requirements and manufacturing options with your team.
Cytech specializes in customized sheet metal cabinets and outdoor enclosures for energy storage, telecommunications and industrial applications.
For this battery storage cabinet, customization can include:
Overall cabinet dimensions and structural design
Battery mounting arrangements and internal supports
Inverter mounting position
Internal partitions and equipment access
Cable routing and entry points
Grounding provisions
Surface treatment and cabinet color
Thermal management equipment integration
Electrical wiring and connection services within the agreed scope
The cabinet can be developed according to customer drawings, 3D models or equipment specifications.
Before production, Cytech can review the proposed layout and confirm the required mounting space, cable clearances, service access and integration interfaces.
Have your own batteries and inverter? Let Cytech help you build the cabinet around them.
Send us your inverter model, battery datasheets, equipment dimensions and project requirements. We can review the proposed configuration and discuss the cabinet structure, temperature control, wiring scope and manufacturing details.
Contact Cytech today to discuss your customized 8kW / 40kWh battery storage cabinet.
