As telecom networks continue to expand, operators are managing thousands of outdoor telecom cabinets, base stations, and edge computing sites spread across wide geographic areas. Sending engineers to every site for routine inspections is both time-consuming and expensive.
To improve operational efficiency, most telecom operators rely on SNMP (Simple Network Management Protocol) for remote monitoring and management.
One of the most common questions equipment manufacturers receive from customers is:
"Can you provide the MIB file or MIB address?"
If you've ever wondered what a MIB address is, why it's important, or how it enables remote monitoring, this guide will explain everything you need to know.

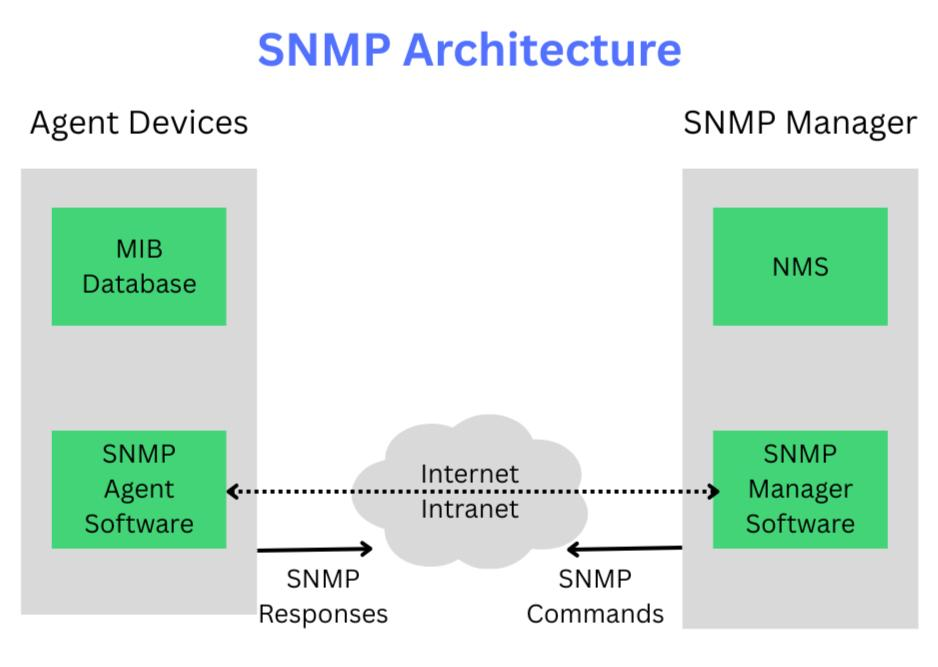

SNMP (Simple Network Management Protocol) is a standard communication protocol used to monitor and manage network-connected devices.
It enables operators to remotely collect operational data, receive alarms, and monitor equipment health without visiting the installation site.
Today, SNMP is widely used in:
Outdoor telecom cabinets
Telecom base stations
Fiber optic networks
Data centers
Industrial automation systems
Battery energy storage systems (BESS)
Smart power distribution systems
Instead of manually checking equipment, SNMP continuously sends operational data to a centralized Network Management System (NMS).
MIB stands for Management Information Base.
A MIB is essentially a database that describes every parameter a device can report through SNMP.
Think of it as a dictionary between your equipment and your monitoring software.
Without a MIB file, the monitoring platform only sees numerical identifiers.
With a MIB file, those numbers become meaningful information such as:
Cabinet Temperature
Door Status
Air Conditioner Running Status
Battery Voltage
Smoke Alarm
Water Leakage Alarm
Many engineers use the term "MIB address", but the correct technical term is an OID (Object Identifier).
Every measurable parameter inside a device has its own unique OID.
For example:
Monitoring Parameter | Example OID |
|---|---|
Cabinet Temperature | |
Indoor Humidity | |
Door Open Alarm | |
Air Conditioner Status | |
Compressor Current | |
Battery Voltage |
Each OID acts like a unique address pointing to one specific piece of information.
When integrating equipment into an existing NMS platform, customers need the MIB file so their software can correctly interpret the SNMP data.
Without the MIB file:
OIDs appear only as long numerical strings.
Alarm names cannot be displayed correctly.
Engineers must manually decode every parameter.
With the MIB file:
Temperature values display correctly.
Door alarms are clearly identified.
Power alarms become readable.
Equipment status is shown in real time.
Alarm notifications are easier to understand.
For telecom operators managing hundreds or thousands of sites, this significantly simplifies maintenance.

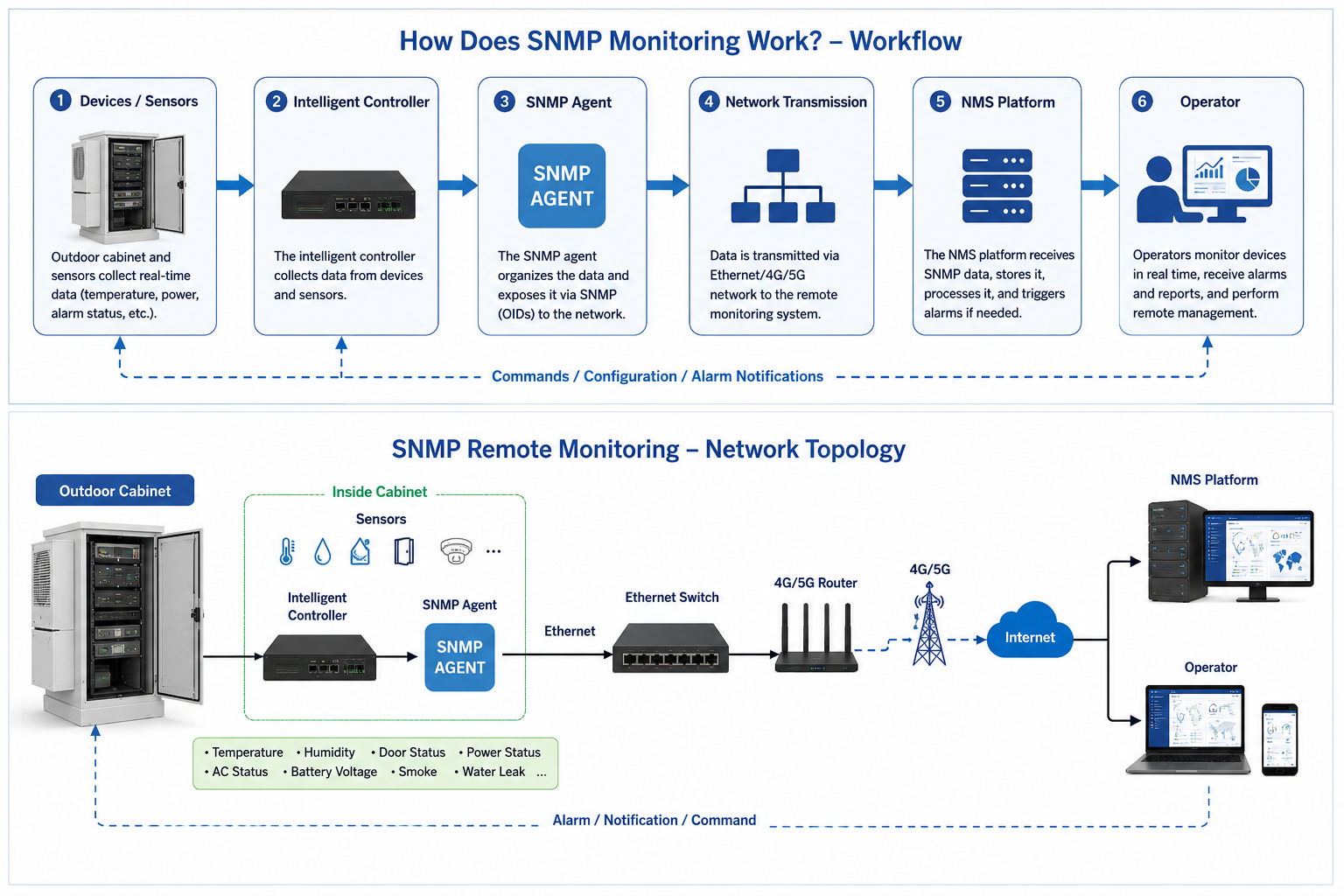

SNMP monitoring follows a straightforward communication process.
Various sensors and intelligent devices installed inside the outdoor cabinet continuously monitor operating conditions, including:
Temperature
Humidity
Door status
Smoke detection
Water leakage
Battery voltage
Power status
Air conditioner operation

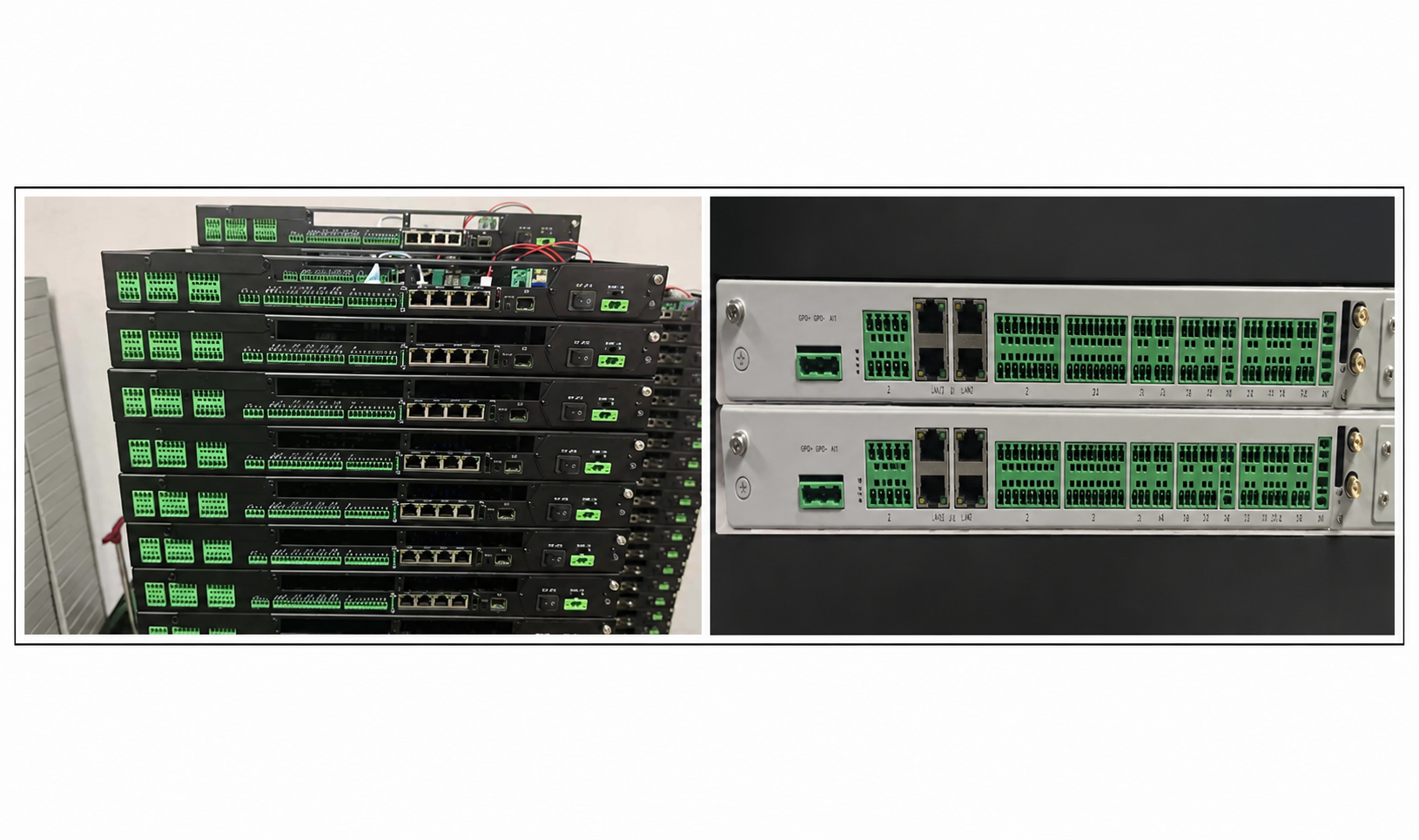

The intelligent controller gathers data from all connected devices and sensors.
It serves as the central management unit inside the cabinet.
The built-in SNMP Agent converts collected information into standardized SNMP objects.
Each parameter is assigned its own Object Identifier (OID).
The controller sends SNMP data through:
Ethernet
Industrial Ethernet Switch
4G Router
5G Router
Fiber Network
The data is securely transmitted over the Internet to the monitoring center.
The Network Management System continuously polls the SNMP Agent and receives:
Real-time measurements
Device status
Alarm notifications
Historical records
Trend analysis

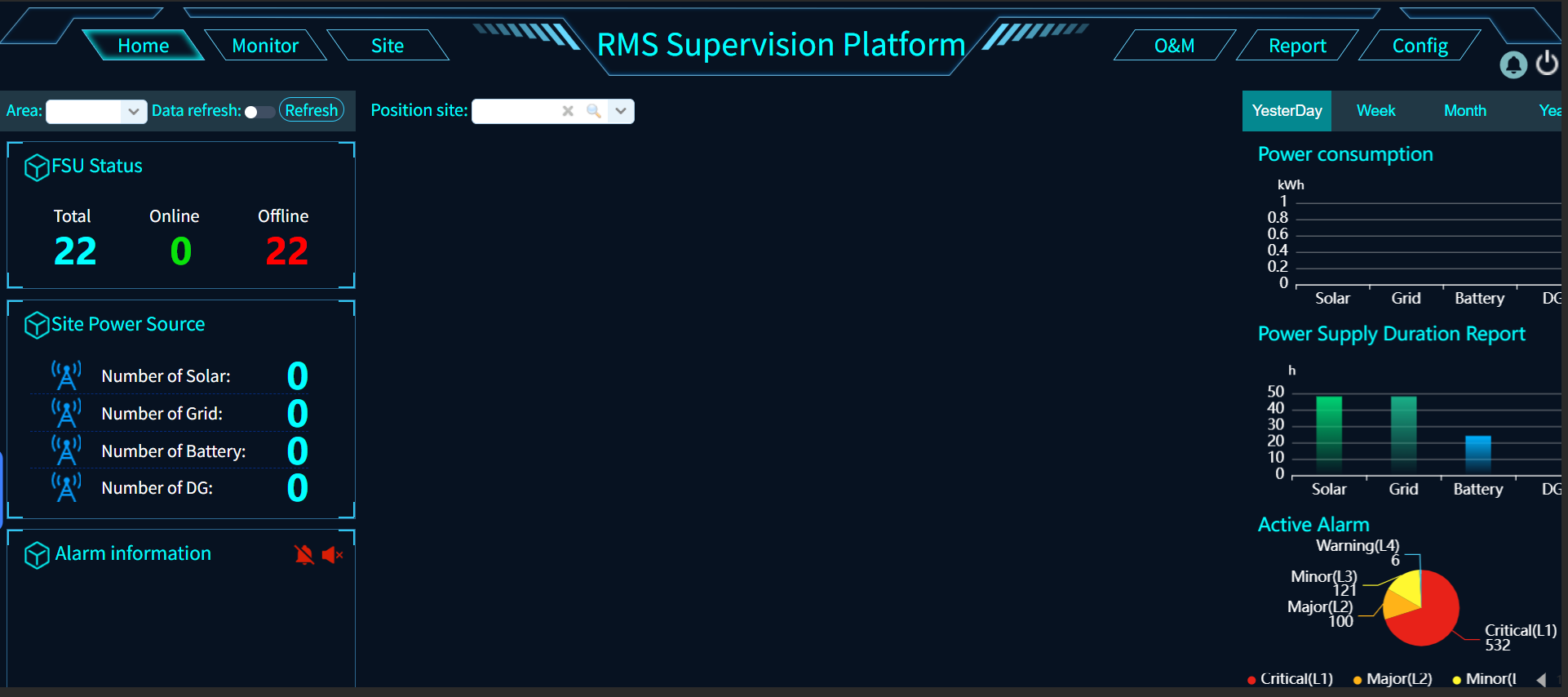

Network operators can remotely:
Monitor cabinet temperature
View battery status
Check cooling performance
Receive alarm notifications
Generate maintenance reports
Diagnose equipment remotely
This greatly reduces on-site maintenance costs while improving network reliability.
Demo Video

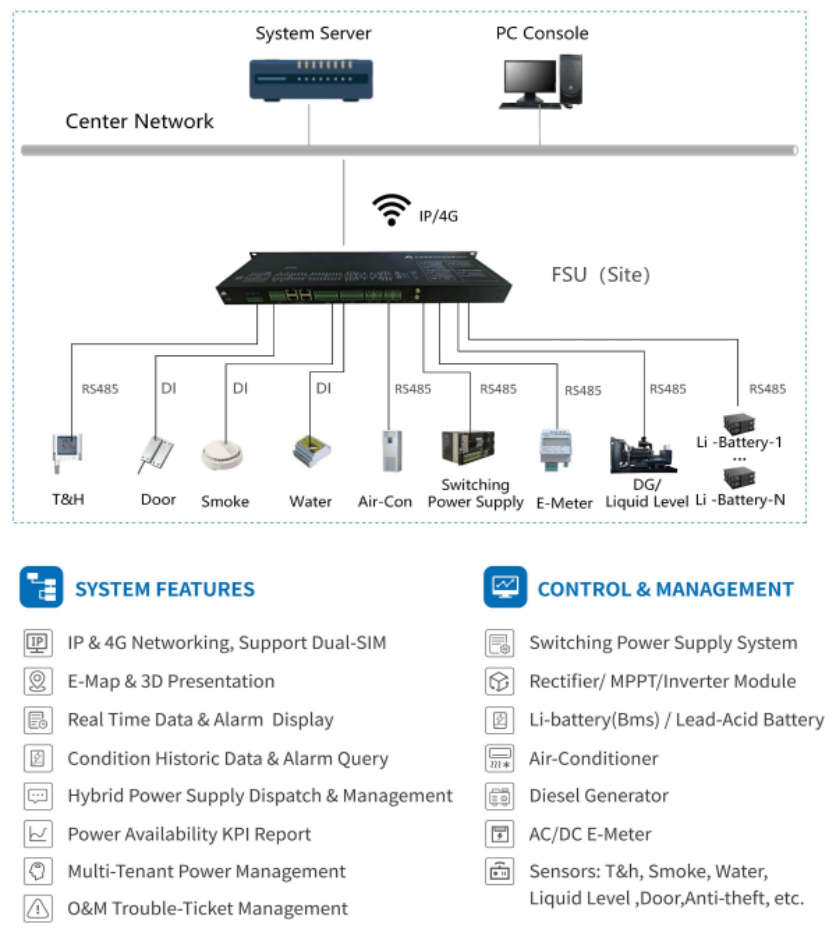

A typical outdoor telecom monitoring architecture looks like this:
Outdoor Telecom Cabinet
▼
Intelligent Controller
▼
SNMP Agent
▼
Ethernet Switch
▼
4G / 5G Router
▼
Internet
▼
Network Management System (NMS)
▼
Operator PC / Mobile Device
In this architecture, the intelligent controller collects data from all sensors, while the SNMP Agent exposes that information to the Network Management System using standardized OIDs.
Modern intelligent outdoor telecom cabinets can monitor hundreds of parameters.
Cabinet temperature
Outdoor temperature
Humidity
Smoke detector
Water leakage
Flood sensor
Ambient temperature
Door open alarm
Door lock status
Unauthorized access
Cabinet lighting
Vibration alarm
Air conditioner status
Compressor operation
Condenser fan speed
Evaporator fan speed
Cooling mode
Heating mode
High temperature alarm
Air conditioner fault codes
AC input voltage
DC output voltage
Battery voltage
Battery current
Battery capacity
Rectifier status
Power failure alarm
There are three commonly used SNMP versions.
Version | Features | Security |
|---|---|---|
SNMP v1 | Basic monitoring | Low |
SNMP v2c | Improved performance | Medium |
SNMP v3 | Authentication & Encryption | High |
For modern telecom infrastructure, SNMP v3 is highly recommended because it provides authentication, encryption, and secure communication.
Implementing SNMP monitoring offers several advantages:
24/7 real-time monitoring
Faster fault detection
Reduced maintenance costs
Improved network reliability
Centralized equipment management
Historical data recording
Predictive maintenance
Easy integration with third-party NMS platforms
For operators managing large telecom networks, these benefits translate into lower operational expenses and higher service availability.
Imagine an outdoor telecom cabinet installed beside a highway.
The cabinet contains:
Fiber optic transmission equipment
48V rectifier
Backup batteries
Intelligent controller
Enclosure air conditioner
Environmental sensors
Using SNMP, the NMS platform continuously monitors:
Cabinet temperature
Battery voltage
Door open alarms
Air conditioner operating status
AC power failures
Smoke alarms
Water leakage
High-temperature warnings
If the cabinet temperature exceeds the configured threshold, the SNMP Agent immediately generates an alarm. The NMS platform receives the notification in real time, allowing operators to investigate the issue before equipment overheats or service is interrupted.
No.
An IP address identifies the network location of a device, while a MIB address (OID) identifies a specific monitoring parameter within that device.
Yes.
A single intelligent controller may expose hundreds or even thousands of OIDs, with each OID representing a unique measurement, status, or alarm.
The MIB file enables the NMS platform to translate numerical OIDs into human-readable parameter names, making monitoring and alarm management much easier.
Yes.
Modern enclosure air conditioners with intelligent controllers can report operating status, internal temperature, compressor status, fan speed, fault alarms, and other parameters through SNMP.
A MIB address, more accurately known as an Object Identifier (OID), is the foundation of SNMP-based remote monitoring. It enables every sensor, controller, and intelligent device inside an outdoor telecom cabinet to communicate valuable operating data to a centralized Network Management System.
By combining intelligent controllers, SNMP agents, Ethernet or 4G/5G connectivity, and a powerful NMS platform, telecom operators can monitor temperatures, power systems, cooling equipment, batteries, and alarms in real time. This not only reduces maintenance costs and speeds up fault response but also improves the overall reliability and availability of critical network infrastructure.
If your outdoor telecom cabinets, enclosure air conditioners, or power systems support SNMP v3, standardized MIB files, and comprehensive OID documentation, integration with third-party NMS platforms becomes faster, simpler, and more secure—making remote infrastructure management more efficient than ever.
