Modern telecom infrastructure demands high reliability, energy efficiency, and compact design, especially for outdoor and edge deployments. At the heart of these systems lies a critical component: the Embedded Switch Mode Power Supply (SMPS).
Whether supporting 4G/5G base stations, fiber networks, or remote communication nodes, embedded SMPS units ensure that all equipment inside a telecom cabinet receives stable and efficient power.
In this article, we explore what an embedded SMPS is, how it works, and why it is essential in telecom cabinet applications.
General Working Principle：

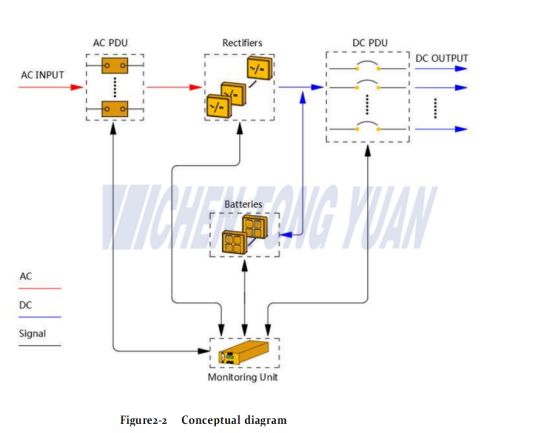

Figure2-2 shows the conceptual diagram. AC power enters rectifiers through the AC power distribution unit (PDU). The rectifiers convert the AC power input into -48Vdc power output, which is directed by the DC PDU to DC loads along different routes.
When the AC power is normal, rectifiers power DC loads and charge batteries. When the AC power is absent,rectifiers stop working and batteries start to power loads. After the AC power resumes, rectifiers power DC loads and charge batteries again. The controlling unit controllers the running state of each component of the power supply system in real time, and carries out the corresponding intelligent control. When detecting a fault, the controller generates an alarm. At the same time, the controllering unit controls and regulates the temperature control unit according to the temperature controllered by the sensor, so that the temperature in the cabinet is kept within the range required.

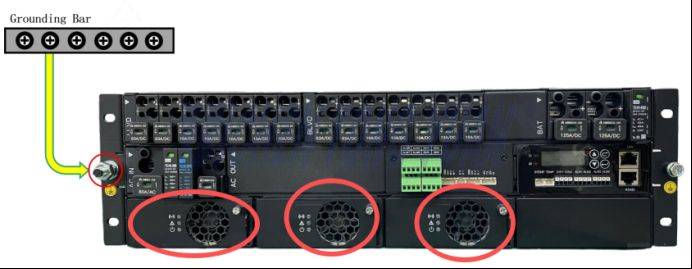

An Embedded Switch Mode Power Supply (SMPS) is a power conversion device integrated directly into a telecom cabinet or enclosure. Its primary function is to convert incoming electrical power into regulated DC voltage suitable for telecom equipment.
Unlike traditional linear power supplies, SMPS technology uses high-frequency switching to achieve:
Higher efficiency
Smaller size
Lower heat generation
In telecom systems, the most common output is -48V DC, which is the industry standard for communication equipment.
Telecom cabinets—especially outdoor ones—operate in harsh and space-constrained environments. These systems must:
Run continuously (24/7 operation)
Handle unstable grid power
Support backup systems
Maintain thermal balance
An embedded SMPS is specifically designed to meet these challenges by combining power conversion, control, and protection into a compact module.
The primary function is converting input power:
Input: 110V / 220V AC (or wider ranges)
Output: Typically -48V DC, 24V DC, or 12V DC
This ensures compatibility with telecom loads such as:
Baseband Units (BBU)
Remote Radio Units (RRU)
Network switches
Embedded SMPS systems distribute power to multiple subsystems inside the cabinet:
Rectifier modules
Transmission equipment
Cooling systems (fans, air conditioners)
Monitoring and control units
This centralized power architecture improves system organization and reliability.
Telecom equipment is highly sensitive to voltage fluctuations. The SMPS ensures:
Stable output voltage
Minimal ripple and noise
Consistent performance under load variations
Even when grid power fluctuates, the system maintains steady operation.
Efficiency is a major advantage of SMPS technology:
Typical efficiency: 85%–95%
Reduced energy loss
Lower operational costs
High efficiency also means less heat generation, which directly reduces cooling requirements
Embedded SMPS units include multiple safety features:
Over-voltage protection (OVP)
Over-current protection (OCP)
Short-circuit protection
Over-temperature protection
These protections prevent damage to both the power system and connected equipment.
A key function in telecom cabinets is ensuring uninterrupted operation.
Embedded SMPS works with:
Lithium-ion batteries
Lead-acid batteries
Energy Management Systems (EMS)
During power outages:
The SMPS seamlessly switches to battery supply
Critical loads remain operational

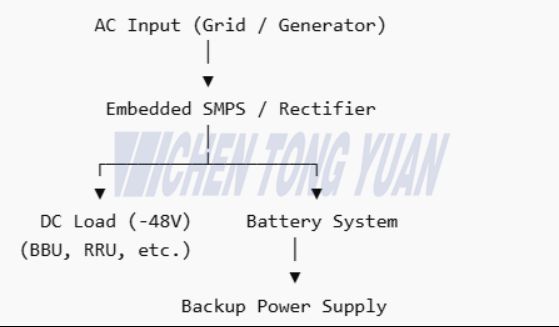

Power Flow in Telecom Cabinet：
Explanation:
AC power is converted to DC by the SMPS
DC power feeds telecom equipment
Batteries are charged simultaneously
During outages, batteries supply power

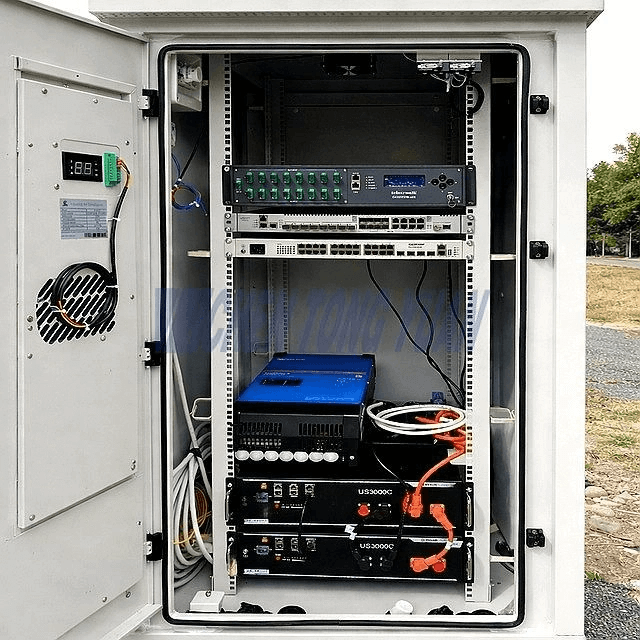

Telecom cabinets often have limited internal space. Embedded SMPS units are:
Modular
Rack-mounted or integrated
Optimized for high power density
Designed for mission-critical applications, SMPS systems offer:
Long lifespan
Stable performance in extreme temperatures
Low failure rates

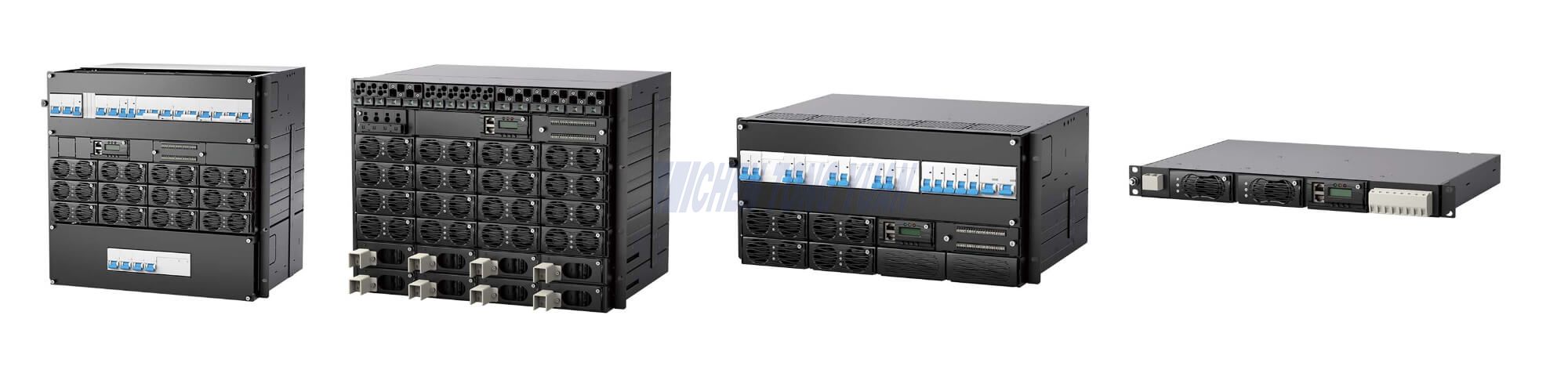

Modern embedded SMPS systems support modular expansion:
Add rectifier modules as load increases
Flexible capacity design
This is ideal for growing telecom networks.
6.4 Remote Monitoring and Smart Control
Advanced systems support:
Remote monitoring (via EMS)
Real-time data logging
Alarm notifications
This enables predictive maintenance and reduces downtime
Power systems generate heat, especially in enclosed outdoor cabinets.
Embedded SMPS contributes to thermal management by:
Operating efficiently (less heat loss)
Supporting intelligent cooling control
Integrating with cabinet cooling systems
Thermal Flow：
Embedded SMPS is widely used in:
Base stations
5G small cells
Rural communication sites
Fiber optic networks
Edge computing cabinets
Solar + grid telecom systems
Off-grid communication sites
| Feature | Embedded SMPS | Linear Power Supply |
| Efficiency | High (85–95%) | Low (40–60%) |
| Size | Compact | Bulky |
| Heat | Low | High |
| Reliability | High | Moderate |
| Application | Telecom, IT | Basic electronics |
When choosing an embedded SMPS for telecom cabinets, consider:
Output voltage and power capacity
Efficiency rating
Operating temperature range
Protection features
Compatibility with battery systems
Remote monitoring capability
The telecom power industry is evolving rapidly. Key trends include:
Higher efficiency (>96%) designs
Integration with renewable energy (solar, wind)
AI-based energy management systems
Compact high-density power modules
These advancements make embedded SMPS even more critical in next-generation telecom infrastructure.
The Embedded Switch Mode Power Supply (SMPS) is a foundational component in telecom cabinets, ensuring stable, efficient, and reliable power delivery.
From power conversion and distribution to backup integration and system protection, embedded SMPS plays a central role in maintaining uninterrupted telecom operations.
As telecom networks expand—especially with 5G and edge computing—the importance of efficient and intelligent power systems will only continue to grow.
Here are 10 SEO-friendly FAQs about Switching Mode Power Supply (SMPS) that you can use for your blog:
A Switching Mode Power Supply (SMPS) is an electronic power supply that uses high-frequency switching regulators to efficiently convert electrical power from one form to another (AC to DC or DC to DC).
An SMPS works by rapidly switching the input voltage on and off, then using inductors, transformers, and capacitors to regulate and stabilize the output voltage with high efficiency.
SMPS offers higher efficiency, smaller size, lighter weight, wider input voltage range, and less heat generation compared to traditional linear power supplies.
SMPS units are widely used in telecom equipment, industrial automation, data centers, consumer electronics, LED lighting, and embedded systems such as communication cabinets.
Common types include AC-DC SMPS, DC-DC converters, isolated and non-isolated power supplies, and topologies like flyback, forward, buck, and boost converters.
High efficiency reduces energy loss, minimizes heat generation, improves system reliability, and lowers operating costs—especially critical in telecom and data center applications.
Isolated SMPS uses a transformer to separate input and output for safety and noise reduction, while non-isolated SMPS directly converts voltage without electrical isolation.
In telecom cabinets, SMPS provides stable DC power for base stations, routers, cooling systems, and backup batteries, ensuring continuous operation of communication networks.
Key factors include input/output voltage, power rating, efficiency, cooling method, protection features, reliability, and environmental conditions.
SMPS uses heat sinks, cooling fans, and thermal protection circuits to manage heat, ensuring stable performance and preventing overheating in demanding environments.
