NEMA enclosures are protective casings designed to safeguard electrical components, instruments, and equipment from environmental hazards. These enclosures are crucial for ensuring the proper functioning and longevity of sensitive electronics in various settings. Let's delve deeper into what NEMA enclosures are, their types, applications, and more.
NEMA stands for National Electrical Manufacturers Association, an organization that sets industry standards for electrical equipment. NEMA enclosures are built to meet specific criteria regarding protection against elements such as water, dust, oil, and corrosive substances. They come in various sizes, shapes, and materials to suit different applications.
NEMA enclosures play a vital role in protecting electrical components from damage caused by environmental factors. Without proper protection, exposure to moisture, dust, or extreme temperatures can lead to malfunctions, corrosion, or even safety hazards. Therefore, NEMA enclosures are essential for ensuring the reliability and safety of electronic equipment.
NEMA ratings classify enclosures based on their ability to withstand specific environmental conditions. Ratings range from NEMA 1 (minimal protection) to NEMA 13 (high protection against oil and water). Each rating indicates the enclosure's suitability for different environments and applications.
Nema Enclosures designs and manufactures NEMA rated electrical enclosures in the following NEMA standards:
NEMA 1
Indoor use to provide a degree of protection to personnel against access to hazardous parts
To provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt)
Indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts
To provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust)
To provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow)
And that will be undamaged by the external formation of ice on the enclosure
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts
To provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt)
To provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow)
And that will be undamaged by the external formation of ice on the enclosure
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts.
To provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt)
To provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); that will be undamaged by the external formation of ice on the enclosure
NEMA 3RX enclosures are designed with the same corrosion resistance as NEMA 4X, but since they are not required to be dust tight, louvers and other ventilation options can be added.
Indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts
To provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust)
To provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water)
And that will be undamaged by the external formation of ice on the enclosure
Indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts
To provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust)
To provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water)
That provides an additional level of protection against corrosion
And that will be undamaged by the external formation of ice on the enclosure
Constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts
To provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings)
And to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing)
NEMA enclosures are typically constructed from materials such as stainless steel, aluminum, or fiberglass, depending on the application requirements. These materials offer durability, corrosion resistance, and protection against environmental elements.
The design of NEMA enclosures incorporates features like gaskets, seals, and latches to provide a secure and watertight seal. Ventilation options are also available to prevent overheating while maintaining protection from dust and moisture.
NEMA enclosures are designed to withstand a wide range of environmental conditions, including:
Moisture and humidity
Dust and debris
Extreme temperatures
Corrosive substances
In industrial settings, NEMA enclosures are used to protect electrical equipment in manufacturing plants, refineries, and chemical processing facilities. They safeguard sensitive electronics from harsh conditions and ensure uninterrupted operation.
NEMA enclosures find applications in residential and commercial buildings for housing electrical panels, control systems, and communication equipment. They provide safety and protection while meeting building codes and regulations.
When selecting a NEMA enclosure, consider factors such as:
Environmental conditions
Size and dimensions of equipment
Required level of protection
Compliance with industry standards
It's essential to choose a NEMA enclosure that matches the specific environmental conditions of the installation site. Whether it's indoor, outdoor, wet, or corrosive environments, selecting the right NEMA rating ensures optimal protection for the equipment.
Follow manufacturer guidelines and industry best practices for installing NEMA enclosures to ensure a secure and effective installation. Proper mounting, sealing, and grounding are critical for maximizing protection and longevity.
Regular inspection and maintenance help prolong the lifespan of NEMA enclosures. Periodically check for signs of damage, corrosion, or wear and tear, and address any issues promptly to prevent problems.
In the healthcare industry, NEMA enclosures protect medical equipment and devices from contamination and damage in sterile environments such as hospitals and laboratories.

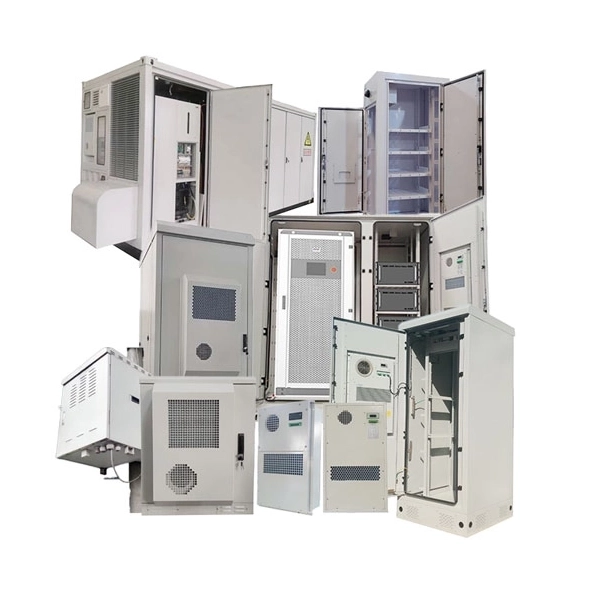

Telecommunication infrastructure relies on NEMA enclosures to house sensitive equipment like routers, switches, and power supplies, ensuring reliable communication networks. Cytech is pleased to present a wide array of outdoor communication enclosures. We offer a diverse range of standard-sized, readily available models and can tailor to any customized projects. Engineered to withstand rugged conditions, our NEMA 3R to 4X enclosures are crafted for telecommunications, aerospace, and industrial applications, capable of enduring harsh environments and extreme weather conditions.At the same time, we can custom design the outdoor telecom cabinets and enclosures of various specifications and models for you to make your ideas come true.
In the energy sector, NEMA enclosures are used to protect electrical components in power plants, substations, and renewable energy installations, safeguarding critical infrastructure from environmental hazards.
The cost of NEMA enclosures depends on factors such as:
Material and construction
Size and customization
Level of protection and certification
While NEMA enclosures may require an initial investment, their durability and protection offer long-term savings by preventing costly equipment damage, downtime, and replacements.
NEMA publishes standards and guidelines for various types of electrical equipment, including enclosures. These standards ensure quality, safety, and compatibility across different manufacturers and products.
Choose NEMA enclosures that comply with relevant standards and regulations to ensure reliability and performance. Look for certifications such as UL (Underwriters Laboratories) to verify compliance with safety and quality standards.
Technological advancements such as smart enclosures with remote monitoring capabilities and integrated sensors are shaping the future of NEMA enclosures, enhancing functionality and efficiency.
As industries evolve and new challenges arise, NEMA enclosures will continue to find innovative applications in areas such as renewable energy, IoT (Internet of Things), and smart infrastructure.
Case studies highlighting successful implementations of NEMA enclosures in various industries demonstrate their effectiveness in protecting equipment and ensuring operational reliability.
With growing concerns about environmental sustainability, manufacturers are exploring eco-friendly materials and production processes for NEMA enclosures to reduce their carbon footprint.
At the end of their lifecycle, NEMA enclosures can be recycled or disposed of responsibly to minimize environmental impact. Manufacturers and end-users should explore recycling programs and disposal options available in their region.
Dispelling common misconceptions about NEMA enclosures, such as their limited applications or unnecessary cost, helps educate consumers and promote informed decision-making.
NEMA enclosures offer numerous benefits, including:
Protection against environmental hazards
Compliance with industry standards
Durability and longevity
Despite their advantages, NEMA enclosures may have limitations such as:
Limited customization options
Higher upfront cost compared to alternatives
Compatibility issues with certain equipment
NEMA enclosures play a critical role in safeguarding electrical equipment from environmental hazards in various industries and applications. By providing protection, reliability, and compliance with industry standards, NEMA enclosures ensure the optimal performance and longevity of electronic systems. As technology advances and new challenges emerge, the importance of NEMA enclosures will continue to grow, shaping the future of electrical infrastructure.
1.What does NEMA stand for?
NEMA stands for National Electrical Manufacturers Association, an organization that sets industry standards for electrical equipment.
2. Are NEMA enclosures waterproof?
NEMA enclosures come in different ratings, some of which offer protection against water ingress. The level of waterproofing depends on the specific NEMA rating.
3. Can NEMA enclosures be used outdoors?
Yes, certain NEMA ratings, such as NEMA 3R and NEMA 4X, are suitable for outdoor use and provide protection against weather elements.
4. How do I choose the right NEMA enclosure for my application?
Consider factors such as environmental conditions, size of equipment, required level of protection, and compliance with industry standards when selecting a NEMA enclosure.
5. Do NEMA enclosures require maintenance?
Yes, regular inspection and maintenance are recommended to ensure the longevity and effectiveness of NEMA enclosures. Check for signs of damage, corrosion, or wear and tear, and address any issues promptly.
6. Can we provide NEMA enclosures for you ?
Of course, you can find NEMA rated enclosures, such as NEMA 3, NEMA 3R, NEMA 4, NEMA 4X at Cytech, a professional outdoor enclosure manufacturer from China.
