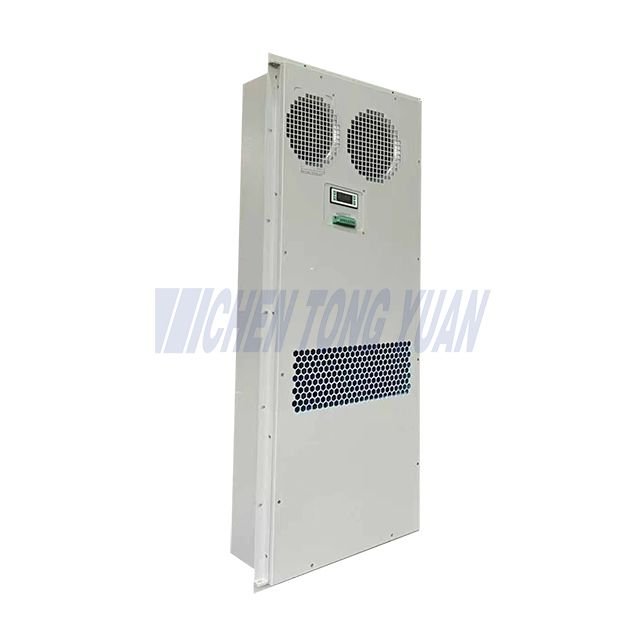

H260NA0E / H260HA0E- 260w/k
Cytech
Telecom, Battery, Integrated
IP 55, IP 65
Half-embeded Mount, Door Mount
260W/K
Product Description
The Air-to-Air Heat Exchanger 260W/K is designed for telecom cabinets and other outdoor enclosures, providing efficient, maintenance-free cooling. With a cooling capacity of 260W per Kelvin, it removes heat from inside the cabinet without drawing in outside air, keeping sensitive electronics protected from dust, moisture, and harsh environmental conditions. Ideal for reliable temperature control in telecom, industrial, and outdoor applications.
▼Example of using air to air heat exchanger on telecom cabinet▼
Closed-loop system maintains a sealed cabinet environment.
Meets global environmental standards and reduces maintenance.
Designed for unmanned, remote, and extreme-weather locations.
Low energy use + maintenance-free = significantly lower operation cost.
Air to air systems use up to 80% less energy.
Almost zero maintenance — no filters, no refrigerant leaks.
Air to air heat exchangers reduce long-term costs and improve system uptime.
The internal hot air passes through a heat exchanger core where heat is transferred to the outdoor airflow, maintaining stable internal cabinet temperature.
Completely prevents dust, moisture, insects, and pollutants from entering.
Optimized fans ensure stable airflow even in hot climates.
Available for different thermal performance requirements.
12V DC, 24V DC, 48V DC, and 230V AC options for any installation.
Name | Outdoor Cabinet air to air heat exchanger |
Model | H260NA0E / H260HA0E |
Mounting Method | Semi-embedded Mounting,Side-mount / Door-mount / Top-mount options available. |
| Power Supply | -48VDC |
| Cooling capacity | 260w/k |
| Power capacity | 450w |
| Max Noise Level | 65dB（A） |
| IP Grade | IP55 |
| Net Weight | 46kg |
| Working Temperature Range | -15℃～+65℃ Typical: -40°C to +70°C (customizable). |
| Dimensions（H*W*D） | 1300*600*230（mm） |
| Color | RAL7035 |
| Lifetime | 10 Years |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Please design and install the product according to the installation holes drawings below
Equipped with a display LED in internal side of product, can display running, alarm information and parameter
No. | Symbol | Definition | No. | Symbol | Definition |
1 | RS485+ | Communication port A+ | 9 | RTN | DC power- Positive |
2 | RS485- | Communication port B- | 10 | -48V | DC power- Negative |
3 | ALR-NC | Hardware alarming output like fans and sensors failure | 11 | PE | PE |
4 | ALR-COM | ||||
5 | ALR-NC1 | High temperature alarming output | |||
| 6 | ALR-COM1 | ||||
| 7 | I/O | Control signal input:on/off dry switch type | |||
| 8 | I/O |
Attention：
▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.
▶Install vertically and make sure the polarity of wiring is correct and firm.
▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.
▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.
Application
Our air to air heat exchangers support a wide range of industries.
Ensures stable operation of BBU, RRU, transmission equipment.
Keeps lithium-ion batteries at optimal temperature.
Protects sensitive electronics from overheating.
For fiber networks, IoT deployments, and traffic control systems.
Options
| Model | Voltage | Cooling Capacity(W/K) | Power Consumption | IP Grade | Heater (W) Optional | Internal Air flow (m3/h) | Weight(kgs) | Noise(dbA) |
| H08NA0E | 48VDC±20% | 80w/k | 70 | IP55 | 1000 | 470 | 17 | 65 |
| H12NA03 | 48VDC±20% | 120w/k | 180 | IP55 | 1000 | 620 | 32 | 69 |
| H18NA0E | 48VDC±20% | 180w/k | 330 | IP55 | 1000 | 980 | 45 | 69 |
| H26NA0E | 48VDC±20% | 260w/k | 400 | IP55 | 1000 | 1650 | 65 | 70 |
Advantage
Our products are designed specifically for outdoor telecom applications with strong cooling performance and durability.
Our heat exchanger cores use premium aluminum plates for maximum thermal conductivity.
No filters required — reducing operational cost and maintenance visits.
Resistant to dust, rain, UV, salty air (optional coating) and extreme temperatures.
Ideal for battery-powered and solar-powered telecom cabinets.
We support telecom operators, system integrators, and enclosure manufacturers worldwide.
Send us your cabinet size and cooling requirement — we will recommend the best model.
