Product Description
Our telecom cabinet heat exchanger provides efficient and stable cooling for outdoor telecom enclosures, communication base stations, wireless access cabinets, and 4G/5G outdoor equipment shelters.

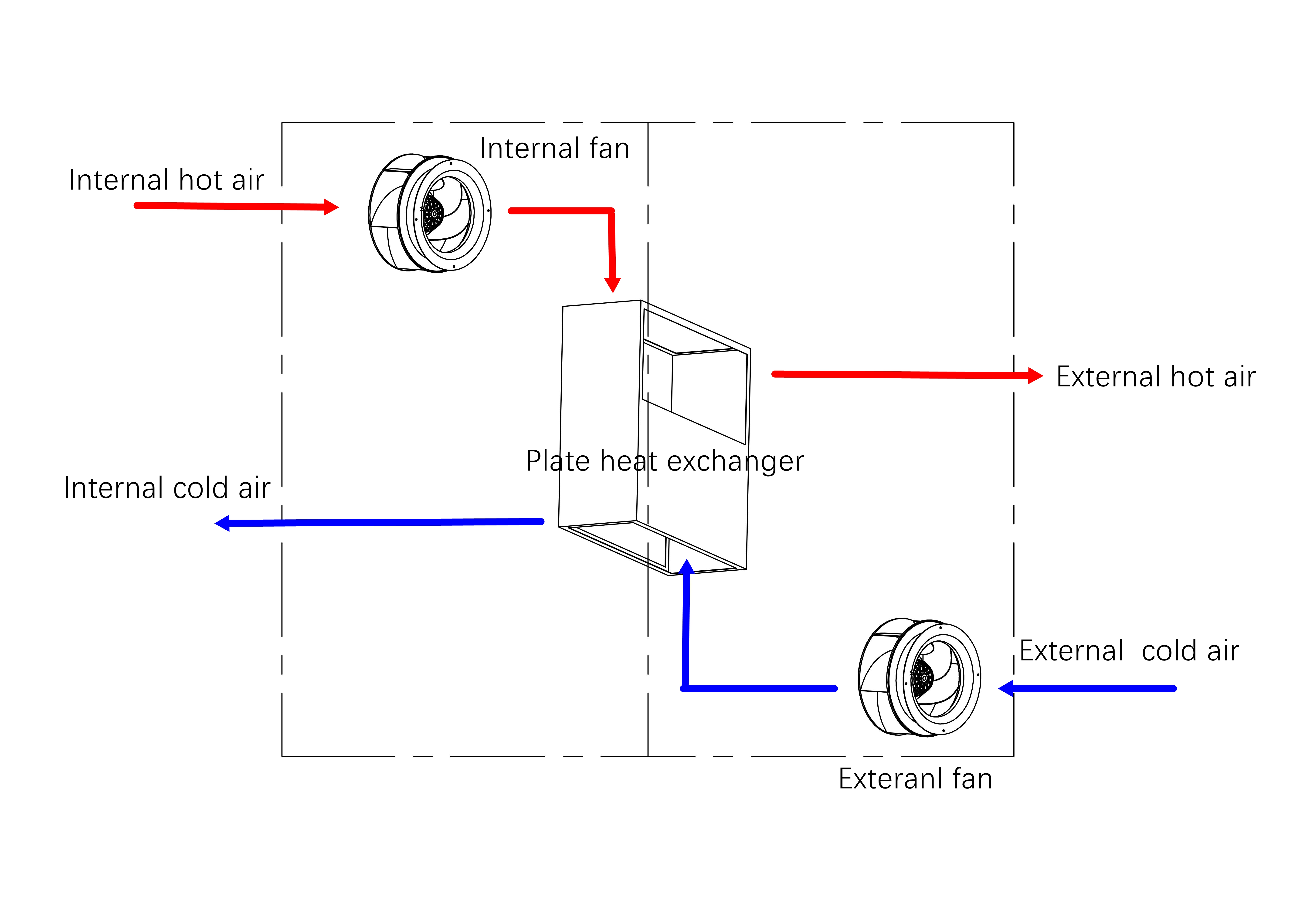

It uses air-to-air heat exchange technology to maintain internal cabinet temperature while preventing dust, moisture, and contaminants from entering the telecom cabinet.

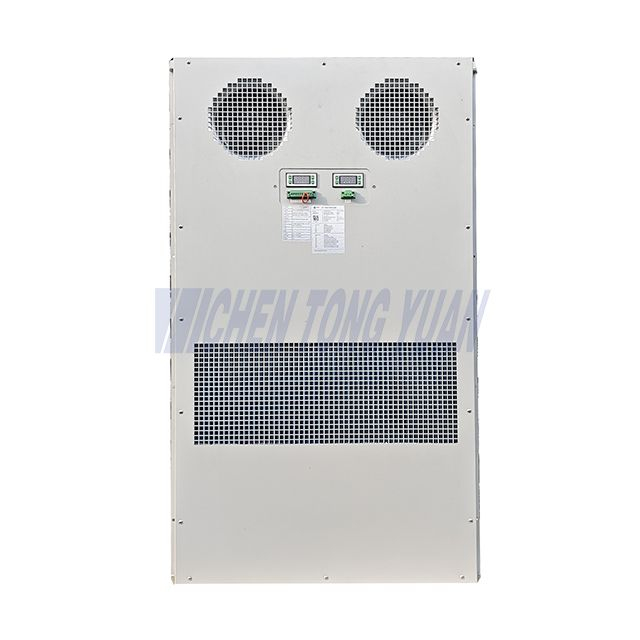

▼DC48v 325w/k dual control model air to air heat exchanger ▼
each board manages one fan (internal and external); if one fails, the other continues operating.
one channel for hardware failures (fans/sensors) and another for high-temperature alarms.
Equipped with a digital temperature controller for accurate monitoring.
Designed for harsh outdoor environments such as roadside cabinets, rooftop telecom sites, and rural communication stations.
No refrigerant, low power consumption, ideal for operators seeking lower OPEX and sustainable thermal management.
Sealed system, no filters required, reducing service time for telecom technicians.
Ensures internal equipment remains fully isolated from outdoor contaminants
80–325 W/K depending on model
Supports telecom cabinets with heat loads from 300W to 2500W
48V DC (telecom standard)
110V / 220V AC models available
Ambient temperature: −40°C to +55°C
Suitable for outdoor telecom, wireless access, FTTH, 5G micro-stations
Name | Cabinet air to air heat exchanger |
Model | H325NA0E / H325HA0E |
Mounting Method | Semi-embedded Mounting |
| Power Supply | -48VDC |
| Cooling capacity | 325w/k |
| Power capacity | 450w |
| Max Noise Level | 65dB（A） |
| IP Grade | IP55 |
| Net Weight | 54kg |
| Working Temperature Range | -15℃～+65℃ |
| Dimensions（H*W*D） | 1350*770*240（mm） |
| Color | RAL7035 |
| Lifetime | 10 Years |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Please design and install the product according to the installation holes drawings below
Equipped with a display LED in internal side of product, can display running, alarm information and parameter
No. | Symbol | Definition | No. | Symbol | Definition |
1 | RS485+ | Communication port A+ | 9 | RTN | DC power- Positive |
2 | RS485- | Communication port B- | 10 | -48V | DC power- Negative |
3 | ALR-NC | Hardware alarming output like fans and sensors failure | 11 | PE | PE |
4 | ALR-COM | ||||
5 | ALR-NC1 | High temperature alarming output | |||
| 6 | ALR-COM1 | ||||
| 7 | I/O | Control signal input:on/off dry switch type | |||
| 8 | I/O |
Attention：
▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.
▶Install vertically and make sure the polarity of wiring is correct and firm.
▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.
▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.
Application
Designed to maintain stable internal temperature for radio units, power systems, and battery modules.
Ensures long-term reliability in high-dust, high-humidity urban roadside environments.
Prevents overheating of fiber distribution frames and optical equipment.
Options
| Model | Voltage | Cooling Capacity(W/K) | Power Consumption | IP Grade | Heater (W) Optional | Internal Air flow (m3/h) | Weight(kgs) | Noise(dbA) |
| H08NA0E | 48VDC±20% | 80w/k | 70 | IP55 | 1000 | 470 | 17 | 65 |
| H12NA03 | 48VDC±20% | 120w/k | 180 | IP55 | 1000 | 620 | 32 | 69 |
| H18NA0E | 48VDC±20% | 180w/k | 330 | IP55 | 1000 | 980 | 45 | 69 |
| H26NA0E | 48VDC±20% | 260w/k | 400 | IP55 | 1000 | 1650 | 65 | 70 |
Advantage
Compliant with telecom standards (IEC, IP rating tests).
Ultra-low energy consumption design reduces long-term OPEX for telecom operators.
Anti-corrosion aluminum exchanger core, EC fans, and industrial-grade components.
Different heat loads
Different cabinet sizes (19”, 23”, hybrid telecom cabinets)
Mounting styles: door-mounted / side-mounted / top-mounted
Color / logo customization for OEM clients
We provide datasheets, CAD drawings, thermal simulation support, and project-based quotations for telecom operators, integrators, and enclosure manufacturers.
