What Does Powder Coating RAL7035 Do? The Protection for Telecom Enclosures

Views: 0     Author: Cytech     Publish Time: 2025-07-04      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

What Is Powder Coating RAL7035 In Telecommunication Enclosure Field?


What is Powder Coating?

Powder coating is an advanced dry-finishing process that applies a protective layer to metal surfaces. Unlike traditional liquid paint, it uses an electrostatically charged powder that bonds to the metal and is then heat-cured for maximum durability.

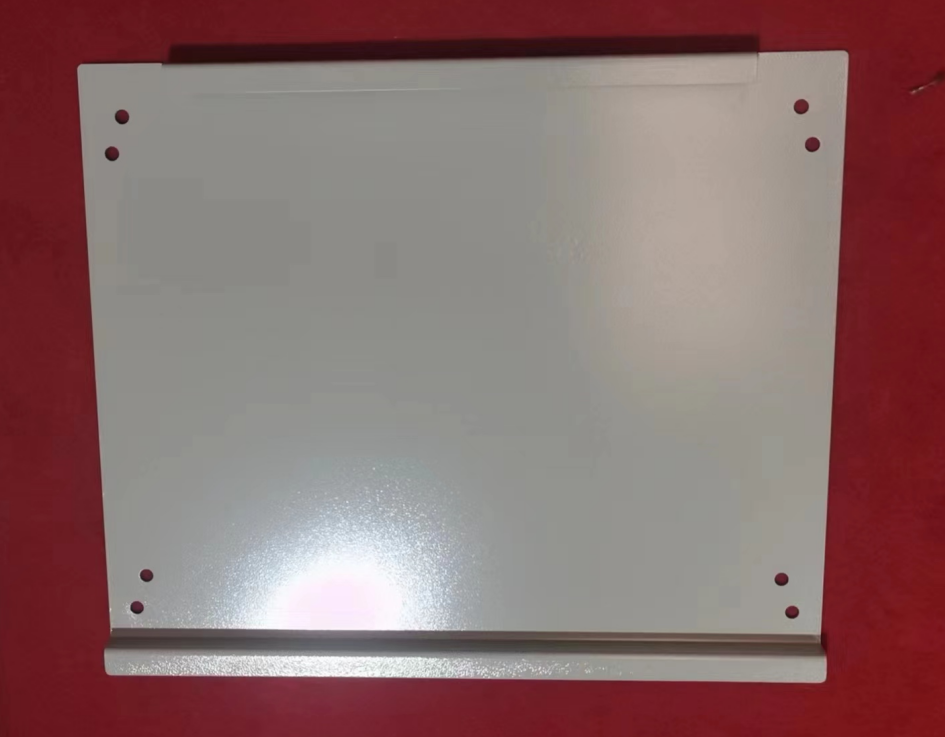

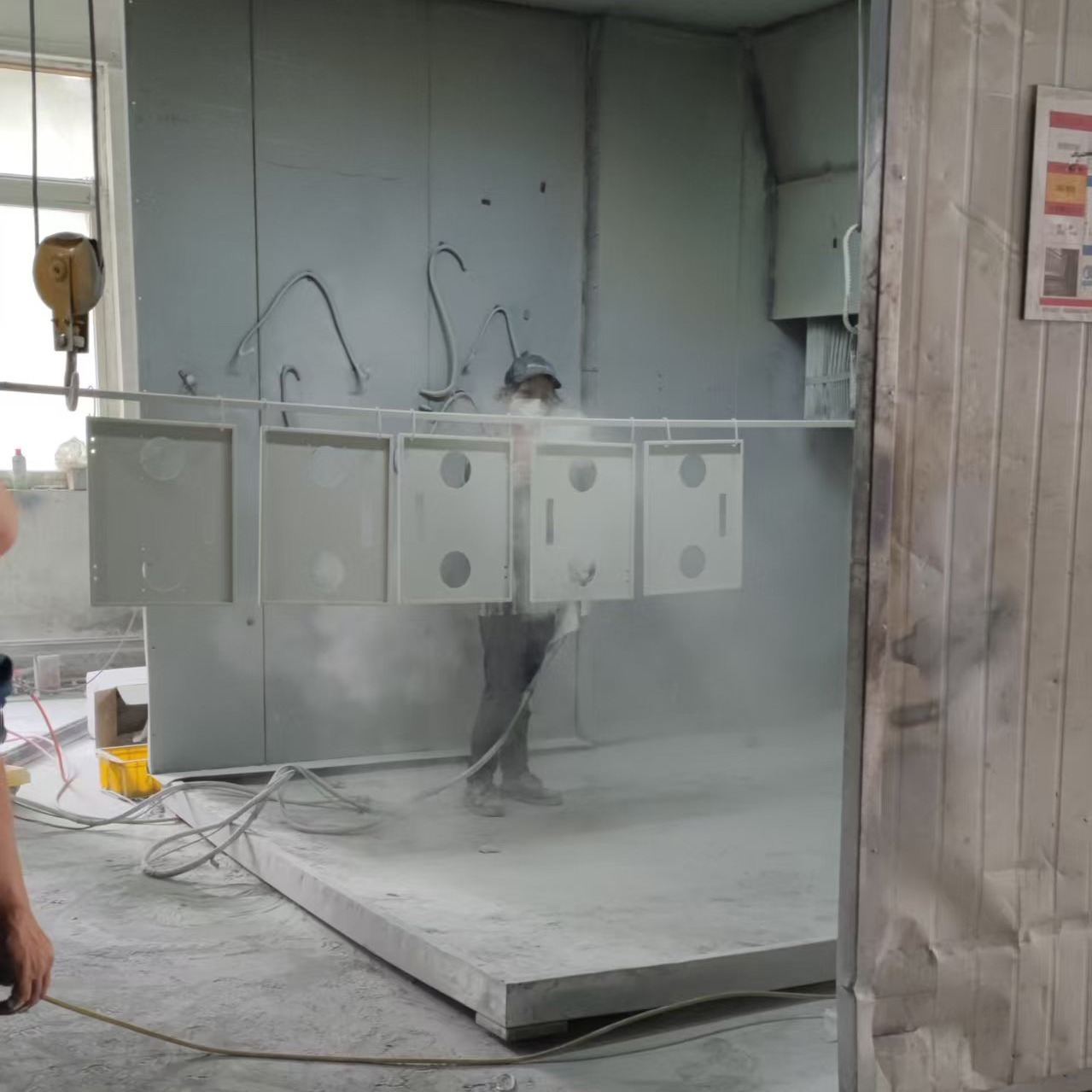

powder-coating-for-telecom-enclosures (8)

powder-coating-for-telecom-enclosures (9)

What is RAL7035?


RAL 7035 (Light Grey)is a color code from the RAL Classic color system, which is widely used in Europe for industrial and architectural applications.


Common Uses:

-Industrial coatings

-Machinery and equipment

-Architectural facades

-Military and aviation applications (often as a camouflage or neutral base color)


But what does powder coating do exactly? For outdoor communication cabinets and battery enclosures, it provides critical protection against weather, corrosion, and wear—ensuring long-lasting performance in harsh environments.

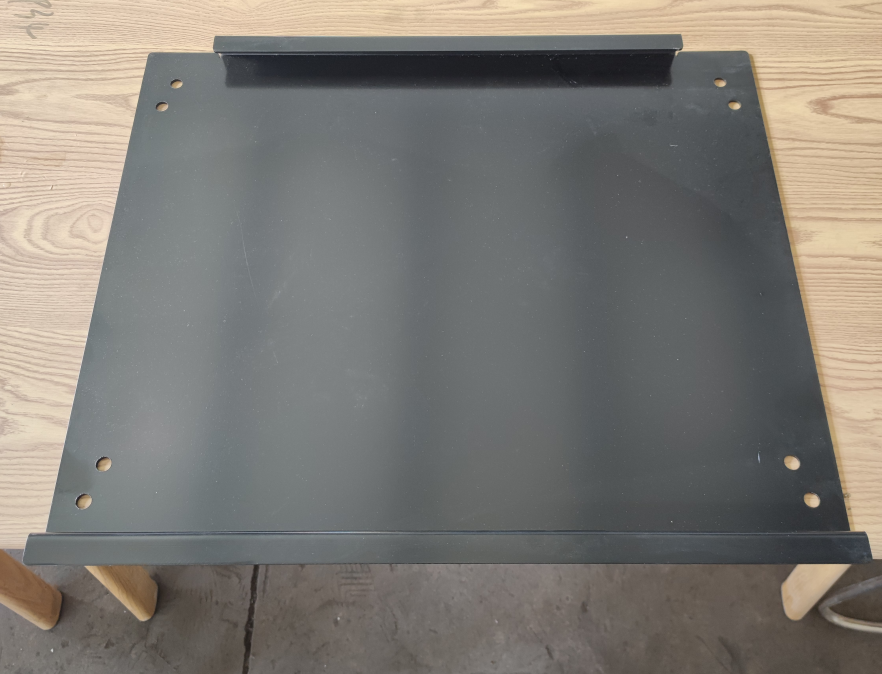

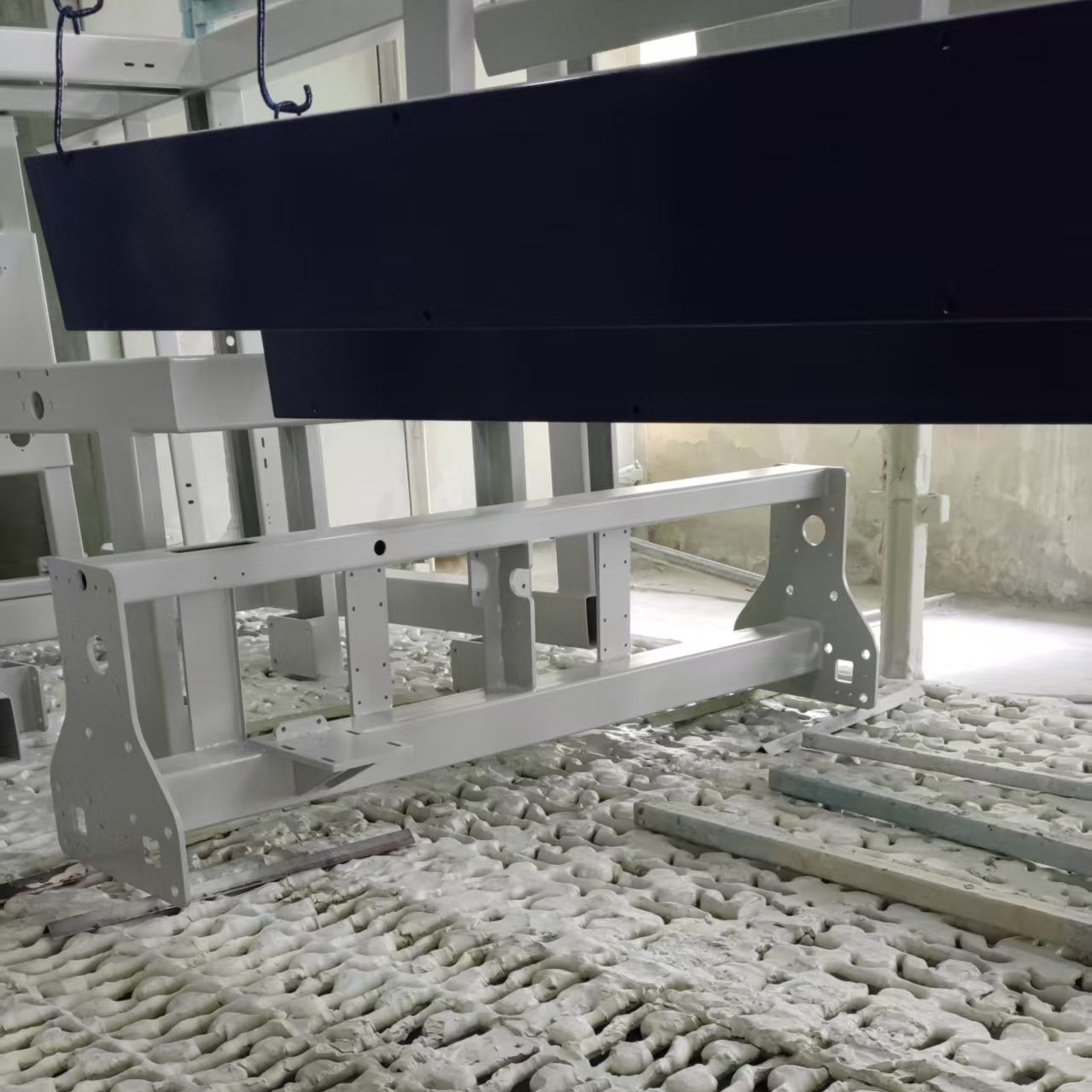

powder-coating-for telecom-enclosures (1)    powder-coating-for telecom-enclosures (2) powder-coating-for-telecom-enclosures (5)

What Does Powder Coating Do For Telecom Enclosures? Key Benefits Explained


1. Creates a Durable, Weatherproof Shield


Powder coating forms a thick, uniform layer that protects against:

✔ UV rays (prevents fading & material breakdown)

✔ Rain, snow, and humidity (no peeling or rust)

✔ Extreme heat & cold (withstands -30°C to +70°C)


2. Prevents Corrosion & Chemical Damage


telecom enclosures face rust, salt spray, and chemical exposure. Powder coating:

✔ Blocks moisture & oxygen (stops rust before it starts)

✔ Resists battery acids & industrial pollutants (ideal for energy storage)

✔ Performs well in coastal & high-pollution areas


3. Enhances Longevity & Reduces Maintenance


✔ Lasts 2-3x longer than paint (fewer replacements needed)

✔ Scratch & chip-resistant (maintains appearance for years)

✔ Minimal upkeep (no frequent repainting)


4. Offers Eco-Friendly & Safe Protection


✔ Zero VOC emissions (no toxic fumes)

✔ No hazardous solvents (safe for workers & the environment)

✔ Excess powder can be recycled (reduces waste)




How Powder Coating Works for telecom enclosures?


Step 1: Surface Preparation


Metal is cleaned & treated (removes oils, rust, and debris)

Ensures strong adhesion for the powder


Step 2: Electrostatic Application


Powder is sprayed with an electrostatic charge

Evenly sticks to the metal surface


Step 3: Heat Curing


Cabinet is baked at high temperatures (~200°C)

Powder melts into a smooth, hard finish


Step 4: Final Inspection


Coating is checked for thickness, adhesion, and defects

Ensures maximum protection before shipping




Why Outdoor Communication & Battery Cabinets Need Powder Coating?


  • For Communication Cabinets (5G, Telecom, Fiber Optic)


✔ Prevents signal interference (non-conductive coatings)

✔ Resists vandalism & graffiti (tough, smooth surface)

✔ Withstands decades of sun & rain exposure


  • For Battery Enclosures (Energy Storage, EV, Solar)


✔ Protects against battery acid leaks

✔ Improves heat dissipation (some coatings aid cooling)

✔ Fire-retardant options available (safety for lithium-ion batteries)



Technical Selection Guide


Choosing the Right Powder Coating Type

  • Polyester vs Epoxy-Polyester Hybrids

1.Polyester Powder Coatings

Best for: UV resistance & outdoor durability

Key Attributes:

✓ Superior Weather Resistance

2000+ hours QUV accelerated weathering test

Less than 5% chalking after 5 years (Florida exposure test)

✓ Color Retention

ΔE<2 after 3000 hours xenon arc testing

Preferred for RAL 7035/9005 Standard colors for the telecommunications industry


2.Epoxy-Polyester Hybrids


Best for: Chemical resistance & mechanical strength

Key Advantages:

✓ Enhanced Corrosion Protection

1500+ hours salt spray (ASTM B117)

Excellent acid rain resistance (simulated pH 2.5 environment test)

✓ Mechanical Performance

Impact resistance increased by 20% (ASTM D2794 160 in-lb

Edge coverage outperforms pure polyester (minimum 20μm at sharp edges)

Common Uses:

  • Battery cabinet internal frame

H6 Example : CATL energy storage cabinet internal bracket coating solution)

  • Hinges and other key components of communication cabinets in coastal areas


Color & Finish Considerations


  • RAL Color Matching for Corporate Identity,for example RAL7035 OR RAL9006

  • Texture Options (Matte/Glossy/Textured)



Conclusion: Is Powder Coating Worth It for telecom enclosures? -Absolutely!


Powder coating does more than just paint—it provides:

✅ Superior weather resistance

✅ Long-term corrosion protection

✅ Lower lifetime costs (less maintenance & replacements)

✅ Aesthetic flexibility (colors, textures, finishes)




FAQs About Powder Coated telecom enclosures


Ask:How long does powder coating last on outdoor telecom cabinets?

Answer:Industry-Standard Lifespan:7-15 years for communication/energy storage cabinets/telecom enclosures


Ask:Can powder coating be applied to existing cabinets?

Answer:Yes, but with critical preparatory steps


Ask:What warranties are typical for industrial powder coating?

Answer:Typical industrial powder coating warranties range from 5-15 years, depending on the coating type,substrate preparation quality, and environmental exposure (ISO 12944 C1-C5 classifications).
