Modern telecommunications networks require reliable power 24/7. From 5G base stations and fiber access networks to remote communication sites, a stable telecom power solution is essential for maintaining network availability, protecting critical equipment, and reducing operating costs.
Outdoor telecom sites are often exposed to extreme temperatures, dust, rain, humidity, and unstable grid conditions. Therefore, a telecom power system is not simply about supplying electricity. It requires an integrated solution that combines power supply, battery backup, outdoor protection, and thermal management.
In this article, we explain the key components of a modern telecom power solution and how outdoor telecom cabinets and thermal management systems can help build a reliable telecom infrastructure.
A telecom power solution is an integrated power system designed to provide reliable and continuous electrical power to telecommunications equipment.
A typical telecom power solution may include:
AC/DC power systems
Rectifiers
DC distribution units
Lithium-ion or lead-acid batteries
Battery cabinets and battery racks
Outdoor telecom power cabinets
Monitoring and control systems
Cooling and thermal management systems
Surge protection and power distribution components
The main objective is to ensure that telecom equipment continues operating even when the primary power source fails.
For outdoor telecom deployments, these components are normally installed inside a weather-resistant outdoor telecom cabinet or enclosure.

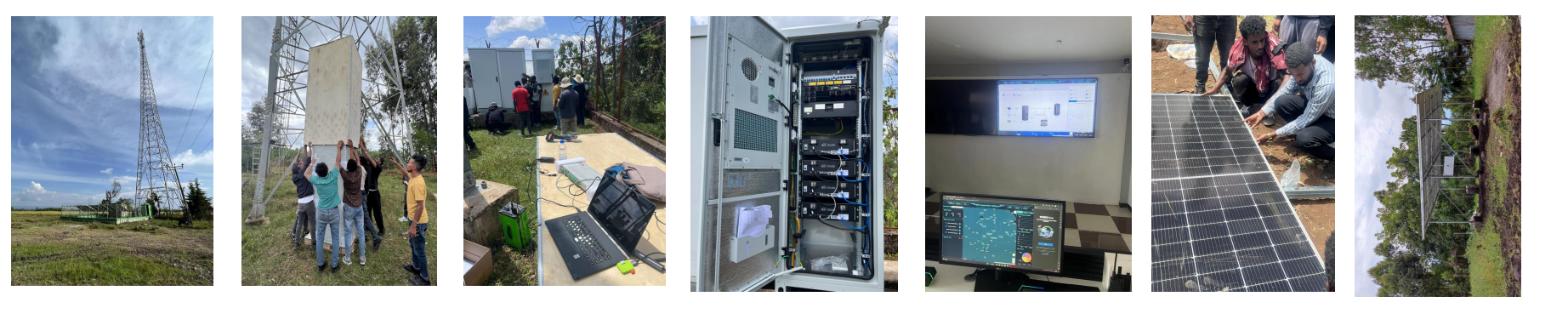

Telecom Power Project
Telecom equipment operates continuously. Even a short power interruption can cause network downtime, service disruption, or equipment failure.
This is particularly important for:
5G base stations
4G/LTE networks
Fiber optic access networks
Wireless communication systems
Remote radio units
Small cell deployments
Microwave communication sites
Edge computing and telecom infrastructure
Rural and off-grid telecom sites
A properly designed telecom power solution provides both normal operating power and backup power, allowing the network to remain operational during grid failures or other power interruptions.
Telecom networks commonly use DC power, with -48V DC being one of the most widely used power architectures.
The rectifier converts incoming AC power into regulated DC power for telecom equipment while also charging the backup battery system.
A typical architecture can be simplified as:
AC Grid → Rectifier → DC Distribution → Telecom Equipment
At the same time:
Rectifier → Battery → DC Distribution → Telecom Equipment
When the AC grid is available, the rectifier supplies the telecom load and charges the batteries.
When the grid fails, the battery automatically supplies power to the telecom equipment.
This architecture helps maintain continuous operation without requiring an immediate generator start.
Battery backup is one of the most important parts of a telecom power solution.
Traditional telecom sites have commonly used lead-acid batteries, while modern deployments increasingly use lithium-ion batteries because of their higher energy density, longer cycle life, and smaller footprint.
Depending on the application, batteries may be installed in:
Outdoor battery cabinets
Telecom power cabinets
Battery racks
Integrated power and battery enclosures
The battery capacity should be selected according to the telecom load and required backup time.
For example, a remote telecom site may require several hours of battery backup to maintain network availability during a grid outage.
For outdoor telecom sites, the power system needs protection from the environment.
An outdoor telecom cabinet provides a protected space for:
Rectifiers
Batteries
DC distribution
Power monitoring equipment
Controllers
Network equipment
Other auxiliary components
The enclosure can be designed with protection levels such as IP55, IP65, or IP66, depending on the site environment and equipment requirements.
A properly designed outdoor telecom cabinet should provide protection against:
Rain and water
Dust
Humidity
Solar radiation
Wind
Corrosive environments
Extreme temperatures
Unauthorized access
For harsh outdoor environments, enclosure material, surface treatment, sealing, cable entry, locks, and ventilation or cooling design all need to be considered together.
One of the most overlooked aspects of telecom power system design is thermal management.
Power equipment generates heat during operation. Rectifiers, batteries, power supplies, switches, and other electronic components all contribute to the internal heat load.
If this heat cannot be removed effectively, the internal cabinet temperature can increase significantly.
High temperature can result in:
Reduced battery life
Reduced equipment reliability
Thermal alarms
Component degradation
Increased maintenance
Unexpected shutdowns
Reduced system lifetime
For this reason, thermal management should be considered at the same time as power system design.
There are several common approaches to telecom cabinet cooling.
Fan cooling is one of the simplest and most economical solutions.
Fans exchange the hot internal air with cooler ambient air.
However, fan cooling has an important limitation: outside air enters the cabinet.
Therefore, fan cooling may not be suitable when the cabinet requires high environmental protection against dust, humidity, salt spray, or other contaminants.
For relatively clean environments and lower internal heat loads, fan cooling can be a cost-effective option.
An air-to-air heat exchanger removes internal heat without directly mixing indoor and outdoor air.
The internal air circulates through one side of the heat exchanger, while ambient air flows through the other side.
Heat is transferred through the heat exchanger core.
This provides several advantages:
No direct exchange of contaminated air
Better protection against dust and moisture
Suitable for sealed outdoor cabinets
Lower maintenance requirements
No refrigerant required
Suitable for many telecom applications
For telecom cabinets where maintaining a sealed enclosure is important, an air-to-air heat exchanger can be an excellent solution.
When the internal heat load is high or the outdoor temperature is extreme, a cabinet air conditioner may be required.
A cabinet air conditioner provides active refrigeration and can maintain the internal cabinet temperature below the required limit even when ambient temperatures are high.
Typical applications include:
High-power telecom cabinets
Outdoor power cabinets
Battery cabinets
Energy storage systems
Industrial control cabinets
Communication shelters
Depending on the application, cabinet air conditioners can be supplied in different cooling capacities and power configurations, including AC and DC solutions.
For telecom sites with 48V DC power systems, DC cabinet air conditioners can be particularly useful because they can operate directly from the site's DC power architecture.
The correct cooling technology depends on several factors.
Cooling Method | Main Advantage | Typical Application |
Fan Cooling | Low cost and simple structure | Low heat load, relatively clean environments |
Air-to-Air Heat Exchanger | Keeps cabinet sealed | Outdoor telecom and power cabinets |
Cabinet Air Conditioner | High cooling capacity | High heat load and extreme ambient temperatures |
The most important parameters to consider are:
1. Internal heat dissipation
Calculate the total heat generated by rectifiers, batteries, telecom equipment, power supplies, and other components.
2. Maximum ambient temperature
A cabinet installed in a desert environment may experience temperatures above 50°C, while a site in a cold climate may require operation below -30°C or lower.
3. Required internal temperature
Different telecom equipment and batteries have different operating temperature requirements.
4. Enclosure protection level
If the cabinet requires IP65 or IP66 protection, an open ventilation solution may not be appropriate.
5. Power availability
For remote telecom sites, the cooling system's power consumption is an important consideration.
Telecom networks are increasingly deployed in challenging environments.
Examples include:
Deserts
Coastal areas
Tropical regions
High-altitude sites
Industrial areas
Remote rural locations
Solar-powered telecom sites
Off-grid communication stations
In these environments, the enclosure and thermal management system need to be designed together.
High temperatures can significantly affect batteries and electronic components.
A suitable cabinet air conditioner or heat exchanger can prevent excessive internal temperature rise.
Desert telecom sites can have high levels of dust and sand.
A sealed outdoor cabinet combined with an air-to-air heat exchanger or cabinet air conditioner can provide better protection than an open ventilation system.
Salt spray and high humidity can accelerate corrosion.
For coastal telecom applications, corrosion-resistant materials, appropriate surface treatment, protective coatings, and corrosion-resistant components should be considered.
Telecom equipment deployed in northern regions or high-altitude areas may experience extremely low temperatures.
In such applications, the thermal management system may need both cooling and heating functions to maintain the required internal temperature.
Remote telecom sites often have limited or no access to the electrical grid.
A typical off-grid telecom power solution may combine:
Solar Panels + MPPT Controller + Battery + DC Power System + Telecom Equipment
The solar panels generate electricity during the day.
The MPPT controller optimizes solar energy conversion and charges the battery.
The battery provides energy when solar power is insufficient, such as at night or during cloudy weather.
For these applications, an outdoor cabinet can integrate the batteries, power electronics, distribution components, and thermal management system into one protected enclosure.
This type of integrated solution can reduce installation time and simplify deployment at remote sites.
Modern telecom power solutions increasingly incorporate remote monitoring.
A monitoring system can provide information such as:
Battery voltage
Battery temperature
DC voltage
Load current
Power consumption
Cabinet temperature
Door status
Cooling system status
AC/DC power failure alarms
Battery alarms
Remote monitoring is especially important for unattended telecom sites.
Instead of sending technicians to every site for routine inspection, operators can monitor equipment remotely and respond to alarms when necessary.
This can significantly reduce maintenance costs and improve network availability.
A reliable telecom power solution should be designed as an integrated system rather than selecting individual components separately.
A typical design process includes:
Calculate the total power consumption of all telecom equipment.
Define how long the site must operate when grid power is unavailable.
Battery capacity should be selected according to the load, backup time, battery characteristics, and environmental conditions.
Consider:
Cabinet dimensions
Battery weight
Equipment layout
IP/NEMA protection
Material
Corrosion resistance
Cable entry
Security
Transportation and installation requirements
Calculate the total heat generated inside the cabinet.
This step is essential for selecting the correct thermal management system.
Depending on the application, choose:
Fan cooling
Air-to-air heat exchanger
Thermosyphon heat exchanger
Cabinet air conditioner
Hybrid cooling solution
The design should consider the complete operating environment, including:
Ambient temperature
Humidity
Dust
Rain
Salt spray
Altitude
Solar radiation
Corrosion
Wind
Choosing the enclosure and cooling system from the same manufacturer can simplify system integration.
Instead of separately selecting a cabinet, cooling unit, mounting system, cable management, and thermal solution, an integrated supplier can optimize the complete system.
This can provide advantages such as:
Better equipment compatibility
Optimized airflow
Simplified installation
Reduced engineering work
Faster project deployment
Easier maintenance
Customized cabinet dimensions
Customized cooling capacity
Better environmental protection
For telecom operators, system integrators, and OEM customers, this can make the entire deployment process more efficient.
CYTECH provides outdoor enclosure and thermal management solutions for telecommunications and other critical infrastructure applications.
Our product portfolio includes outdoor telecom cabinets, telecom enclosures, battery cabinets, power cabinets, cabinet air conditioners, air-to-air heat exchangers, heat pipe heat exchangers, and other thermal management solutions.
Solutions can be customized according to project requirements, including:
Cabinet dimensions
Battery configuration
Cooling capacity
AC or DC power supply
IP protection level
Material and surface treatment
Cable entry configuration
Internal equipment layout
Heating and cooling requirements
Environmental conditions
For demanding telecom deployments, the combination of a robust outdoor enclosure and properly sized thermal management system can help protect critical power equipment and improve long-term system reliability.
A modern telecom power solution is much more than a rectifier and battery.
A reliable system needs to combine:
Power Supply + Battery Backup + Outdoor Protection + Thermal Management + Monitoring
The outdoor cabinet protects the equipment from harsh environmental conditions, while the thermal management system keeps the internal temperature within the required operating range.
For low-power applications, fan cooling may be sufficient. For sealed outdoor cabinets, an air-to-air heat exchanger can provide efficient heat dissipation while maintaining enclosure protection. For high heat loads and extreme temperatures, a cabinet air conditioner can provide active cooling.
By designing the power system, battery, enclosure, and thermal management system as one integrated solution, telecom operators and system integrators can build more reliable, energy-efficient, and easier-to-maintain outdoor telecom sites.
