Product Description

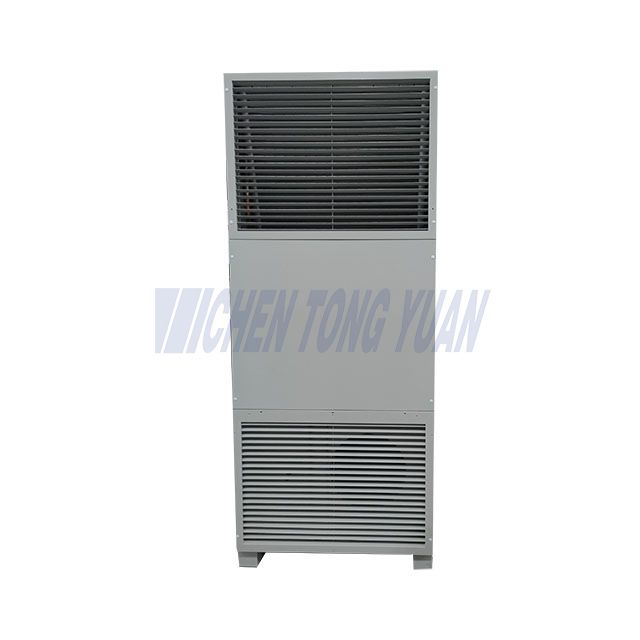

The 15KW water cooled chiller for battery cooling is designed for precision thermal management in lithium battery containers and energy storage cabinets. It integrates refrigeration, liquid circulation, and intelligent control into a compact floor-standing cabinet.
Key highlights include:
15kW cooling capacity for medium-scale battery packs
Stable coolant circulation using ethylene glycol solution
Intelligent temperature monitoring to protect batteries
Integrated cabinet design for quick deployment
Efficient heat exchange through plate heat exchanger technology
This system ensures that battery cooling performance remains stable even in demanding environments.
1.Intelligent Temperature Control
2.Integrated Liquid Cooling Architecture
3.High Efficiency Refrigeration Components
4.Reliable Operation Functions
5.Wide Environmental Adaptability
Name | 15KW Water Cooled Chiller |
Model | CY-ESSC15 |
Rated Voltage (V) | 380VAC±15﹪ |
Rated frequency(Hz) | 50±2﹪ |
Cooling capacity (KW) | 15.0 |
Heating load(KW) | 10 |
Rated power(KW) W15/L35 | 4.2 |
Rated current（A）W15/L35 | 8.1 |
Refrigerant | R410A/4.0KG |
Circulating water volume | 250L/min |
Coolant | 50% ethylene glycol aqueous solution |
Working Ambient Temperature | -30℃ ~+45℃ |
| Water inlet and outlet method | Bottom inlet and outlet water |
| IP grade | IP20 |
| Weight | 260Kg |
| Overall dimensions（W*D*H） | 980mm*617mm*2400mm |
| Operating voltage range： | 380VAC±15%，50HZ |
| Operating ambient temperature range： | -30℃ ~+45℃ |
| Operating relative humidity range： | 5%~+95% |
| Working altitude： | 0M~4000M （ Performance decreases by 3% for every 1000m increase at an altitude of 1000m~4000m） |
The water cooled chiller consists of a refrigeration system and a coolant circulation system, and the system principle is shown in the figure:
Application
Provides reliable battery cooling for lithium battery containers in grid-scale energy storage projects.
Supports thermal management in commercial ESS battery systems.
Ideal for solar and wind battery storage cooling applications.
Maintains optimal temperature conditions for battery packs and battery modules.
Options
Model | Voltage | Cooling capacity (KW) | Heating Load (W) | Weight （KG） | Overall dimensions （W*D*H） |
CY-ESSC5( Horizontal plug-in) | 220VAC±15﹪ | 5 | 2.5 | 80 | 700mm*900mm*250mm |
CY-ESSC5 (Vertical plug-in) | 220VAC±15﹪ | 5 | 2.0 | 90 | 1105mm*266mm*800mm |
CY-ESSC8 (Vertical plug-in) | 380VAC±15﹪ | 8 | 2.0 | 110 | 1200mm*266mm*1040mm |
CY-ESSC15 (Floor stand) | 380VAC±15﹪ | 15 | 10.0 | 260 | 980mm*617mm*2400mm |
CY-ESSC20 (Floor stand) | 380VAC±15﹪ | 20 | 10.0 | 400 | 980mm*617mm*2400mm |
| CY-ESSC40 (Floor stand) | 380VAC±15﹪ | 40 | 6.5 | 420 | 980mm*617mm*2400mm |
Advantages&Why?
The system delivers precise battery cooling control, preventing overheating and improving battery cycle life.
Variable frequency compressor technology adjusts cooling output based on real-time demand, reducing energy consumption.
Large coolant flow and minimal temperature difference ensure consistent battery thermal management performance.
With RS485 communication and automatic restart functions, the system integrates easily with energy storage monitoring platforms.
The floor standing integrated cabinet design simplifies installation and allows quick access for maintenance.
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
