AC1150-2
Cytech
Telecom, Battery, Integrated
IP 55, IP 65
Half-embeded Mount
15000W/51194BTU
Product Description

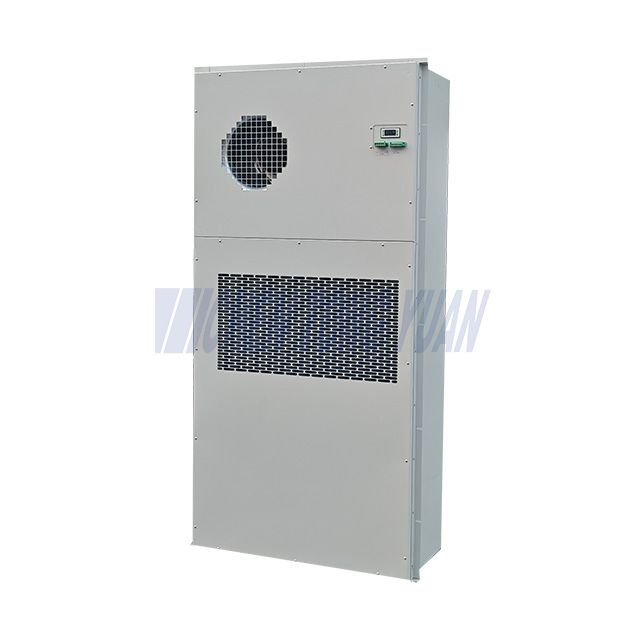

The Battery Energy Storage System (BESS) Air Conditioner 15kW is designed to provide balanced and dependable thermal control for medium-scale ESS installations. It ensures stable operating temperatures within battery energy storage systems, supporting system safety and consistent performance.
Developed for BESS cabinets and outdoor battery enclosures, this air conditioner delivers controlled cooling under fluctuating load conditions common in energy storage applications.
Efficient rotor compressor: reliable and energy-saving
Intelligent control: Power on self check and power on self start function, RS485 communication interface
Digital tube display: on-site parameters can be set, and the temperature and operating status inside the cabinet can be displayed
High protection level: Perfect for outdoor environments
Configure external circulation air inlet screen to prevent willow catkins from blocking the radiator
Upper air outlet structure: The air outlet can be connected to the air duct
Environmentally friendly refrigerants: adding a touch of greenery to the Earth
Optional functions: heating function, dehumidification function
Name | 15KW BESS Air Conditioner |
Model | AC1150-2 |
Main power supply | 380VAC±15% 50Hz/60Hz |
Cooling capacity(Rated) | 15000W@L35/L35 |
Power consumption(Rated) | 5100W@L35/L35 |
Heating capacity（optional） | 6000W |
Work temp. range | -40℃~+55℃ |
Noise | 72dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 260KG |
Refrigerant | R22/R407C |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
BESS Air Conditioner Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
Application
Ideal for battery energy storage system cabinets requiring precise temperature control to support system safety and reliability.
Designed for outdoor enclosure air conditioner applications where batteries operate under varying environmental conditions.
Applied in grid-support energy storage systems such as peak shaving, load shifting, and frequency regulation.
Suitable for commercial and industrial BESS installations where stable thermal management is essential for long-term operation.
Options
Model | Voltage | Cooling capacity (rated)(W) | Power consumption(W) | Heater (W) (option) | Weight（KG） | Noise (dbA) |
1~230V±15%/50Hz | 3000 - 3500 | 1300 | 2000 | 45 | 69dB(A) | |
1~230V±15%/50Hz | 5000 | 1900 | 3000 | 50 | 69dB(A) | |
1~230V±15%/50Hz | 7500 | 2700 | 3000 | 75 | 69dB(A) | |
1~230V±15%/50Hz | 10000 | 3850 | 6000 | 100 | 69dB(A) | |
3~380V±15%/50Hz | 12500 | 4800 | 6000 | 120 | 69dB(A) | |
3~380V±15%/50Hz | 15000 | 5800 | 9000 | 130 | 69dB(A) | |
CY-A200NA | 3~380V±15%/50Hz | 20000 | 7600 | 9000 | 150 | 69dB(A) |
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&Why?
Designed specifically for battery energy storage system temperature control rather than generic industrial cooling.
Ensures stable cooling performance during charge and discharge cycles of ESS systems.
Supports outdoor battery enclosures with robust construction and dependable thermal control.
Proven solutions widely used in commercial, industrial, and grid-scale BESS projects.
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
