Product Description

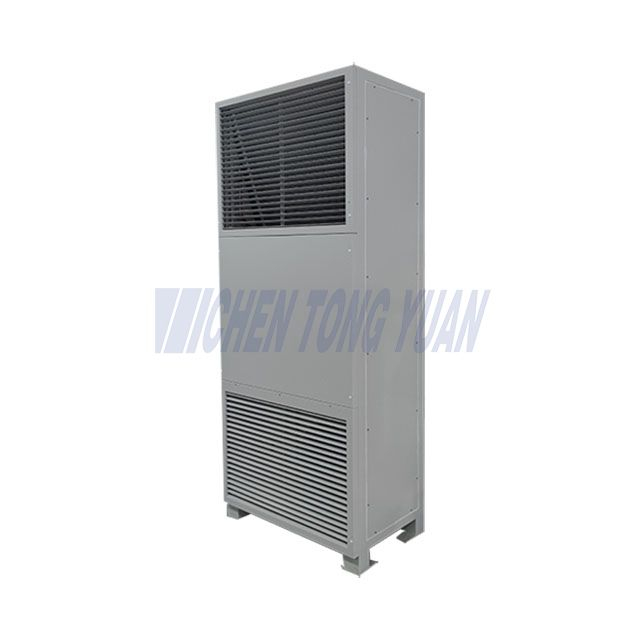

The 20KW battery cooling system for energy storage is engineered to provide stable temperature regulation for lithium battery containers and commercial energy storage systems.
This system integrates refrigeration components, coolant circulation pumps, and intelligent control functions to create a complete energy storage battery cooling solution.
Automatically adjusts cooling and heating to maintain stable battery operating temperature.
Compressor, microchannel condenser and expansion valve ensure reliable energy storage battery cooling.
Ethylene glycol coolant delivers efficient and stable battery thermal management.
Supports remote monitoring and integration with battery cooling system for energy storage.
Name | 20KW Battery Cooling System |
Model | CY-ESSC20 |
Rated Voltage (V) | 380VAC±15﹪ |
Rated frequency(Hz) | 50±2﹪ |
Cooling capacity (KW) | 20.0 |
Heating load(KW) | 10.0 |
Rated power(KW) W15/L35 | 10 |
Rated current（A）W15/L35 | 16.5 |
Refrigerant | R410A/4.0KG |
Circulating water volume | 250L/min |
Coolant | 50% ethylene glycol aqueous solution |
Working Ambient Temperature | -30℃ ~+45℃ |
| Water inlet and outlet method | Bottom inlet and outlet water |
| IP grade | IP20 |
| Weight | 400Kg |
| Overall dimensions（W*D*H） | 980mm*617mm*2400mm |
| Operating voltage range： | 380VAC±15%，50HZ |
| Operating ambient temperature range： | -30℃ ~+45℃ |
| Operating relative humidity range： | 5%~+95% |
| Working altitude： | 0M~4000M （ Performance decreases by 3% for every 1000m increase at an altitude of 1000m~4000m） |
The battery cooling system consists of a refrigeration system and a coolant circulation system, and the system principle is shown in the figure:
Application
Provides stable battery cooling system for energy storage containers.
Ensures safe operation of large battery storage systems.
Supports thermal management in solar and wind energy storage battery systems.
Suitable for distributed battery energy storage installations.
Options
Model | Voltage | Cooling capacity (KW) | Heating Load (W) | Weight （KG） | Overall dimensions （W*D*H） |
CY-ESSC5( Horizontal plug-in) | 220VAC±15﹪ | 5 | 2.5 | 80 | 700mm*900mm*250mm |
CY-ESSC5 (Vertical plug-in) | 220VAC±15﹪ | 5 | 2.0 | 90 | 1105mm*266mm*800mm |
CY-ESSC8 (Vertical plug-in) | 380VAC±15﹪ | 8 | 2.0 | 110 | 1200mm*266mm*1040mm |
CY-ESSC15 (Floor stand) | 380VAC±15﹪ | 15 | 10.0 | 260 | 980mm*617mm*2400mm |
CY-ESSC20 (Floor stand) | 380VAC±15﹪ | 20 | 10.0 | 400 | 980mm*617mm*2400mm |
| CY-ESSC40 (Floor stand) | 380VAC±15﹪ | 40 | 6.5 | 420 | 980mm*617mm*2400mm |
Advantages&Why?
The system is optimized for battery cooling system for energy storage, ensuring stable battery temperatures.
High heat exchange efficiency enables reliable energy storage battery thermal management.
Advanced controller automatically regulates cooling capacity based on temperature load.
Stable performance in -30°C to +45°C operating environments.
The compact floor-standing structure simplifies installation and reduces system complexity.
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
