CYMC90HDNC1U
Cytech
Telecom, Battery, Integrated
IP 55, IP 65
Door Mount
Download
Product Description

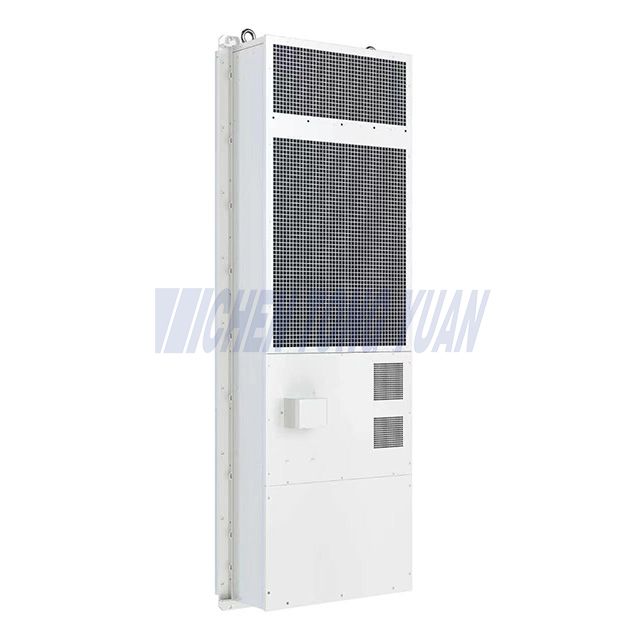

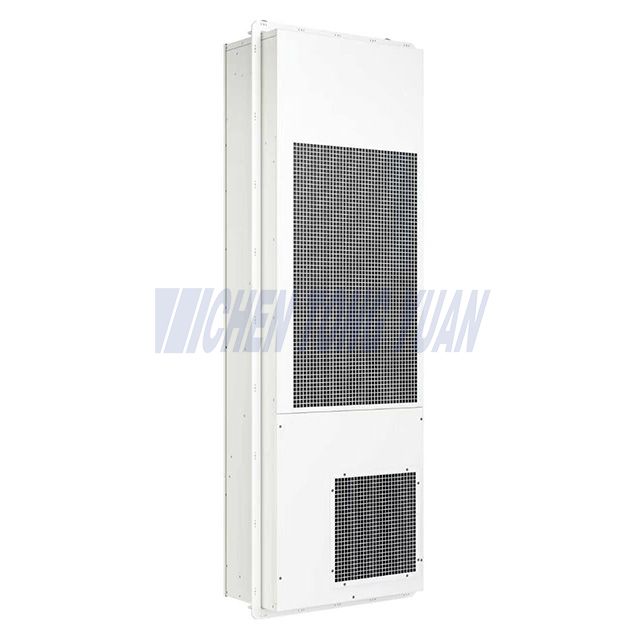

The CYMC90HDNC1U is a high-efficiency door mounted energy storage cabinet air conditioner specifically designed for Battery Energy Storage Systems (BESS), energy storage containers, power cabinets, and outdoor industrial enclosures.
Featuring a cooling capacity of 10.2kW, inverter compressor technology, and IP55 protection, this air conditioner provides reliable thermal management for lithium battery systems operating in demanding outdoor environments. It helps maintain stable internal temperatures, extend battery lifespan, and improve overall system safety and efficiency.
Provides up to 10.2kW cooling performance to effectively remove heat generated by battery modules, PCS systems, and electrical equipment.
The variable-speed compressor automatically adjusts cooling output according to load requirements, reducing power consumption and improving energy efficiency.
Designed for outdoor applications with IP55 protection against dust, rain, and harsh environmental conditions.
Reliable performance in ambient temperatures ranging from:-30degree to+50degree
Supports intelligent monitoring and integration into energy management systems through RS485 communication.
The standard 3kW heating system prevents low-temperature issues and ensures year-round operation.
Name | Specifications |
| Model | CYMC90HDNC1U |
| Cooling Capacity | 10200W |
| Heating Capacity | 3000W |
| Power Supply | 220V ±15%, 50/60Hz |
| Power Consumption | 4,100 W |
| Max Current | 35 A |
| Refrigerant | R134a |
| Airflow | 2,900 m³/h |
| Protection Rating | IP55 |
| Operating Temperature | -30°C to +55°C |

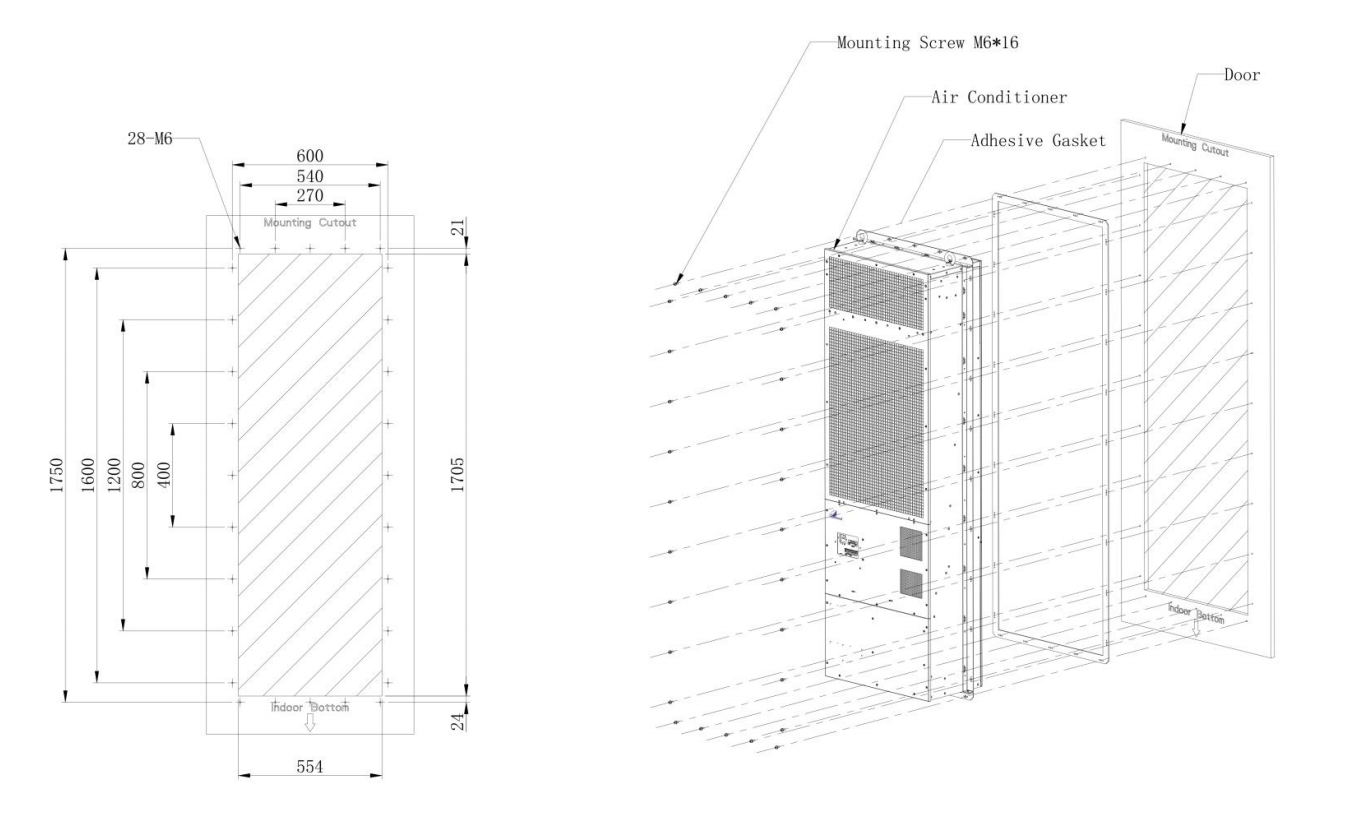

| Mounting Type | Door Mounted |

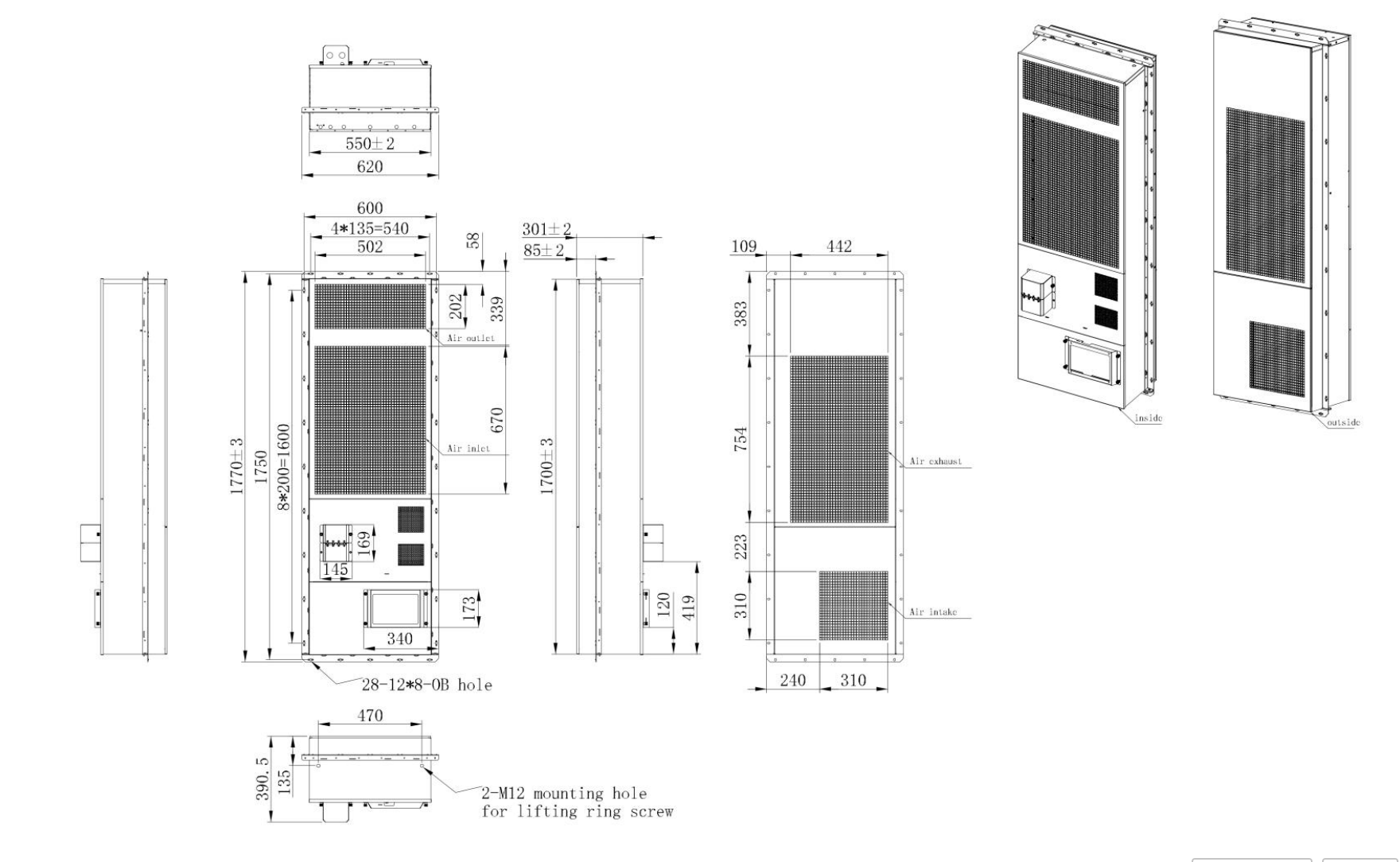

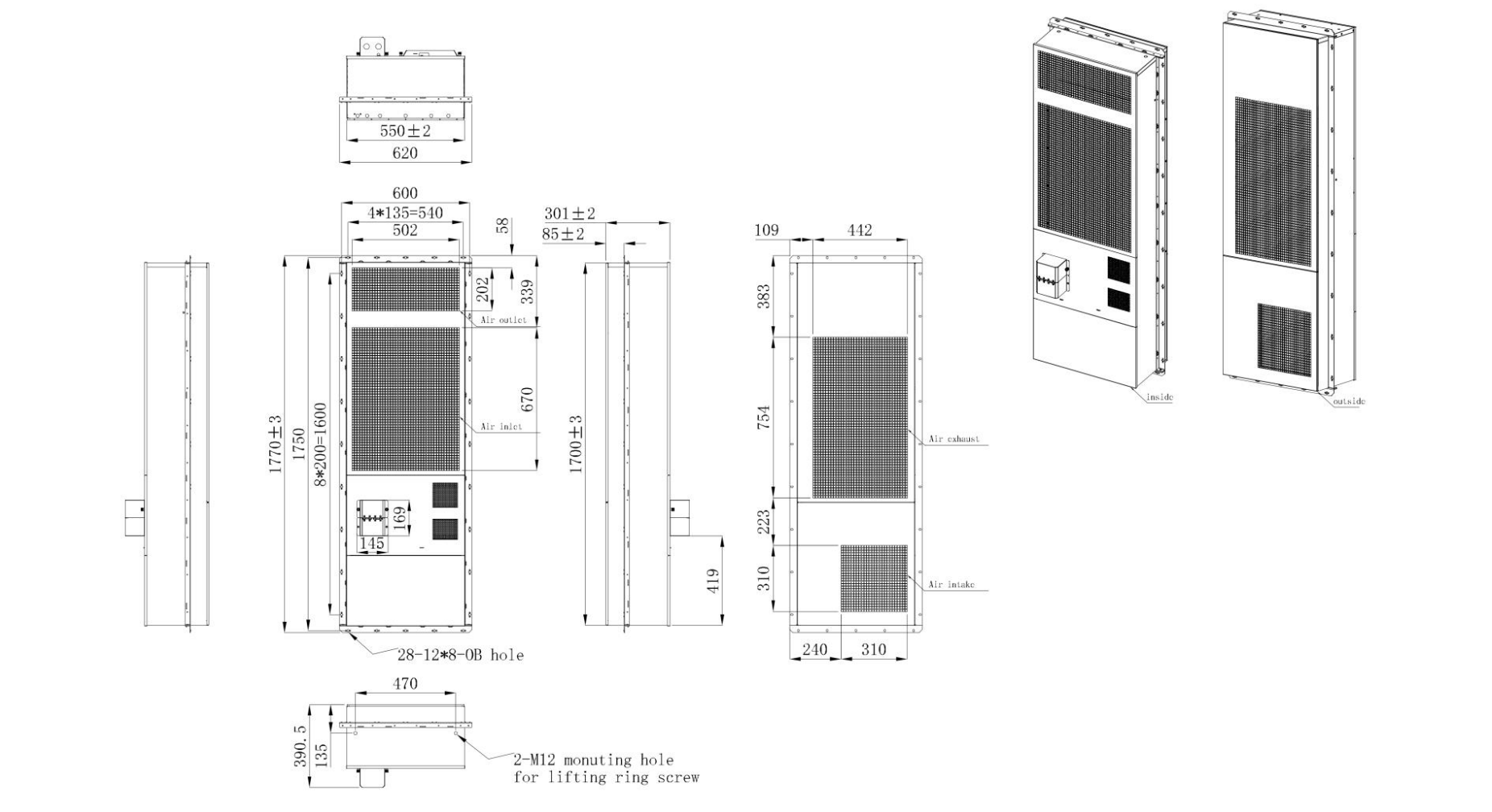

| Dimensions | 1770 × 620 × 300 mm |
| Weight | 125 kg |
| Communication | RS485 |
| Compliance | CE, UL, RoHS |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Application
The CYMC90HDNC1U energy storage cooling unit is widely used in:
Battery Energy Storage System (BESS) Cabinets
Utility-scale Energy Storage Containers
Renewable Energy Storage Projects
Solar Energy Storage Systems
Wind Power Energy Storage Systems
Power Distribution Cabinets
Smart Grid Infrastructure
Small Data Centers
Prefabricated Power Stations
Options
Model | Voltage | Nominal cooling capacity(W) (L35/L35) | Nominal cooling capacity(Btu/hr) (L35/L35) | Power consumption(W)(L35/L35) | IP Grade | Heater (W)(option) | Internal air flow (m3/h) | Refrigerant | Noise (dbA) |
CYDC105-1 | -48VDC(DC-44~-59V) | 1700 | 180 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC106-1 | -48VDC(DC-44~-59V) | 2050 | 200 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC110-1 | -48VDC(DC-44~-59V) | 3400 | 295 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC115-1 | -48VDC(DC-44~-59V) | 5100 | 495 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC120-1 | -48VDC(DC-44~-59V) | 2000 | 6800 | 710 | IP55,NEMA 4, NEMA 4X | 1000 | 700 | R134a | 69 |
CYDC130-1 | -48VDC(DC-44~-59V) | 10200 | 1000 | IP55,NEMA 4, NEMA 4X | 1000 | 900 | R134a | 69 | |
CYDC140-1 | -48VDC(DC-44~-59V) | 13650 | 1350 | IP55,NEMA 4, NEMA 4X | 1000 | 1100 | R134a | 72 |
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&FAQ
Whether in industrial plants or outdoor telecom sites, our AC units maintain stable temperatures, safeguarding critical electronics.
Prevents overheating, condensation, and equipment downtime with a trusted, high-performance cooling system.
Reduce operational costs without compromising on reliability, thanks to smart design and low energy consumption.
Decades years of experience
Global supply capability
Customized cooling solutions
Fast delivery and technical support
Widely used in telecom, utilities, transportation, and energy storage industries
Cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
An energy storage cabinet air conditioner is a thermal management system designed to control the temperature inside battery energy storage systems, ensuring safe and efficient battery operation.
Proper cooling prevents battery overheating, improves charging and discharging efficiency, extends battery lifespan, and reduces safety risks.
Yes. The MC90HDNC1U features IP55 protection and is designed for outdoor energy storage cabinets and containers.
Yes. It supports RS485 communication for remote monitoring, fault alarms, and integration with control systems.
The unit is designed to operate reliably from -30°C to +55°C ambient temperature.
Yes. CYTECH offers OEM and customized cooling solutions for energy storage cabinets, battery containers, telecom cabinets, and industrial outdoor enclosures.
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
