Product Description

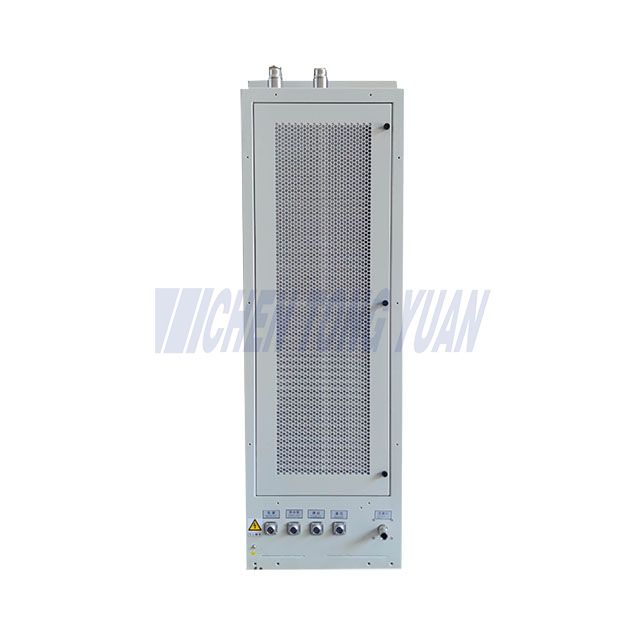

The 5KW vertical plug-in industrial liquid cooler for battery cabinet is an integrated cooling solution developed for battery energy storage systems and containerized battery equipment.
This liquid cooling unit combines a refrigeration system and coolant circulation system in a compact modular design that can be embedded into equipment frames. By circulating a 50% ethylene glycol coolant, the system efficiently removes heat generated by batteries and maintains a stable operating temperature inside battery cabinets.
Equipped with intelligent temperature control, automatic restart after power failure, and RS485 communication capability, the cooler supports reliable remote monitoring and system integration. With a cooling capacity of 5KW and circulating flow up to 50L/min, it provides stable and energy-efficient cooling performance for modern battery storage applications.
1.Intelligent Temperature Control
Automatically adjusts cooling and heating to maintain stable battery temperature.
2.Vertical Plug-in Design
Compact structure allows easy integration into battery cabinets or equipment frames.
3.RS485 Communication Support
Enables connection with monitoring systems for remote control and diagnostics.
4.Auto Restart After Power Failure
Operating parameters are saved and the unit restarts automatically after power recovery.
5.Stable Liquid Cooling Circulation
High-flow coolant circulation improves heat transfer and battery cooling stability.
Name | 5KW Liquid Cooler |
Model | CY-ESSC5 |
Rated Voltage (V) | 220VAC±15﹪ |
Rated frequency(Hz) | 50±2﹪ |
Cooling capacity (KW) | 5.0 |
Heating load(KW) | 2.0 |
Rated power(KW) W15/L35 | 2.4 |
Rated current（A）W15/L35 | 11 |
Refrigerant | R407C/1.7KG |
Circulating water volume | 50L/min |
Coolant | 50% ethylene glycol aqueous solution |
Working Ambient Temperature | -30℃~+45℃ |
| Water inlet and outlet method | Side inlet and outlet water |
| IP grade | IP20 |
| Weight | 90kg |

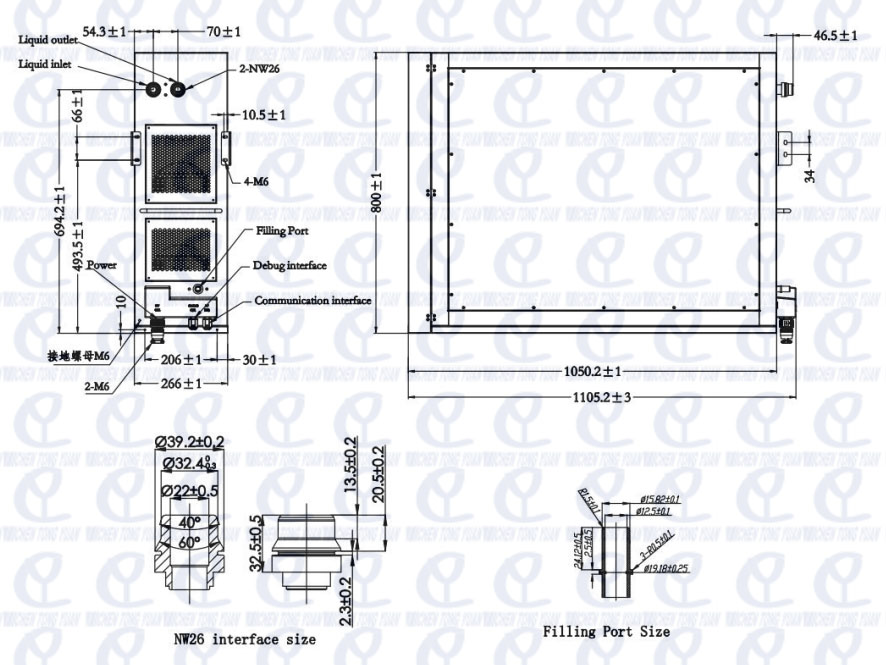

| Overall dimensions（W*D*H） | 1105mm*266mm*800mm |
| Operating voltage range： | 220VAC±15%，50/60HZ |
| Operating ambient temperature range： | -30℃ ~+45℃ |
| Operating relative humidity range： | 5%~+95% |
| Working altitude： | 0M~4000M （ Performance decreases by 3% for every 1000m increase at an altitude of 1000m~4000m） |
The industrial liquid cooler consists of a refrigeration system and a coolant circulation system, and the system principle is shown in the figure:
Application
The industrial liquid cooler for battery cabinet is suitable for various battery thermal management scenarios where stable temperature control is critical.
Typical applications include:
Battery energy storage systems (BESS)
Lithium battery cabinets
Energy storage containers
Industrial battery equipment
Power battery testing systems
Renewable energy storage systems
Its wide operating temperature range (-30°C to +45°C) allows reliable operation in outdoor and industrial environments.
Options
Model | Voltage | Cooling capacity (KW) | Heating Load (W) | Weight （KG） | Overall dimensions （W*D*H） |
CY-ESSC5( Horizontal plug-in) | 220VAC±15﹪ | 5 | 2.5 | 80 | 700mm*900mm*250mm |
CY-ESSC5 (Vertical plug-in) | 220VAC±15﹪ | 5 | 2.0 | 90 | 1105mm*266mm*800mm |
CY-ESSC8 (Vertical plug-in) | 380VAC±15﹪ | 8 | 2.0 | 110 | 1200mm*266mm*1040mm |
CY-ESSC15 (Floor stand) | 380VAC±15﹪ | 15 | 10.0 | 260 | 980mm*617mm*2400mm |
CY-ESSC20 (Floor stand) | 380VAC±15﹪ | 20 | 10.0 | 400 | 980mm*617mm*2400mm |
| CY-ESSC40 (Floor stand) | 380VAC±15﹪ | 40 | 6.5 | 420 | 980mm*617mm*2400mm |
Advantages&Why?
Unlike standard industrial chillers, this liquid cooling unit is specifically developed for battery energy storage thermal management.
The intelligent controller maintains consistent coolant temperature to prevent battery overheating and improve system safety.
The vertical plug-in structure enables easy installation in battery cabinets or equipment frames, reducing system footprint.
Variable control of cooling output ensures efficient energy use while maintaining reliable cooling performance.
With an operating range from -30°C to +45°C, the cooler provides stable performance for demanding industrial applications.
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
