AC1200-2
Cytech
Telecom, Battery, Integrated
IP 55, IP 65
Half-embeded Mount
20000W/68259BTU
Product Description

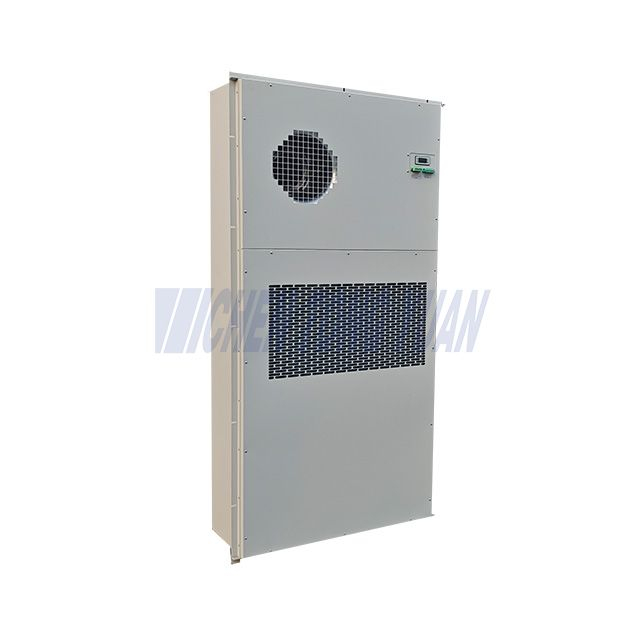

The Outdoor Energy Storage Cooling Unit 20kW is a heavy-duty cooling solution engineered for large-scale energy storage systems operating in harsh and extreme outdoor environments. It delivers powerful and stable cooling for ESS installations exposed to wide temperature variations.
Built for demanding outdoor conditions, this unit ensures reliable thermal management for high-power energy storage systems where environmental resilience is essential.
Efficient rotor compressor: reliable and energy-saving
Intelligent control: Power on self check and power on self start function, RS485 communication interface
Digital tube display: on-site parameters can be set, and the temperature and operating status inside the cabinet can be displayed
High protection level: Perfect for outdoor environments
Configure external circulation air inlet screen to prevent willow catkins from blocking the radiator
Upper air outlet structure: The air outlet can be connected to the air duct
Environmentally friendly refrigerants: adding a touch of greenery to the Earth
Optional functions: heating function, dehumidification function
Name | 20KW Outdoor Energy Storage Cooling Unit |
Model | AC1200-2 |
Main power supply | 380VAC±15% 50Hz/60Hz |
Cooling capacity(Rated) | 20000W@L35/L35 |
Power consumption(Rated) | 6800W@L35/L35 |
Heating capacity（optional） | 6000W |
Work temp. range | -40℃~+55℃ |
Noise | 72dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 375KG |
Refrigerant | R22/R407C |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
BESS Air Conditioner Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
Application
Designed for large-capacity battery containers requiring robust outdoor cooling performance.
Suitable for outdoor energy storage systems exposed to extreme temperatures, wind, dust, and precipitation.
Widely applied in utility-scale ESS projects where high cooling capacity and durability are critical.
Ideal for energy storage installations in extreme cold or high-temperature regions.
Options
Model | Voltage | Cooling capacity (rated)(W) | Power consumption(W) | Heater (W) (option) | Weight（KG） | Noise (dbA) |
1~230V±15%/50Hz | 3000 - 3500 | 1300 | 2000 | 45 | 69dB(A) | |
1~230V±15%/50Hz | 5000 | 1900 | 3000 | 50 | 69dB(A) | |
1~230V±15%/50Hz | 7500 | 2700 | 3000 | 75 | 69dB(A) | |
1~230V±15%/50Hz | 10000 | 3850 | 6000 | 100 | 69dB(A) | |
3~380V±15%/50Hz | 12500 | 4800 | 6000 | 120 | 69dB(A) | |
3~380V±15%/50Hz | 15000 | 5800 | 9000 | 130 | 69dB(A) | |
CY-A200NA | 3~380V±15%/50Hz | 20000 | 7600 | 9000 | 150 | 69dB(A) |
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&Why?
Engineered to operate reliably under extreme weather conditions and wide ambient temperature ranges.
Provides consistent cooling performance for large and high-power energy storage systems.
Built with durable materials to support long service life in demanding outdoor applications.
Extensive experience delivering outdoor energy storage cooling solutions for utility and industrial projects worldwide.
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
