Product Description

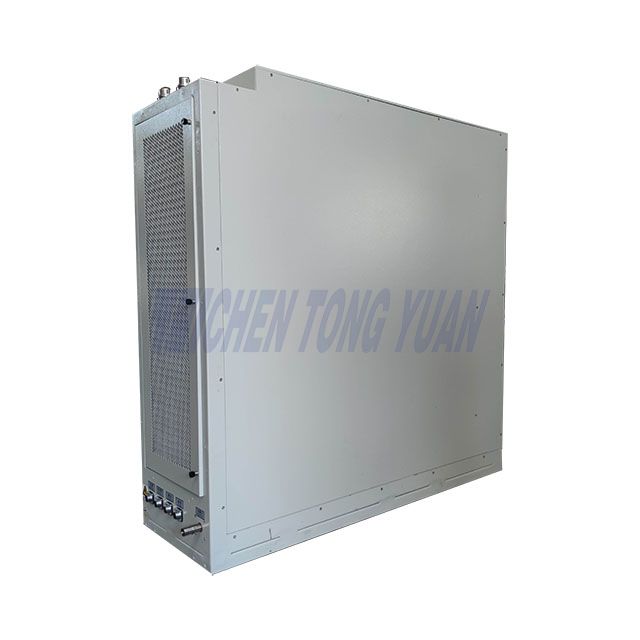

The 8KW vertical plug-in liquid cooling system for energy storage cabinet is an integrated cooling solution developed for modern battery energy storage equipment.
With a cooling capacity of 8KW and coolant circulation up to 60L/min, the system provides efficient thermal management for high-density battery cabinets. The integrated design simplifies installation while supporting intelligent control functions such as temperature monitoring, RS485 communication, and automatic restart after power recovery.
This makes the unit a reliable liquid cooling system for energy storage cabinet applications, where stable temperature control and system safety are critical.
◇Intelligent Temperature Control
Automatically adjusts cooling or heating to maintain stable battery cabinet temperature.
◇Vertical Plug-in Structure
Compact design allows direct integration into energy storage cabinet frames.
◇RS485 Communication Support
Allows connection with monitoring systems for remote control and system management.
◇Auto Restart After Power Loss
Operating parameters are saved and the unit restarts automatically after power recovery.
◇Stable Liquid Circulation
High-flow coolant circulation improves heat transfer and battery cooling efficiency.
Name | 8KW Liquid Cooling System |
Model | CY-ESSC8 |
Rated Voltage (V) | 380VAC±15﹪ |
Rated frequency(Hz) | 50±2﹪ |
Cooling capacity (KW) | 8.0 |
Heating load(KW) | 2.0 |
Rated power(KW) W15/L35 | 2.6 |
Rated current（A）W15/L35 | 4 |
Refrigerant | R407C/1.7KG |
Circulating water volume | 60L/min |
Coolant | 50% ethylene glycol aqueous solution |
Working Ambient Temperature | -30℃~+45℃ |
| Water inlet and outlet method | Side inlet and outlet water |
| IP grade | IP20 |
| Weight | 110kg |

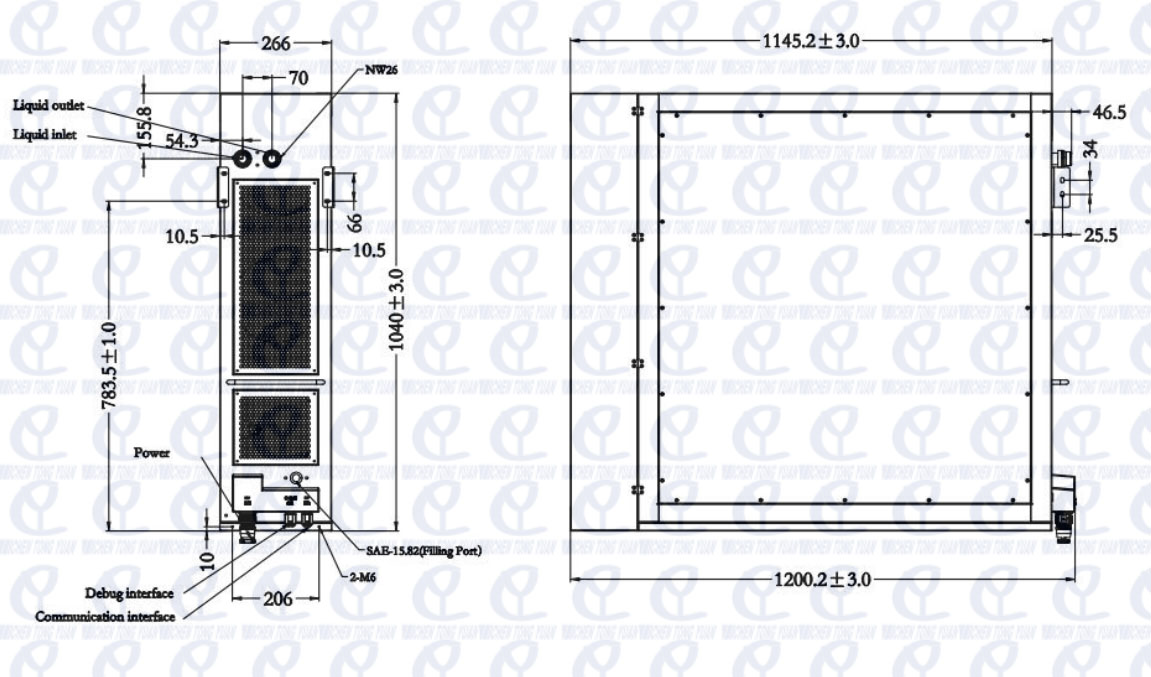

| Overall dimensions（W*D*H） | 1200mm*266mm*1040mm |
| Operating voltage range： | 380VAC±15%，50HZ |
| Operating ambient temperature range： | -30℃ ~+45℃ |
| Operating relative humidity range： | 5%~+95% |
| Working altitude： | 0M~4000M （ Performance decreases by 3% for every 1000m increase at an altitude of 1000m~4000m） |

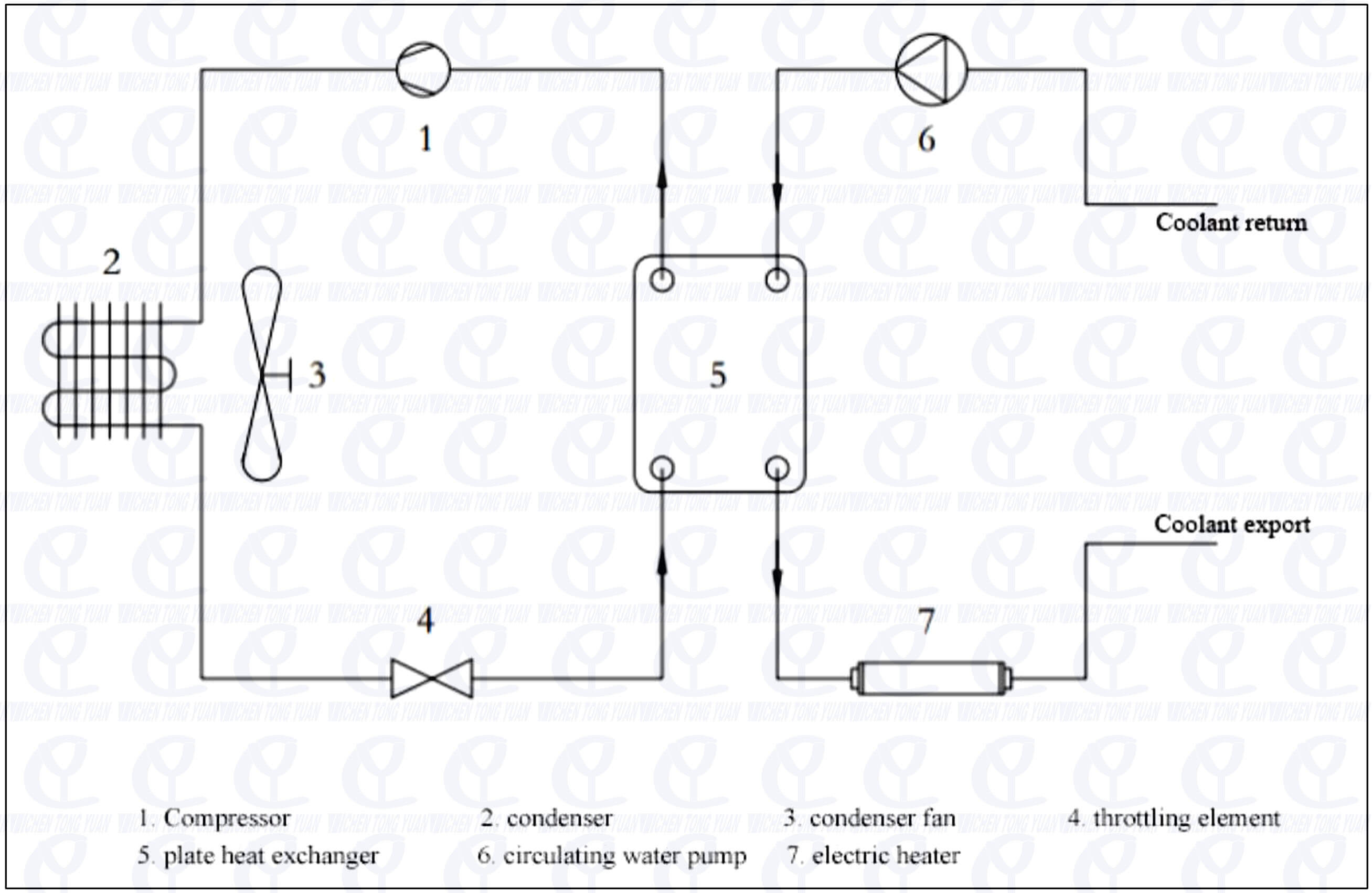

The liquid cooling system consists of a refrigeration system and a coolant circulation system, and the system principle is shown in the figure:
Application
The liquid cooling system for energy storage cabinet is suitable for thermal management in various battery energy storage scenarios, including:

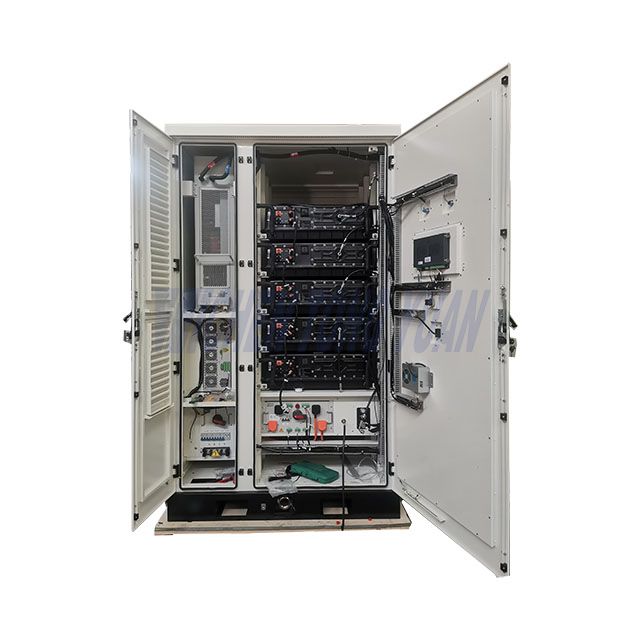

Energy storage battery cabinets
Containerized BESS systems
Lithium battery storage equipment
Renewable energy storage systems
Industrial battery cabinets
Power battery testing systems
Its wide operating temperature range (-30°C to +45°C) allows reliable operation in outdoor and industrial environments.
Options
Model | Voltage | Cooling capacity (KW) | Heating Load (W) | Weight （KG） | Overall dimensions （W*D*H） |
CY-ESSC5( Horizontal plug-in) | 220VAC±15﹪ | 5 | 2.5 | 80 | 700mm*900mm*250mm |
CY-ESSC5 (Vertical plug-in) | 220VAC±15﹪ | 5 | 2.0 | 90 | 1105mm*266mm*800mm |
CY-ESSC8 (Vertical plug-in) | 380VAC±15﹪ | 8 | 2.0 | 110 | 1200mm*266mm*1040mm |
CY-ESSC15 (Floor stand) | 380VAC±15﹪ | 15 | 10.0 | 260 | 980mm*617mm*2400mm |
CY-ESSC20 (Floor stand) | 380VAC±15﹪ | 20 | 10.0 | 400 | 980mm*617mm*2400mm |
| CY-ESSC40 (Floor stand) | 380VAC±15﹪ | 40 | 6.5 | 420 | 980mm*617mm*2400mm |
Advantages&Why?
△Designed for Battery Thermal Management
Developed specifically for energy storage cabinets where battery heat control is essential.
△Space-Saving Vertical Integration
Plug-in structure enables compact installation inside cabinet frames.
△Reliable Cooling Performance
8kW cooling capacity ensures stable temperature for high-density battery systems.
△Intelligent System Control
RS485 communication allows integration with monitoring and management platforms.
△Energy-Efficient Operation
Smart control adjusts cooling output according to actual thermal load.
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
