Thermal instability is a major challenge in large-scale energy storage systems.
This 60kw liquid cooler industrial battery energy storage chiller is engineered to deliver precise and stable thermal management for high-load lithium battery applications.
Designed for industrial environments, it ensures reliable performance in ESS projects and grid-scale energy storage systems.
CY-ESSC60
Cytech
Product Description

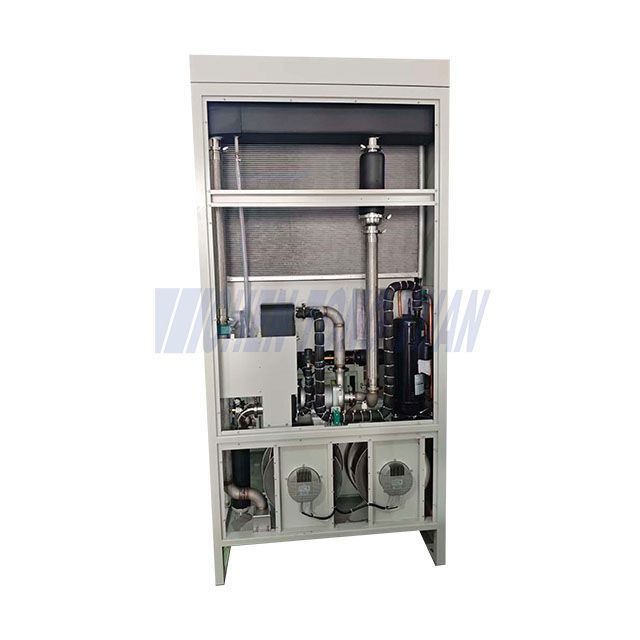

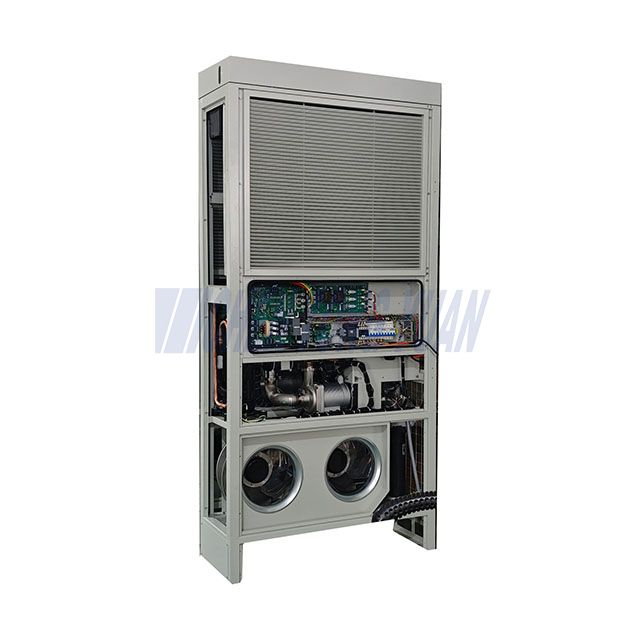

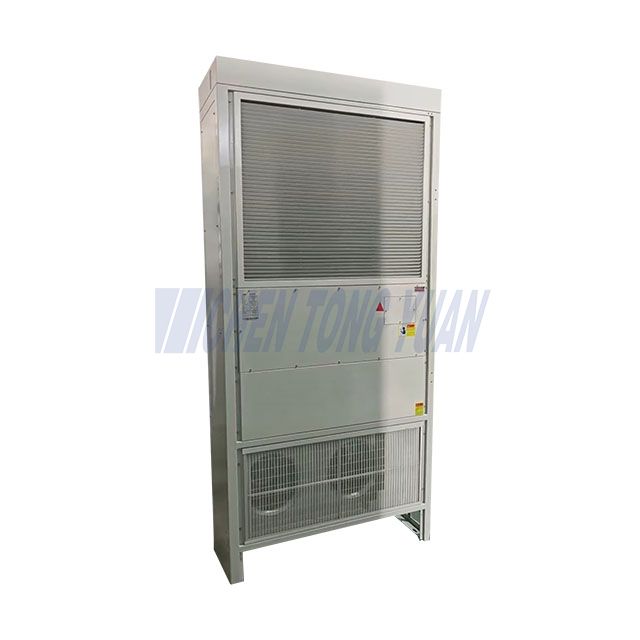

The 60kW liquid cooler industrial battery energy storage chiller is a dedicated thermal management solution designed for high-demand battery energy storage systems (BESS).
By combining efficient refrigeration with a stable liquid circulation system, it provides precise temperature control for large-scale battery installations.
Compared to conventional cooling methods, liquid cooling ensures better temperature consistency and improved system reliability, especially in industrial and continuous operation environments.
Maintains stable battery temperature under high-load conditions.
Liquid cooling ensures uniform temperature control across battery modules.
Automatically adjusts operation based on real-time conditions.
Balances cooling efficiency with reduced energy consumption.
Designed for stable operation from -30°C to +55°C.
Name | 60KW Liquid Cooler Industrial Battery Energy Storage Chiller |
Model | CY-ESSC60 |
Rated Voltage (V) | 380VAC±15﹪ |
Rated frequency(Hz) | 50±2% |
Cooling capacity (KW) | 60.0 |
Heating load(KW) | 12 |
Rated power(KW) W18/L40 | 28 |
Rated current（A）W18/L40 | 64 |
Refrigerant | R410a/4.2KG |
Circulating water volume | 500L/min@15m |
Coolant | 50% ethylene glycol aqueous solution |
Working Ambient Temperature | -30℃ ~+55℃ |
| Water inlet and outlet method | Bottom inlet and outlet water |
| IP grade | IPX5（total）/IP66（electric） |
| Weight | 390Kg |

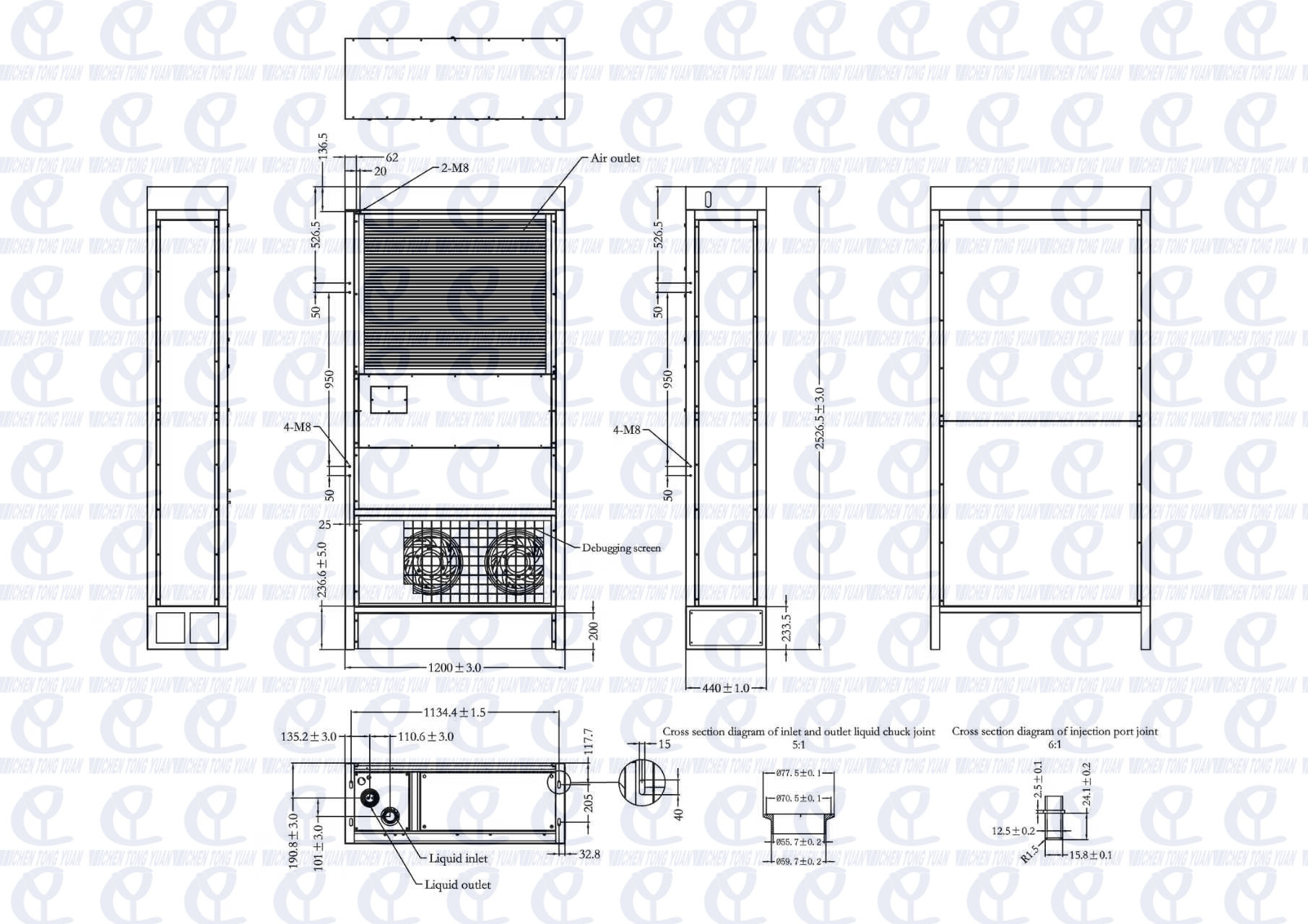

| Overall dimensions（W*D*H） | 1200mm*440mm*2526mm |
| Operating voltage range： | 380VAC±15%，50HZ |
| Operating ambient temperature range： | -30℃ ~+45℃ |
| Operating relative humidity range： | 5%~+95% |
| Working altitude： | 0M~4000M （ Performance decreases by 3% for every 1000m increase at an altitude of 1000m~4000m） |

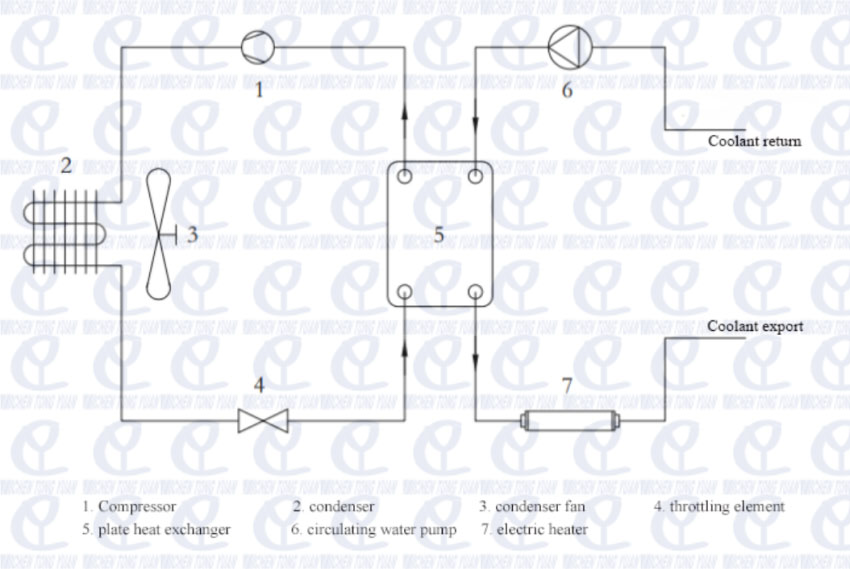

The system operates through a combination of refrigeration and coolant circulation:
Refrigerant absorbs heat generated by battery systems
Heat is transferred through a plate heat exchanger
Coolant circulates to remove heat from battery packs
Heat is discharged through the condenser
This process ensures efficient and stable thermal management for battery energy storage systems.
Application

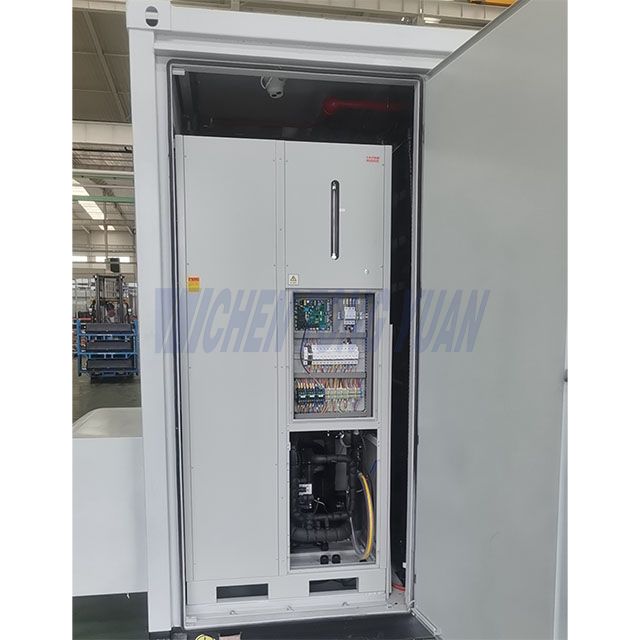

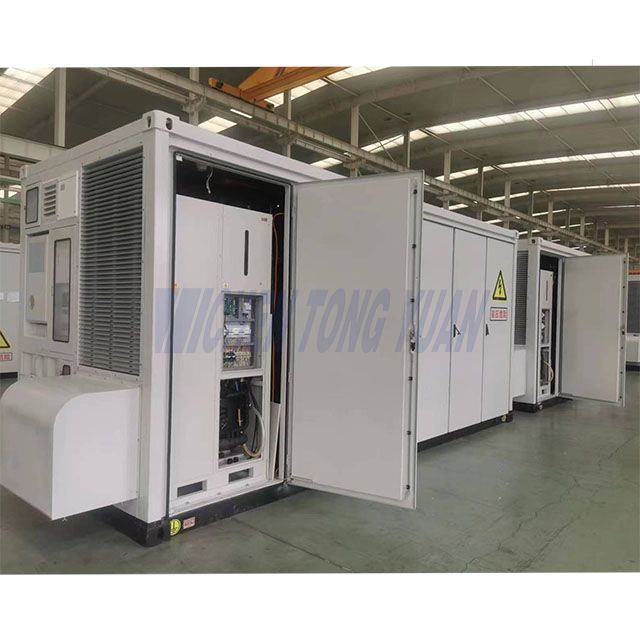

Provides reliable thermal management for large-scale industrial ESS installations.
Supports utility-level energy storage systems requiring continuous and stable operation.
Used in solar and wind energy storage where load conditions fluctuate.
Ensures battery stability in UPS and critical backup applications.
Suitable for applications requiring long-duration and high-load operation.
Widely applied in telecom base stations, hospitals, data centers, and emergency systems.
Options
Model | Voltage | Cooling capacity (KW) | Heating Load (W) | Weight （KG） | Overall dimensions （W*D*H） |
CY-ESSC5( Horizontal plug-in) | 220VAC±15﹪ | 5 | 2.5 | 80 | 700mm*900mm*250mm |
CY-ESSC5 (Vertical plug-in) | 220VAC±15﹪ | 5 | 2.0 | 90 | 1105mm*266mm*800mm |
CY-ESSC8 (Vertical plug-in) | 380VAC±15﹪ | 8 | 2.0 | 110 | 1200mm*266mm*1040mm |
CY-ESSC15 (Floor stand) | 380VAC±15﹪ | 15 | 10.0 | 260 | 980mm*617mm*2400mm |
| CY-ESSC20 (Floor stand) | 380VAC±15﹪ | 20 | 10.0 | 400 | 980mm*617mm*2400mm |

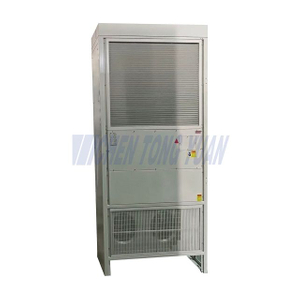

| CY-ESSC30 (Floor stand) | 380VAC±15﹪ | 30 | 12.0 | 390 | 1200mm*440mm*2526mm |
| CY-ESSC40 (Floor stand) | 380VAC±15﹪ | 40 | 6.5 | 420 | 980mm*617mm*2400mm |
| CY-ESSC60 (Floor stand) | 380VAC±15﹪ | 60 | 12.0 | 390 | 1200mm*440mm*2526mm |
Advantages&Why?
We have extensive experience delivering solutions for energy storage and industrial applications.
Our team supports system design, optimization, and integration.
We provide tailored solutions based on project requirements and environments.
From design to deployment, we support complete project delivery.
Products are designed for long-term operation in demanding conditions.
We offer full support from consultation to after-sales service.
Tell us your project requirements and get a tailored battery energy storage thermal management solution.
Customized system design for industrial applications
Engineering consultation for complex projects
Fast response to meet project timelines
→Contact us today to find the right 60kW liquid cooling system for your energy storage project.
