DC106-1
Cytech
Telecom, Battery, Integrated
IP 55, IP 65
600W/2047BTU
Product Description

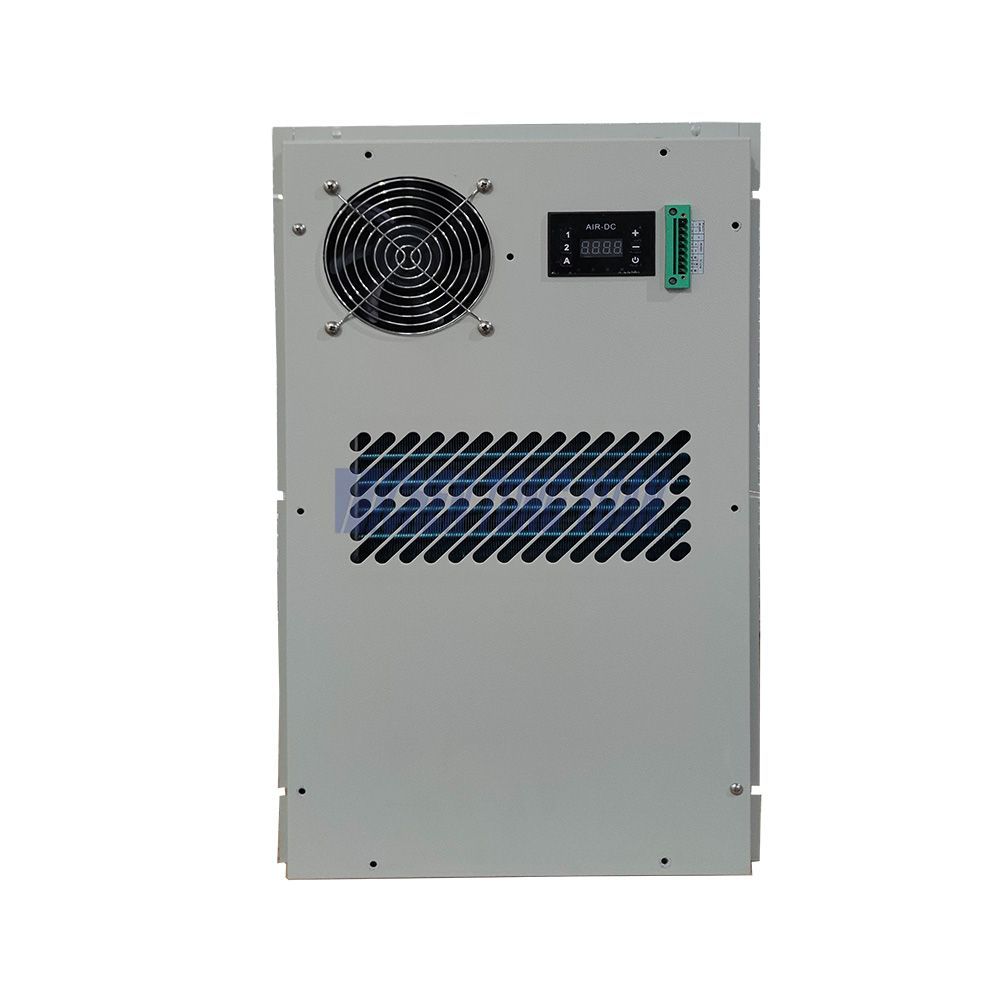

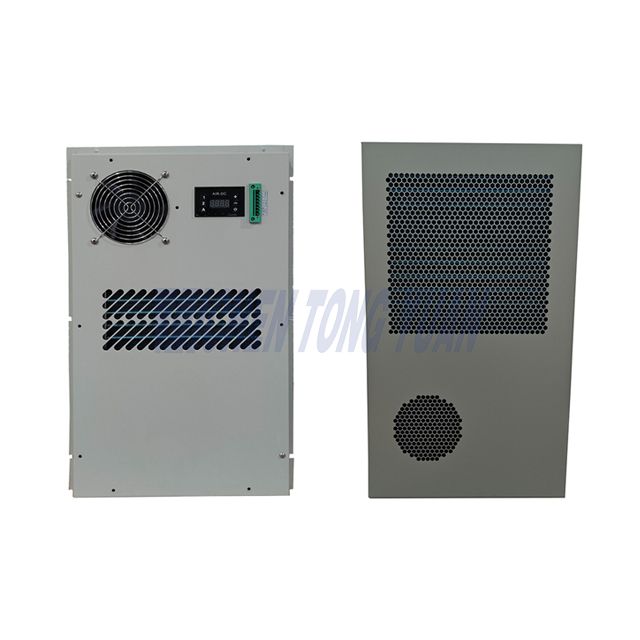

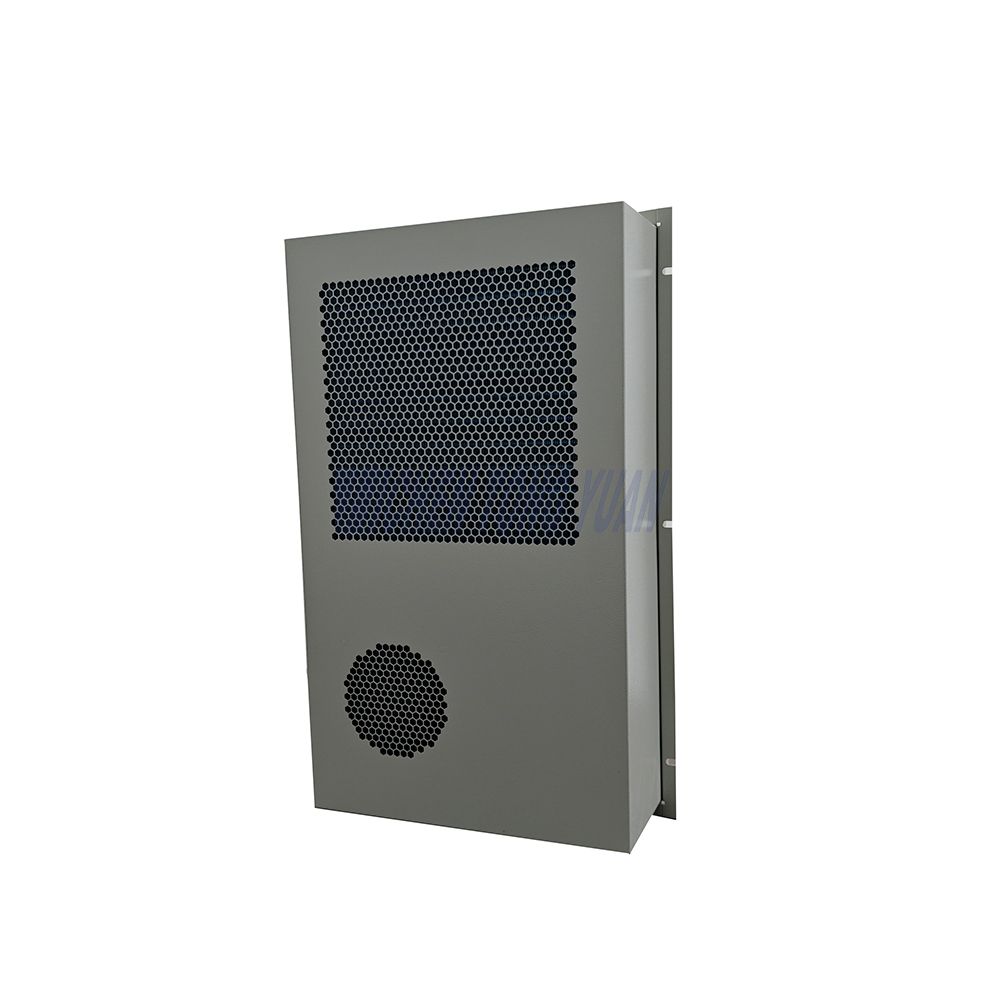

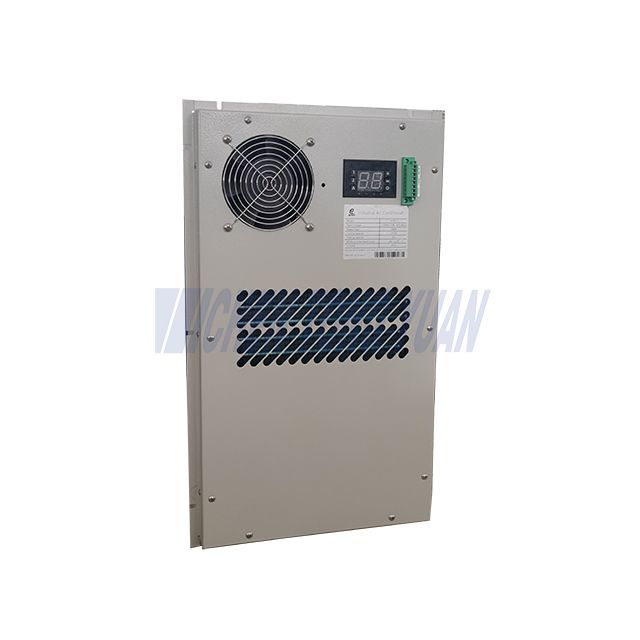

The DC 600W cabinet air conditioner for high temperature environments is designed for small enclosures operating under extreme ambient heat. Its DC-powered compressor provides stable and continuous cooling, while the sealed design protects internal electronics from dust and thermal stress.
Ideal for roadside telecom cabinets, small industrial control units, and other high-temperature installations, this unit ensures reliable operation in challenging conditions.
DC-powered compressor optimized for high-temperature environments
LED temperature display with precise control
RS485 / Modbus-RTU interface for monitoring
Over-temperature alarm and fault protection
Closed-loop cooling prevents dust and moisture entry
Optional low-temperature heater for thermal balance
Corrosion-resistant enclosure
Self-diagnosis and system status monitoring
Compact design for small cabinets
Side-mount or door-mount installation
Name | Cabinet Air Conditiner DC 600 W |
Model | DC106-1 |
Main power supply | -48VDC(-DC44~-59V) |
Cooling capacity(Rated) | 600W@L35/L35 |
Power consumption(Rated) | 200W@L35/L35 |
Heating capacity（optional） | 500W |
Air flow | 150m3/h |
Cooling current (rated/Max.) | 14.8A/19.0A |
Work temp. range | -40℃~+55℃ |
Noise | 60dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 18KG |
Refrigerant | R134a |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Cabinet Air Conditioner Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
Application
Outdoor cabinets in desert or tropical regions
Small telecom shelters in hot climates
Roadside instrumentation cabinets
Remote monitoring and control units exposed to heat
Industrial enclosures in furnace or high ambient temperature zones
Options
Model | Voltage | Nominal cooling capacity(W) (L35/L35) | Nominal cooling capacity(Btu/hr) (L35/L35) | Power consumption(W)(L35/L35) | IP Grade | Heater (W)(option) | Internal air flow (m3/h) | Refrigerant | Noise (dbA) |
CYDC105-1 | -48VDC(DC-44~-59V) | 1700 | 180 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC106-1 | -48VDC(DC-44~-59V) | 600 | 2050 | 200 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 |
CYDC110-1 | -48VDC(DC-44~-59V) | 3400 | 295 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC115-1 | -48VDC(DC-44~-59V) | 5100 | 495 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC120-1 | -48VDC(DC-44~-59V) | 6800 | 710 | IP55,NEMA 4, NEMA 4X | 1000 | 700 | R134a | 69 | |
CYDC130-1 | -48VDC(DC-44~-59V) | 10200 | 1000 | IP55,NEMA 4, NEMA 4X | 1000 | 900 | R134a | 69 | |
CYDC140-1 | -48VDC(DC-44~-59V) | 13650 | 1350 | IP55,NEMA 4, NEMA 4X | 1000 | 1100 | R134a | 72 |
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&Why?
Whether in industrial plants or outdoor telecom sites, our AC units maintain stable temperatures, safeguarding critical electronics.
Prevents overheating, condensation, and equipment downtime with a trusted, high-performance cooling system.
Reduce operational costs without compromising on reliability, thanks to smart design and low energy consumption.
Decades years of experience
Global supply capability
Customized cooling solutions
Fast delivery and technical support
Widely used in telecom, utilities, transportation, and energy storage industries
Cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
