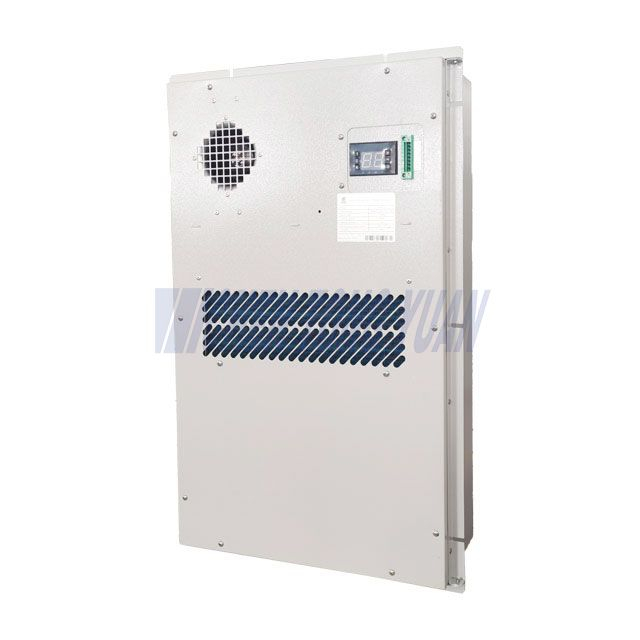

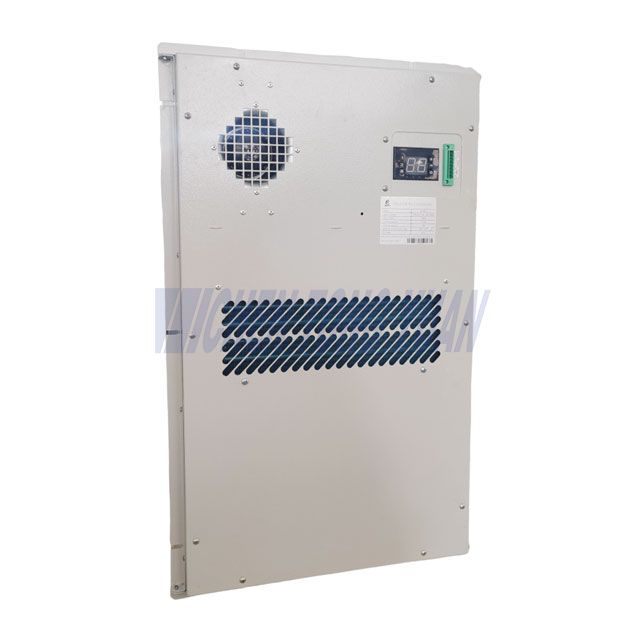

Wall-mount DC Powered Enclosure Air Conditioner - 1000W 3400BTU/H

Wall-mount DC Powered Enclosure Air Conditioner - 1000W 3400BTU/H Product Video

Wall-mount DC Powered Enclosure Air Conditioner - 1000W 3400BTU/H Certificate

Wall-mount DC Powered Enclosure Air Conditioner - 1000W 3400BTU/H Features

Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃

Thermal cycle and air flow of Wall-mount DC Powered Enclosure Air Conditioner - 1000W 3400BTU/H

Enclosure Air Conditioner Cooling Princple: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.

Wall-mount DC Powered Enclosure Air Conditioner - 1000W 3400BTU/H Features

◆Enclosure Air Conditioner also can keep the dust and heat outside the cabinet,avoiding problems from using fan;

◆The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system;

◆Compact structure ,reasonable design and easy maintenance;

◆Digital temperature controller and high precision of temperature control;

◆The Enclosure Air Conditioner heating function and the hydrogen function is optional;

◆Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;

◆Dry contact alarm output,NO/NC optional;

◆LED display, all the settings can changed at the field

◆Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU);

◆Fit for harsh condition (T3), R134a refrigerant .

Enclosure Air Conditioner  Flexibility

Enclosure Air Conditioner Cooling capacity ranges from 300w to 5000w

Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V

Enclosure Air Conditioner is widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.

Remote monitoring system supported, communication protocol is RS485

More Optionals of Enclosure Air Conditioner

DC48V power enclosure air conditioner

Other models of enclosure air conditioner

How to Choose an Enclosure Air Conditioner

Choosing the right enclosure air conditioner is critical to ensure the protection and optimal performance of sensitive equipment in harsh environments. An industrial cabinet air conditioner helps maintain stable internal temperatures, preventing overheating and ensuring reliability. Here’s a guide on how to choose the right industrial electrical cabinet air conditioner for your needs.

Key Considerations for Selecting an Enclosure Air Conditioner:

1. Acceptable Temperature Range for Your Equipment

The enclosure air conditioner must be capable of maintaining the ideal temperature for your equipment. Overheating can cause significant damage, so ensure that the air conditioning system can operate within the required temperature range for optimal performance.

2. Heat Load of Equipment

Every industrial enclosure has a heat load determined by the equipment inside. The industrial cabinet air conditioners should be sized to handle this heat load, providing enough cooling capacity without overburdening the system.

3. The Highest Local Ambient Temperature

Local climate conditions greatly impact the performance of the industrial enclosure air conditioner. In hot climates, the system should be able to operate efficiently even at high ambient temperatures. Make sure that the air conditioner is designed to handle local environmental extremes.

4. Noise Level

While cooling is crucial, consider the noise level of the enclosure air conditioner, especially if the system will be placed in noise-sensitive areas. Some systems are designed with noise-reduction features to minimize disturbances.

5. Future Expansion

When selecting an industrial electrical cabinet air conditioner, think about future needs. As your equipment grows, your cooling requirements may increase. Choosing an air conditioner with some additional capacity ensures that your system remains effective as your needs expand.

By addressing these factors, you can choose an enclosure air conditioning system that meets your needs and guarantees long-term, reliable cooling performance.

Normative Standards for Enclosure Air Conditioner

When selecting an industrial enclosure air conditioner, ensure that it complies with relevant standards to guarantee safety and performance:

• <GB 4208> – Enclosure Protection Class: Ensures the unit is sealed to protect against dust and water ingress.

• <GB 4706.1> – Safety of Household and Similar Electrical Appliances: Ensures the air conditioner meets electrical safety standards.

• <GB 9237-2001> – Mechanical Refrigerating Systems: Covers safety requirements for refrigerant systems used in air conditioners.

• <GB/T 17626.8> – Electromagnetic Compatibility: Ensures the unit doesn’t interfere with other electronic devices.

•


These standards help ensure that the enclosure air conditioner performs reliably and safely in your application.

Fault Analysis and Solutions for Enclosure Air Conditioner

1. Air Conditioner Not Working Despite Power On

• Possible Causes:

• Power failure or no power

• Cooling set temperature higher than cabinet temperature

• System fault

• Solutions:

• Check the power supply and electric circuit

• Adjust cooling temperature to the desired level

• Contact professional maintenance for further checks

2. Poor Cooling Effect

• Possible Causes:

• The cooling capacity doesn’t match the heat load

• Ambient temperature too high

• Other system faults

• Solutions:

• Choose a higher-capacity industrial enclosure air conditioner if needed

• Ensure the system operates within the recommended temperature range

• Seek professional maintenance for system diagnostics

3. Air Conditioner Stops Suddenly, Electric System Normal

• Possible Causes:

• Cabinet temperature has reached or exceeded the cooling set point

• Other system issues

• Solutions:

• Adjust the cooling set temperature to prevent shutdowns

• Contact professional maintenance for further checks

Warranty for Enclosure Air Conditioner

Warranty Period:

The warranty period typically lasts 12 months from the product's operational start or up to 18 months from the delivery date, depending on the agreement with the manufacturer.

Warranty Coverage:

The warranty of enclosure air conditioner covers defects or failures caused by manufacturing issues during the warranty period. However, the following issues are not covered:

• Failures outside the warranty period

• Missing product labels

• Damage due to improper installation, maintenance, or operation

• Failures caused by other equipment or software

• Unauthorized repairs or modifications

• Damage caused by force majeure events like fires or floods

Conclusion

Selecting the right enclosure air conditioner is vital for ensuring the protection of industrial equipment in harsh environments. By considering factors like temperature range, heat load, and local climate conditions, you can choose an industrial cabinet air conditioner that meets your needs. Make sure the system complies with industry standards and be prepared to troubleshoot common issues. With the right industrial electrical cabinet air conditioner, you can maintain optimal conditions for your sensitive equipment and improve system reliability.
