DC110-1
Cytech
Telecom, Battery, Integrated
IP 55, IP 65
1000W/3400BTU

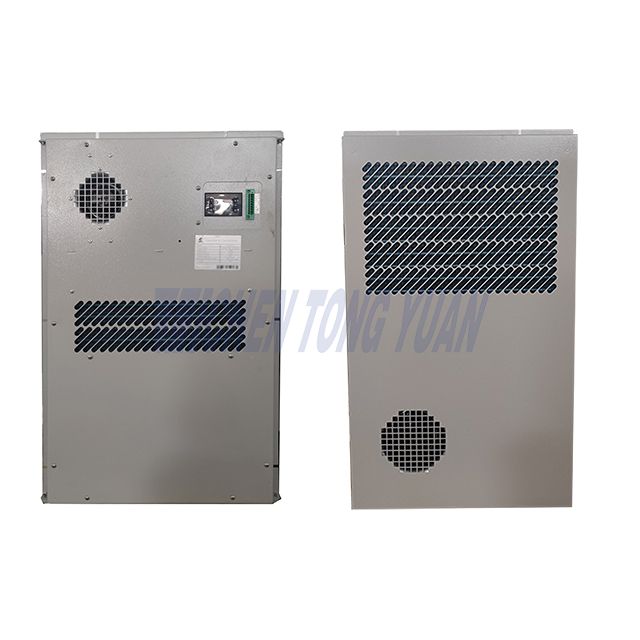

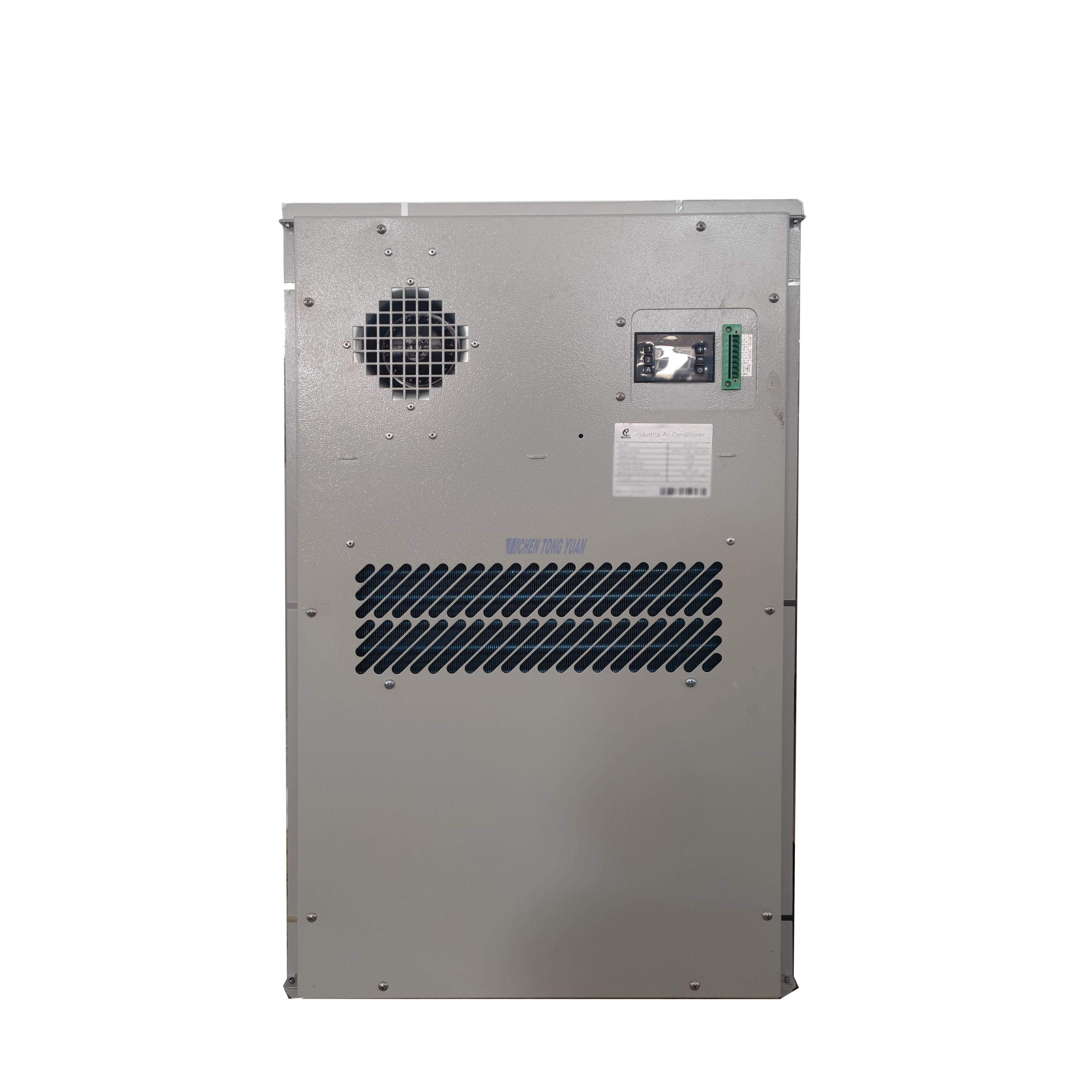

Product Description
The DC1000W enclosure air conditioners are specifically developed for cabinets installed in harsh outdoor environments, using a fully sealed closed-loop cooling system to maintain stable internal temperatures.
Designed for harsh environment cabinets, these units perform reliably in locations exposed to high ambient temperatures, dust, humidity, and corrosive air, where conventional ventilation solutions are unable to provide sufficient protection.
Their DC-powered architecture and compact structure make them suitable for outdoor cabinets requiring continuous operation with minimal maintenance.
High-efficiency DC cooling system designed for harsh environment cabinets
Closed-loop cooling prevents dust, rain, and moisture from entering the cabinet
Optimized for enclosure air conditioners for harsh environment applications
Intelligent temperature controller with automatic regulation
Over-temperature protection to safeguard cabinet-mounted electronics
Corrosion-resistant housing for outdoor cabinet installations
Low-maintenance operation for remote and unattended cabinets
Flexible installation: side-mount or door-mount on cabinets
Name | Eclosure Air Conditiners DC 1000 W |
Model | DC110-1 |
Main power supply | -48VDC(-DC44~-59V) |
Cooling capacity(Rated) | 1000W@L35/L35 |
Power consumption(Rated) | 280W@L35/L35 |
Heating capacity（optional） | 500W |
Air flow | 450m3/h |
Cooling current (rated/Max.) | 14.8A/19.0A |
Work temp. range | -40℃~+55℃ |
Noise | 65dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 31KG |
Refrigerant | R134a |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Enclosure Air Conditioners Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
Application
Outdoor telecom and communication cabinets
Remote monitoring and control cabinets
Solar-powered and off-grid equipment cabinets
Roadside and pole-mounted outdoor cabinets
Mining, desert, and coastal environment cabinets
High-temperature industrial outdoor cabinets
Options
Model | Voltage | Nominal cooling capacity(W) (L35/L35) | Nominal cooling capacity(Btu/hr) (L35/L35) | Power consumption(W)(L35/L35) | IP Grade | Heater (W)(option) | Internal air flow (m3/h) | Refrigerant | Noise (dbA) |
CYDC105-1 | -48VDC(DC-44~-59V) | 1700 | 180 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC106-1 | -48VDC(DC-44~-59V) | 600 | 2050 | 200 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 |
CYDC110-1 | -48VDC(DC-44~-59V) | 3400 | 295 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC115-1 | -48VDC(DC-44~-59V) | 5100 | 495 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC120-1 | -48VDC(DC-44~-59V) | 6800 | 710 | IP55,NEMA 4, NEMA 4X | 1000 | 700 | R134a | 69 | |
CYDC130-1 | -48VDC(DC-44~-59V) | 10200 | 1000 | IP55,NEMA 4, NEMA 4X | 1000 | 900 | R134a | 69 | |
CYDC140-1 | -48VDC(DC-44~-59V) | 13650 | 1350 | IP55,NEMA 4, NEMA 4X | 1000 | 1100 | R134a | 72 |
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&Why?
Whether in industrial plants or outdoor telecom sites, our AC units maintain stable temperatures, safeguarding critical electronics.
Prevents overheating, condensation, and equipment downtime with a trusted, high-performance cooling system.
Reduce operational costs without compromising on reliability, thanks to smart design and low energy consumption.
Decades years of experience
Global supply capability
Customized cooling solutions
Fast delivery and technical support
Widely used in telecom, utilities, transportation, and energy storage industries
Cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
