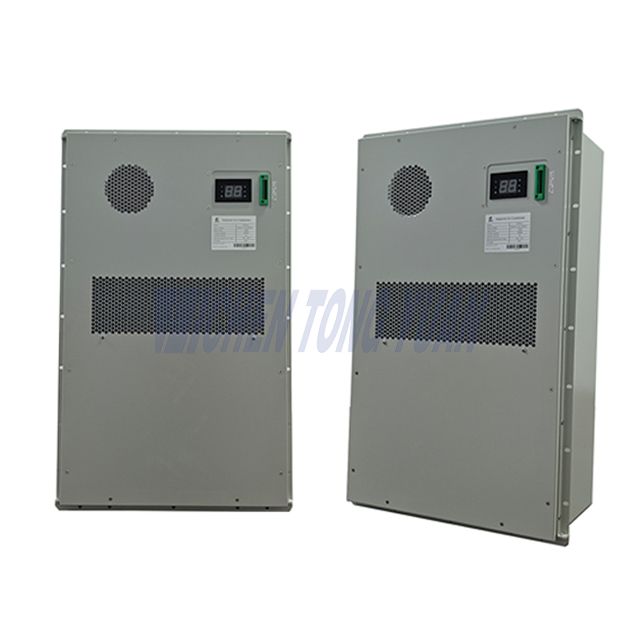

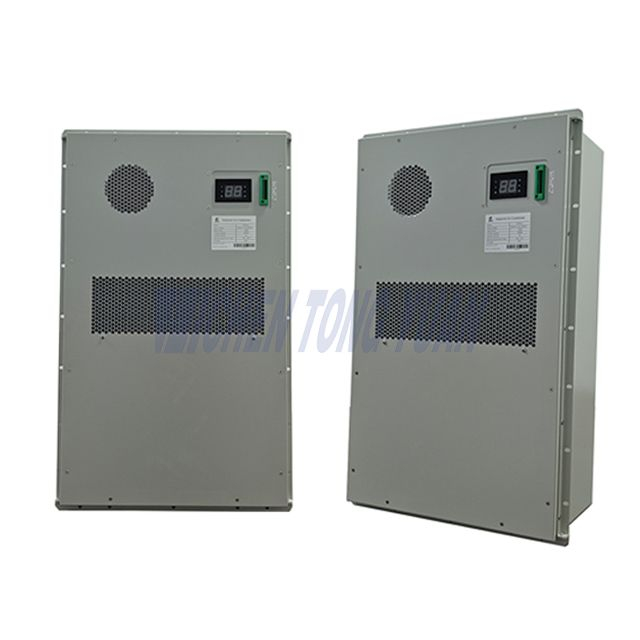

DC125-1
CYTECH
Telecom, Battery, Integrated
IP 55, IP 65
Half-embeded Mount, Door Mount
2500W/8532BTU
Product Description
The DC2500W enclosure ac is engineered for energy storage enclosure cooling and DC power system cabinets. Its closed-loop enclosure cooling design provides stable thermal control for enclosures housing batteries and power electronics under continuous operation.
Designed with a robust enclosure structure, corrosion-resistant materials, and controlled noise performance, this high-power enclosure ac supports reliable operation in energy storage systems where thermal stability is critical to system safety and long-term performance.
The intelligent control platform allows the enclosure ac unit to manage cooling output based on internal heat conditions, monitor system status, and activate alarms to prevent overheating in critical power enclosures.
High-capacity DC compressor for enclosure ac systems
Digital temperature controller with precise regulation
RS485 / Modbus-RTU communication for power system integration
Over-temperature alarm and protection
Closed-loop enclosure ac design prevents external contamination
Optional heater for low-temperature power environments
Anti-corrosion design for energy storage installations
Intelligent self-diagnosis and monitoring
Designed for long-term DC operation
Flexible installation for large enclosures
Name | Enclosure ac DC 2500 W |
Model | DC120-1/A10NA0E |
Main power supply | -48VDC(-DC44~-59V) |
Cooling capacity(Rated) | 2500W@L35/L35 |
Power consumption(Rated) | 710W@L35/L35 |
Heating capacity（optional） | 1000W |
Air flow | 700m3/h |
Cooling current (rated/Max.) | 14.8A/19.0A |
Work temp. range | -40℃~+55℃ |
Noise | 69dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 33KG |
Refrigerant | R134a |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Industrial Enclosure ac Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
Application
Battery energy storage system (BESS) enclosures
Power conversion and inverter cabinets
DC power distribution enclosures
Energy infrastructure equipment shelters
Utility-scale energy storage cabinets
Power system control enclosures
Options
Model | Voltage | Nominal cooling capacity(W) (L35/L35) | Nominal cooling capacity(Btu/hr) (L35/L35) | Power consumption(W)(L35/L35) | IP Grade | Heater (W)(option) | Internal air flow (m3/h) | Refrigerant | Noise (dbA) |
CYDC105-1 | -48VDC(DC-44~-59V) | 1700 | 180 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC106-1 | -48VDC(DC-44~-59V) | 2050 | 200 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC110-1 | -48VDC(DC-44~-59V) | 3400 | 295 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC115-1 | -48VDC(DC-44~-59V) | 5100 | 495 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC120-1 | -48VDC(DC-44~-59V) | 2000 | 6800 | 710 | IP55,NEMA 4, NEMA 4X | 1000 | 700 | R134a | 69 |
CYDC130-1 | -48VDC(DC-44~-59V) | 10200 | 1000 | IP55,NEMA 4, NEMA 4X | 1000 | 900 | R134a | 69 | |
CYDC140-1 | -48VDC(DC-44~-59V) | 13650 | 1350 | IP55,NEMA 4, NEMA 4X | 1000 | 1100 | R134a | 72 |
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&Why?
Whether in industrial plants or outdoor telecom sites, our AC units maintain stable temperatures, safeguarding critical electronics.
Prevents overheating, condensation, and equipment downtime with a trusted, high-performance cooling system.
Reduce operational costs without compromising on reliability, thanks to smart design and low energy consumption.
Decades years of experience
Global supply capability
Customized cooling solutions
Fast delivery and technical support
Widely used in telecom, utilities, transportation, and energy storage industries
Cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
