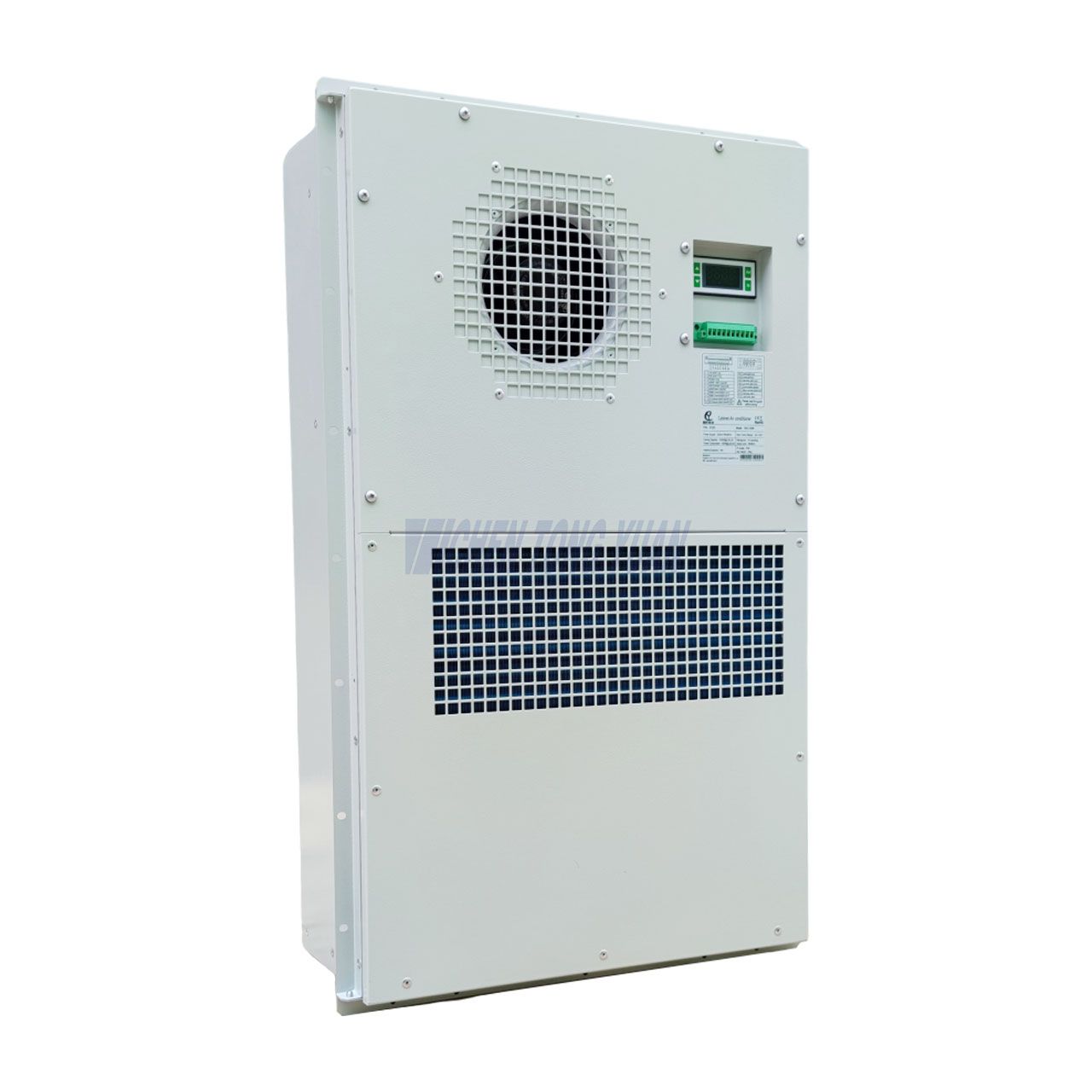

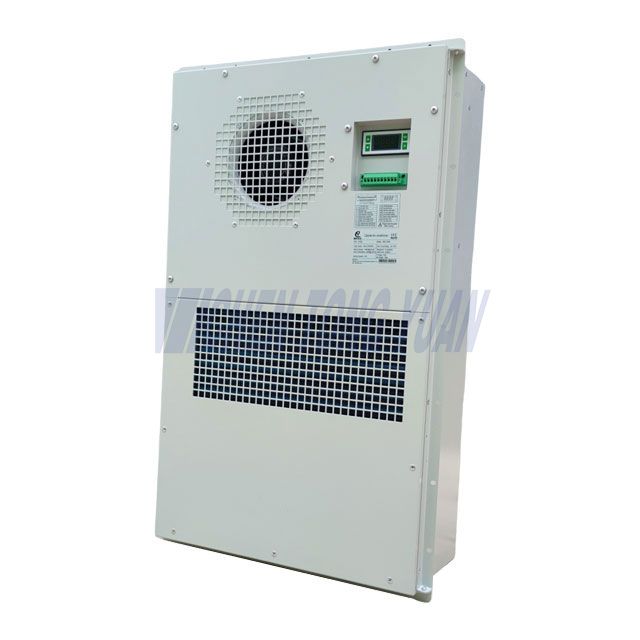

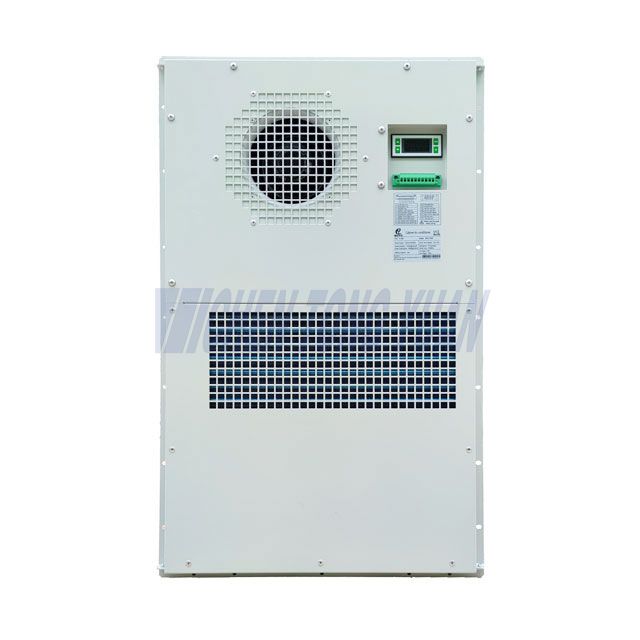

NEMA4 NEMA4X Industrial Panel Air Conditioner - DC48V 2000W 6800BTU/H

NEMA4 NEMA4X DC48V Industrial Panel Air Conditioner - 2000W 6800BTU/H Product Video

NEMA4 NEMA4X DC48V Industrial Panel Air Conditioner - 2000W 6800BTU/H Certificate

NEMA4 NEMA4X DC48V Industrial Panel Air Conditioner - 2000W 6800BTU/H Features

Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃

Thermal Cycle and Air Flow of NEMA4 NEMA4X DC48V Industrial Panel Air Conditioner - 2000W 6800BTU/H

Industrial Panel Air Conditioner Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.

NEMA4 NEMA4X DC48V Industrial Panel Air Conditioner - 2000W 6800BTU/H Features

◆ Industrial panel air conditioner also can keep the dust and heat outside the cabinet,avoiding problems from using fan;

◆ The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system;

◆ Compact structure ,reasonable design and easy maintenance;

◆ Digital temperature controller and high precision of temperature control;

◆ The panel air conditioner heating function and the hydrogen function is optional;

◆ Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;

◆ Dry contact alarm output,NO/NC optional;

◆ LED display, all the settings can changed at the field

◆ Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU);

◆ Fit for harsh condition (T3), R134a refrigerant .

Industrial Panel Air Conditioner Flexibility

• The Industrial Panel Air Conditioner offers cooling capacities ranging from 300W to 5000W, with voltage options including AC220V 50Hz, AC220V 60Hz, AC110V 60Hz, and DC48V.




• It is widely used in outdoor telecom cabinets, battery cabinets, electric cabinets, and industrial control cabinets, providing efficient cooling in diverse environments.




• The Industrial Panel Air Conditioner also supports remote monitoring via RS485 communication protocol, ensuring easy management and integration.

More Optionals of Industrial Panel Air Conditioner

DC48V Power Industrial Panel Air Conditioner

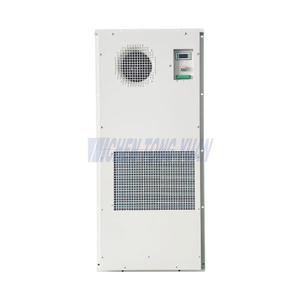

Other Models of Outdoor Cabinet Air Conditioner

How to Choose an Industrial Panel Air Conditioner?

Choosing the right Industrial Panel Air Conditioner is crucial for maintaining the optimal performance and protection of your equipment. Whether you need an industrial enclosure air conditioner to regulate the temperature inside a cabinet or an industrial control panel air conditioner for managing the environment of sensitive machinery, several factors need to be considered. Here’s a comprehensive guide to help you choose the ideal industrial panel AC for your needs.

Key Considerations:

1. Acceptable Temperature Range for Your Equipment

Understanding the temperature requirements of your equipment is vital. Different systems have varying tolerances for temperature fluctuations, and selecting the correct industrial panel air conditioner ensures that the internal temperature stays within an optimal range to avoid overheating and system failure.

2. Heat Load of Equipment

The heat generated by your equipment impacts the cooling requirements of the industrial panel AC. By accurately calculating the heat load, you can match the air conditioner’s capacity to prevent overloading. This ensures efficient cooling and a stable environment for the equipment.

3. The Highest Local Ambient Temperature

The ambient temperature of the installation location must also be factored in when selecting your industrial panel air conditioner. If the external environment has high temperatures, it’s necessary to select a unit with a higher cooling capacity to compensate for the added heat load.

4. Noise Level

Noise levels from the industrial panel AC can be a concern, especially in noise-sensitive areas. Choose a model that provides adequate cooling while keeping the noise to a minimum to maintain a quiet working environment.

5. Future Expansion

If your system is expected to expand, it’s smart to choose an industrial control panel air conditioner that can accommodate future heat loads. Opting for a slightly larger unit ensures that your cooling system won’t need to be upgraded when new equipment is added.

By considering these factors, you’ll be able to select the right Industrial Panel Air Conditioner that meets both your current and future needs.

Normative Standards for Industrial Panel Air Conditioner

To ensure safety, performance, and reliability, industrial enclosure air conditioners must comply with specific industry standards. These include:

• <GB 4208> – Enclosure Protection Class

• <GB 4706.1> – Safety of household and similar electrical appliances

• <GB 9237-2001> – Mechanical refrigerating systems used for cooling and heating - safety requirements

• <GB/T 17626.8> – Electromagnetic compatibility - Testing and measurement techniques - Power frequency magnetic field immunity test

Choosing a industrial panel AC that meets these standards ensures that the unit operates safely and efficiently, reducing the risk of system failures.

Fault Analysis and Solutions for Industrial Panel Air Conditioner

1. Power On, But the Cabinet Temperature is Too High and the Air Conditioner Isn’t Working:

• Causes:

• Power failure or no power

• Cooling set temperature higher than cabinet temperature

• System fault

• Solutions:

• Check the power supply and electric circuit

• Adjust cooling temperature as needed

• Contact professional maintenance if the issue persists

2. The Air Conditioner is Running, But the Cooling Effect is Poor:

• Causes:

• Cooling capacity does not match the load

• High ambient temperature

• Other system faults

• Solutions:

• Add or choose a larger air conditioner

• Ensure the system is operating within the correct temperature range

• Contact professional maintenance for repairs

3. The Machine Stops Suddenly, but the Electric System is Normal:

• Causes:

• Cabinet temperature exceeds or equals the cooling set temperature

• System malfunction

• Solutions:

• Adjust the cooling temperature settings

• Seek professional maintenance




Warranty for Industrial Panel Air Conditioners

Warranty Period:

The typical warranty period for an industrial panel air conditioner is 12 months from the time the product becomes operational, or up to 18 months from the delivery date, depending on the agreement.

Warranty Coverage:

During the warranty period, the manufacturer will repair any product defects or faults caused by inherent quality issues at no additional cost. However, the warranty does not cover:

• Issues arising after the warranty period

• Missing or illegible product labels

• Faults caused by improper installation, maintenance, or operation

• Damage caused by third-party equipment or software

• Unauthorized modifications or repairs

• Damage caused by natural disasters

Conclusion

Choosing the right Industrial Panel Air Conditioner is crucial for maintaining the efficiency and longevity of your industrial equipment. By carefully evaluating factors such as heat load, ambient temperature, noise levels, and potential future expansion, you can make a well-informed decision. Always ensure that the unit meets industry standards and offers comprehensive warranty coverage to safeguard your investment. With the right industrial panel air conditioner, you can ensure reliable cooling and optimal performance for your equipment, even in challenging environmental conditions.
