Product Description

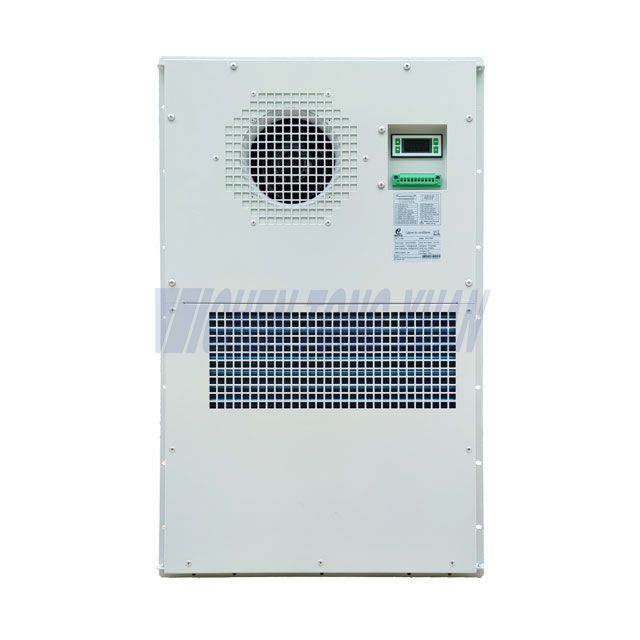

Name | Control Panel Cooling Unit |
Model | DC115-1/A15NA0E |
Main power supply | -48VDC(-DC44~-59V) |
Cooling capacity(Rated) | 1500W@L35/L35 |
Power consumption(Rated) | 495W@L35/L35 |
Heating capacity（optional） | 500W |
Air flow | 450m3/h |
Cooling current (rated/Max.) | 10.3A/15.0A |
Work temp. range | -40℃~+55℃ |
Noise | 65dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 29KG |
Refrigerant | R134a |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Control panel cooling unit cooling princple: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
◆ Control panel cooling unit also can keep the dust and heat outside the cabinet,avoiding problems from using fan;
◆ The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system;
◆ Compact structure ,reasonable design and easy maintenance;
◆ Digital temperature controller and high precision of temperature control;
◆ The Control panel cooling unit heating function and the hydrogen function is optional;
◆ Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
◆ Dry contact alarm output,NO/NC optional;
◆ LED display, all the settings can changed at the field
◆ Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU);
◆ Control panel cooling unit fits for harsh condition (T3), R134a refrigerant .
Flexibility
Control panel cooling unit cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Control panel cooling unit is widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
Options
| Name | Model | Voltage | Nominal cooling capacity(W) (L35/L35) | Nominal cooling capacity(Btu/hr) (L35/L35) | Power consumption(W)(L35/L35) | IP Grade | Heater (W)(option) | Internal air flow (m3/h) | Refrigerant | Noise (dbA) |
| Control panel cooling unit | CYDC105-1 | -48VDC(DC-44~-59V) | 500 | 1700 | 180 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 |
| Control panel cooling unit | CYDC106-1 | -48VDC(DC-44~-59V) | 600 | 2050 | 200 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 |
| Control panel cooling unit | CYDC110-1 | -48VDC(DC-44~-59V) | 1000 | 3400 | 295 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 |
| Control panel cooling unit | CYDC115-1 | -48VDC(DC-44~-59V) | 1500 | 5100 | 495 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 |
| Control panel cooling unit | CYDC120-1 | -48VDC(DC-44~-59V) | 2000 | 6800 | 710 | IP55,NEMA 4, NEMA 4X | 1000 | 700 | R134a | 69 |
| Control panel cooling unit | CYDC130-1 | -48VDC(DC-44~-59V) | 3000 | 10200 | 1000 | IP55,NEMA 4, NEMA 4X | 1000 | 900 | R134a | 69 |
| Control panel cooling unit | CYDC140-1 | -48VDC(DC-44~-59V) | 4000 | 13650 | 1350 | IP55,NEMA 4, NEMA 4X | 1000 | 1100 | R134a | 72 |
Name | Specification |
Air conditioner |
|
Heat exchanger |
|
Combined air conditioner & heat exchanger |
|
TEC |
|
Fan |
|
How to order
Ensure the Control Panel Cooling Unit maintains the equipment’s temperature to prevent overheating and damage.
The industrial cabinet air conditioners must match your equipment’s heat load for optimal performance and efficiency.
Choose a Control Panel Cooling Unit that can handle the highest local ambient temperature for consistent and reliable operation.
If noise is a concern, opt for a low-noise industrial panel air conditioner to maintain a quiet, comfortable working environment.
Consider future growth in equipment and select a Control Panel Cooling Unit that can handle additional load as your needs evolve.
By evaluating these factors, you can select an efficient industrial control panel air conditioner that meets your needs.
Ensures protection against dust and water ingress, especially for outdoor installations of Control Panel Cooling Units.
Guarantees electrical safety in industrial cabinet air conditioners for safe and reliable operation.
Defines safety standards for cooling systems, ensuring safe operation in Control Panel Cooling Units.
Ensures that Control Panel Cooling Units are immune to electromagnetic interference, maintaining equipment integrity.
Cause: Power failure or system fault.
Solution: Check the power and circuit; adjust the cooling temperature as needed.
Cause: Mismatched cooling capacity or high ambient temperature.
Solution: Ensure correct sizing of the Control Panel Cooling Unit or consider adding additional units.
Cause: Cabinet temperature exceeds set temperature.
Solution: Adjust the cooling set temperature and consult maintenance.
Warranty Period: 12-18 months, depending on the agreement.
Warranty Coverage: Free repairs for product defects; damage due to misuse or external factors is not covered.
By considering the temperature range, heat load, noise levels, and future expansion, you can choose a Control Panel Cooling Unit that ensures efficient and reliable performance for your equipment.
