DC110-1 1000w
Cytech
Telecom
IP 55, IP 65
Door Mount
7500W/25597BTU
Product Description

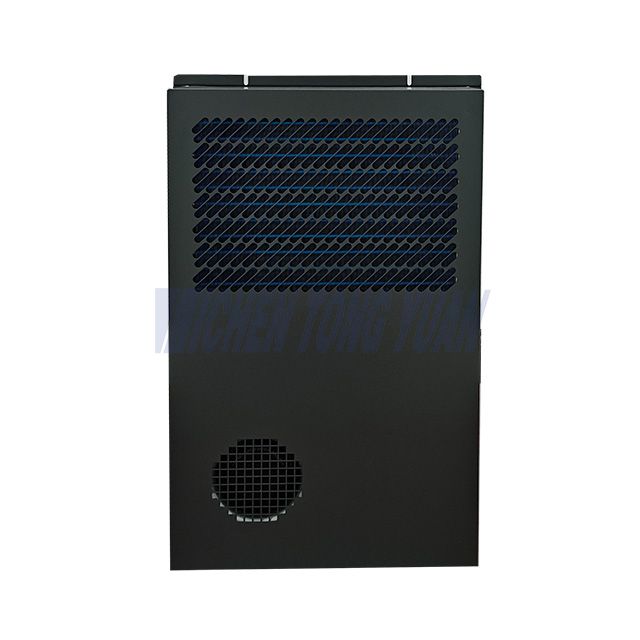

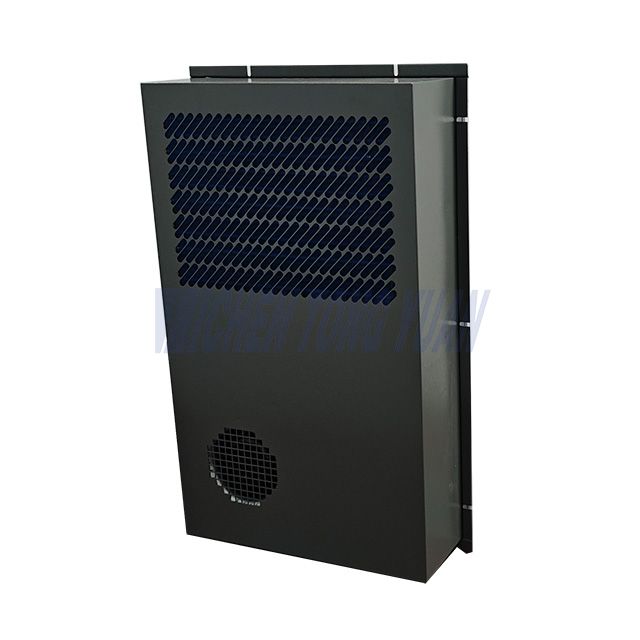

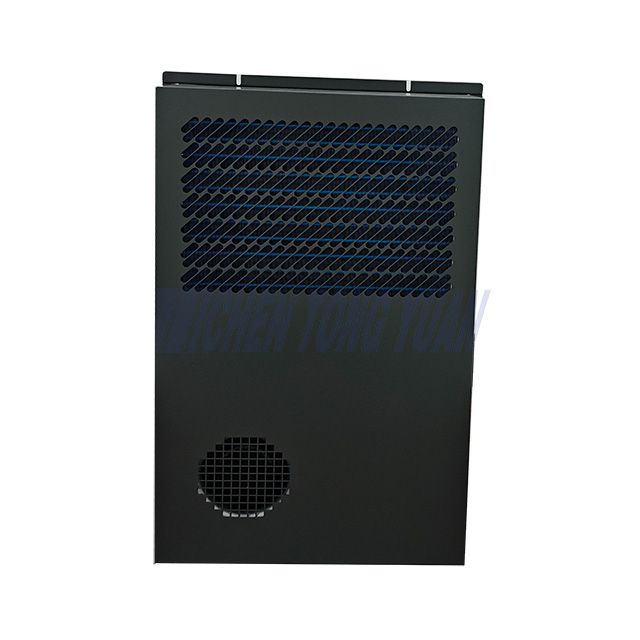

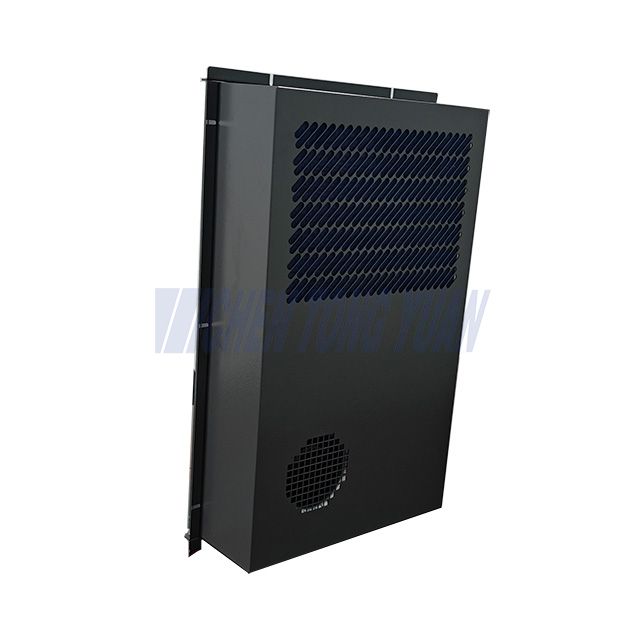

The DC 1000W Electronic Enclosure Air Conditioner delivers precise temperature control for sensitive electronics in telecom and energy storage cabinets. Built for outdoor and remote installations, this unit maintains stable internal conditions even under extreme heat and varying weather.
Featuring a compact footprint, corrosion-resistant enclosure, and low-noise DC cooling, this electronic enclosure air conditioner provides dependable operation with minimal maintenance. It is perfectly suited for battery cabinets, outdoor control panels, and critical equipment shelters that require continuous cooling.
Advanced intelligent controls allow this DC 1000W electronic enclosure air conditioner to automatically regulate cooling output, monitor system status, and alert operators if temperatures rise beyond safe limits. This ensures reliable performance and protection for all enclosed electronics around the clock.
High-efficiency DC compressor
LED digital display with user-friendly controls
RS485 / Modbus-RTU communication interface
Over-temperature alarm and fault protection
Closed-loop cooling: no dust or moisture entry
Optional heater for low-temperature environments
Anti-corrosion design suitable for coastal or industrial regions
Self-diagnosis and real-time system monitoring
Long service life with minimal maintenance
Quick installation: side-mount or door-mount
Name | Enclosure Air Conditioner DC 1000 W |
Model | DC110-1 |
Main power supply | -48VDC(-DC44~-59V) |
Cooling capacity(Rated) | 1000W@L35/L35 |
Power consumption(Rated) | 295W@L35/L35 |
Heating capacity（optional） | 500W |
Air flow | 450m3/h |
Cooling current (rated/Max.) | 14.8A/19.0A |
Work temp. range | -40℃~+65℃ |
Noise | 65dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 31KG |
Refrigerant | R134a |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Industrial ENCLOSURE Air Conditioner Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
Please design and install the product according to the installation holes drawings below.
Equipped with a display LED in internal side of product, can display running, alarm information and parameter.
Attention：
▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.
▶Install vertically and make sure the polarity of wiring is correct and firm.
▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.
▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.
Application
Telecom BTS outdoor cabinets
Wireless communication enclosures
4G/5G base station equipment cabinets
Battery energy storage systems (BESS)
Power distribution cabinets
Industrial automation & control panels
Traffic, ITS, and CCTV pole-mounted enclosures
Remote equipment shelters
Options
Model | Voltage | Nominal cooling capacity(W) (L35/L35) | Nominal cooling capacity(Btu/hr) (L35/L35) | Power consumption(W)(L35/L35) | IP Grade | Heater (W)(option) | Internal air flow (m3/h) | Refrigerant | Noise (dbA) |
CYDC105-1 | -48VDC(DC-44~-59V) | 1700 | 180 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC106-1 | -48VDC(DC-44~-59V) | 2050 | 200 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC110-1 | -48VDC(DC-44~-59V) | 3400 | 295 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC115-1 | -48VDC(DC-44~-59V) | 5100 | 495 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC120-1 | -48VDC(DC-44~-59V) | 2000 | 6800 | 710 | IP55,NEMA 4, NEMA 4X | 1000 | 700 | R134a | 69 |
CYDC130-1 | -48VDC(DC-44~-59V) | 10200 | 1000 | IP55,NEMA 4, NEMA 4X | 1000 | 900 | R134a | 69 | |
CYDC140-1 | -48VDC(DC-44~-59V) | 13650 | 1350 | IP55,NEMA 4, NEMA 4X | 1000 | 1100 | R134a | 72 |
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&Why?
Whether in industrial plants or outdoor telecom sites, our AC units maintain stable temperatures, safeguarding critical electronics.
Prevents overheating, condensation, and equipment downtime with a trusted, high-performance cooling system.
Reduce operational costs without compromising on reliability, thanks to smart design and low energy consumption.
Decades years of experience
Global supply capability
Customized cooling solutions
Fast delivery and technical support
Widely used in telecom, utilities, transportation, and energy storage industries
Cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
