DC130-1/A10NA0E
CY TECH
Product Description

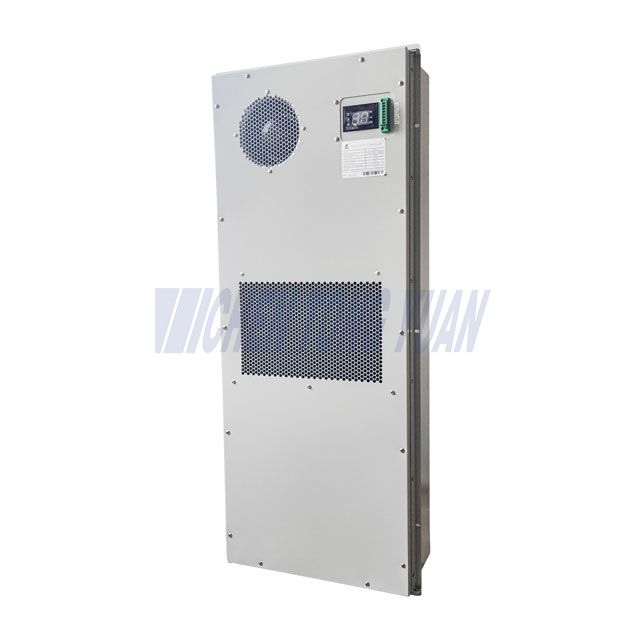

Name | Control Cabinet Air Conditioner |
Model | DC130-1/A10NA0E |
Main power supply | -48VDC(-DC44~-59V) |
Cooling capacity(Rated) | 3000W@L35/L35 |
Power consumption(Rated) | 1000W@L35/L35 |
Heating capacity（optional） | 1000W |
Air flow | 900m3/h |
Cooling current (rated/Max.) | 21.0A/32.0A |
Work temp. range | -40℃~+55℃ |
Noise | 69dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 45KG |
Refrigerant | R134a |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Control Cabinet Air Conditioner Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
◆ Control cabinet air conditioner also can keep the dust and heat outside the cabinet,avoiding problems from using fan;
◆ The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system;
◆ Compact structure ,reasonable design and easy maintenance;
◆ Digital temperature controller and high precision of temperature control;
◆ The Control cabinet air conditioner heating function and the hydrogen function is optional;
◆ Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
◆ Dry contact alarm output,NO/NC optional;
◆ LED display, all the settings can changed at the field
◆ Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU);
◆ Fit for harsh condition (T3), R134a refrigerant .
Flexibility
Control Cabinet Air Conditioner Cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Control Cabinet Air Conditioner is widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
Options
| Name | Model | Voltage | Nominal cooling capacity(W) (L35/L35) | Nominal cooling capacity(Btu/hr) (L35/L35) | Power consumption(W)(L35/L35) | IP Grade | Heater (W)(option) | Internal air flow (m3/h) | Refrigerant | Noise (dbA) |
| Control cabinet air conditioner | CYDC105-1 | -48VDC(DC-44~-59V) | 500 | 1700 | 180 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 |
| Control cabinet air conditioner | CYDC106-1 | -48VDC(DC-44~-59V) | 600 | 2050 | 200 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 |
| Control cabinet air conditioner | CYDC110-1 | -48VDC(DC-44~-59V) | 1000 | 3400 | 295 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 |
| Control cabinet air conditioner | CYDC115-1 | -48VDC(DC-44~-59V) | 1500 | 5100 | 495 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 |
| Control cabinet air conditioner | CYDC120-1 | -48VDC(DC-44~-59V) | 2000 | 6800 | 710 | IP55,NEMA 4, NEMA 4X | 1000 | 700 | R134a | 69 |
| Control cabinet air conditioner | CYDC130-1 | -48VDC(DC-44~-59V) | 3000 | 10200 | 1000 | IP55,NEMA 4, NEMA 4X | 1000 | 900 | R134a | 69 |
| Control cabinet air conditioner | CYDC140-1 | -48VDC(DC-44~-59V) | 4000 | 13650 | 1350 | IP55,NEMA 4, NEMA 4X | 1000 | 1100 | R134a | 72 |
Name | Specification |
Air conditioner |
|
Heat exchanger |
|
Combined air conditioner & heat exchanger |
|
TEC |
|
Fan |
|
How to order
Ensure the control cabinet air conditioner can maintain a stable temperature within the acceptable range for your equipment. This is crucial to prevent overheating and protect your sensitive components.
Evaluate the heat load generated by your equipment. The control cabinet cooling system should match the cooling capacity to this load to ensure efficiency and optimal performance.
The control cabinet air conditioner must be able to handle the highest local ambient temperature. Ensure the system is capable of operating effectively in extreme environmental conditions.
In noise-sensitive environments, it’s important to choose a low-noise control cabinet air conditioner. This ensures that your working environment remains comfortable without unnecessary distractions.
Consider potential growth in both your equipment and heat load. Opt for a control cabinet air conditioner that can scale and accommodate future needs to avoid the need for upgrades down the line.
Ensures the control cabinet air conditioner is protected against dust and water ingress, essential for outdoor installations.
Guarantees that the control cabinet cooling system meets safety standards to prevent electrical hazards.
Sets safety guidelines for the control cabinet air conditioner to ensure it complies with industry refrigerating standards.
Ensures that the control cabinet cooling system is immune to electromagnetic interference, preserving the integrity of your equipment.
