DC130-1
Cytech
Telecom, Battery, Integrated
IP 55, IP 65
3000W/10200BTU
Product Description

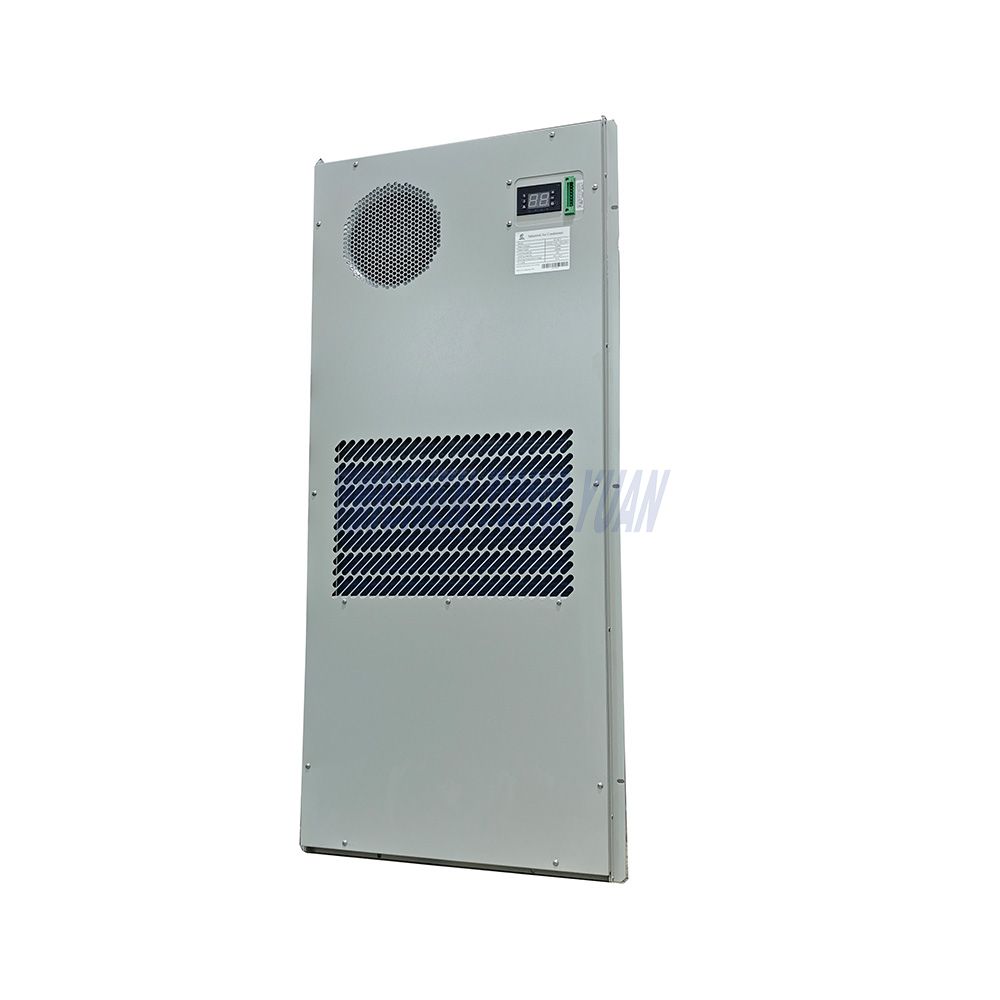

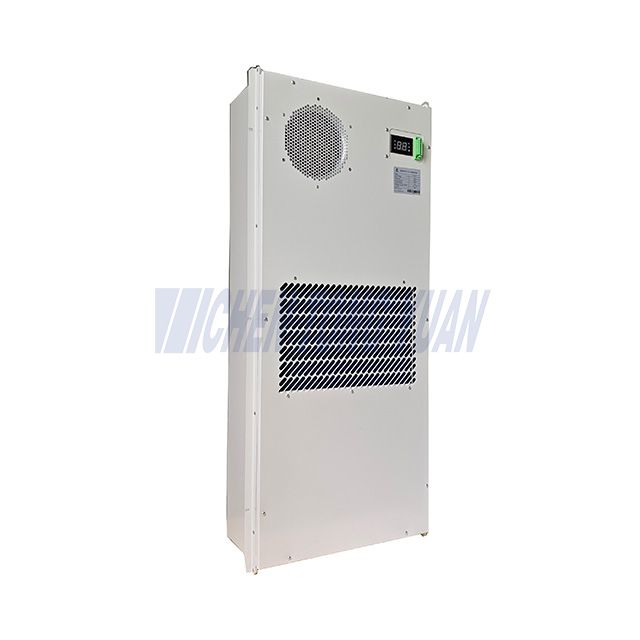

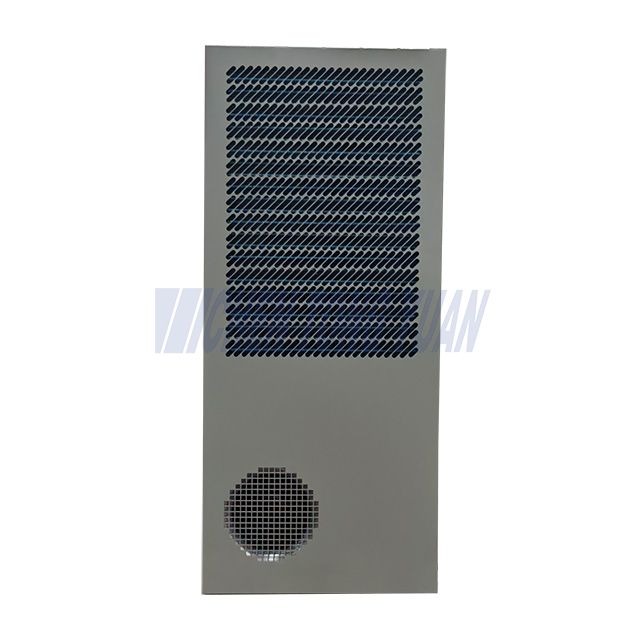

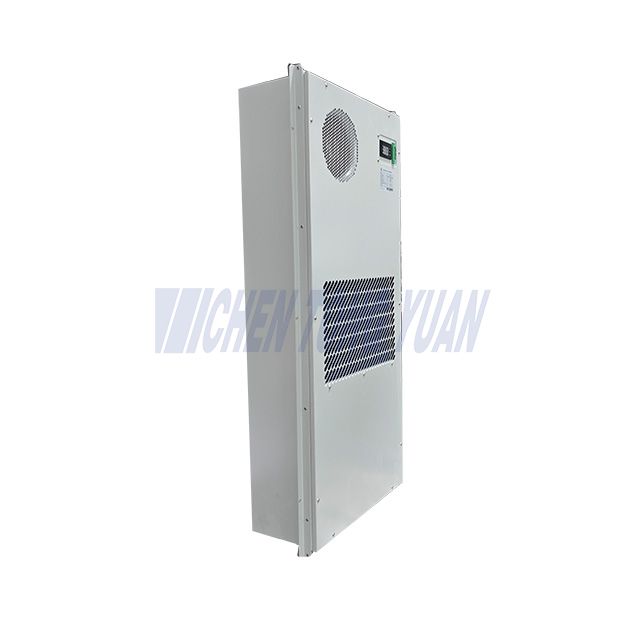

The DC 3000W cabinet air conditioner for industrial control cabinet is engineered for precise thermal management of industrial automation panels, PLC racks, and electrical control enclosures. Its DC-powered system ensures stable, continuous operation while maintaining consistent internal temperatures even in high-load industrial environments.
Compact, robust, and corrosion-resistant, it is ideal for indoor or field-deployed control cabinets requiring long-term reliability.
DC-powered compressor optimized for industrial cabinets
LED digital interface for temperature control
RS485 / Modbus-RTU interface for centralized monitoring
Over-temperature alarm and fault protection
Closed-loop cooling prevents dust and moisture entry
Optional heater for low-temperature or cold-start environments
Anti-corrosion coating for harsh factory environments
Self-diagnosis and real-time performance feedback
Long service life with minimal maintenance
Side-mount or door-mount installation options
Name | Cabinet Air Conditioner DC 3000 W |
Model | DC130-1 |
Main power supply | -48VDC(-DC44~-59V) |
Cooling capacity(Rated) | 3000W@L35/L35 |
Power consumption(Rated) | 860W@L35/L35 |
Heating capacity（optional） | 1000W |
Air flow | 900m3/h |
Cooling current (rated/Max.) | 14.8A/19.0A |
Work temp. range | -40℃~+55℃ |
Noise | 63dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 53KG |
Refrigerant | R134a |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Cabinet Air Conditioner Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
Application
PLC and automation control panels
Electrical distribution cabinets
Factory instrumentation cabinets
Industrial process control enclosures
Energy management control panels
Remote industrial control shelters
Options
Model | Voltage | Nominal cooling capacity(W) (L35/L35) | Nominal cooling capacity(Btu/hr) (L35/L35) | Power consumption(W)(L35/L35) | IP Grade | Heater (W)(option) | Internal air flow (m3/h) | Refrigerant | Noise (dbA) |
CYDC105-1 | -48VDC(DC-44~-59V) | 1700 | 180 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC106-1 | -48VDC(DC-44~-59V) | 2050 | 200 | IP55,NEMA 4, NEMA 4X | 500 | 150 | R134a | 60 | |
CYDC110-1 | -48VDC(DC-44~-59V) | 3400 | 295 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC115-1 | -48VDC(DC-44~-59V) | 5100 | 495 | IP55,NEMA 4, NEMA 4X | 500 | 450 | R134a | 65 | |
CYDC120-1 | -48VDC(DC-44~-59V) | 6800 | 710 | IP55,NEMA 4, NEMA 4X | 1000 | 700 | R134a | 69 | |
CYDC130-1 | -48VDC(DC-44~-59V) | 3000 | 10200 | 1000 | IP55,NEMA 4, NEMA 4X | 1000 | 900 | R134a | 69 |
CYDC140-1 | -48VDC(DC-44~-59V) | 13650 | 1350 | IP55,NEMA 4, NEMA 4X | 1000 | 1100 | R134a | 72 |
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&Why?
Whether in industrial plants or outdoor telecom sites, our AC units maintain stable temperatures, safeguarding critical electronics.
Prevents overheating, condensation, and equipment downtime with a trusted, high-performance cooling system.
Reduce operational costs without compromising on reliability, thanks to smart design and low energy consumption.
Decades years of experience
Global supply capability
Customized cooling solutions
Fast delivery and technical support
Widely used in telecom, utilities, transportation, and energy storage industries
Cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
