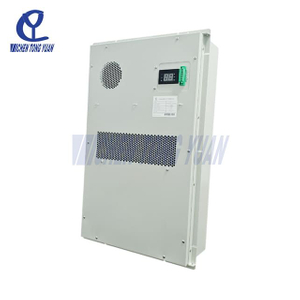

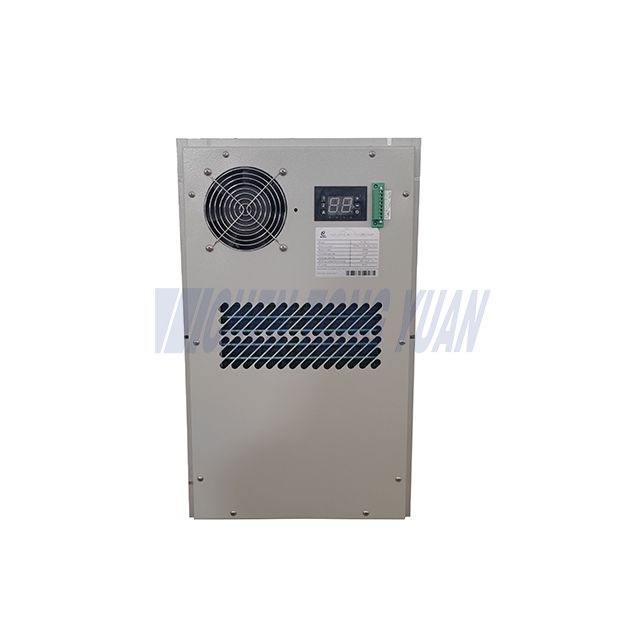

400W 1360BTU Electrical Enclosure Cooling System

Eelectrical cabinet air conditioner or electrical panel ac unit achieves heat absorption refrigeration through compression refrigeration, transferring the heat emitted by the equipment inside the cabinet to the outside of the cabinet in a closed environment. The high temperature, dust and other dirty gases outside the cabinet will not enter the interior, thus solving a series of problems caused by fan heat dissipation. The interior of the cabinet can always maintain an ideal temperature environment of around 30 ℃, effectively ensuring the stability of electronic equipment.

◆ AC110V 60HZ power input
◆ 400W cooling capacity (optional configured with heater)
◆ High efficiency rotary compressor:Reliable & energy saving
◆ LED display:Parameters setting and operation display
◆ IP55 High protection level:Application in outdoors perfectly
◆ Wide operating temperature range:Adapt to all conditions
  • CYAC104-2

  • Cytech

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

400W 1360BTU Electrical Enclosure Cooling System Product Video




400W 1360BTU Electrical Enclosure Cooling System Certificate




400W 1360BTU Electrical Enclosure Cooling System Introduction


Electrical Enclosure Cooling System or electrical panel ac unit is actively cooling by compressor ,it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet,avoiding problems from using fan. The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system.



400W 1360BTU Electrical Enclosure Cooling System Specifications


1.Technical parameter


Name Electrical Enclosure Cooling
Model

CYAC104-2

Main power supply 1~110VAC±15% 60Hz 1 phase
Cooling capacity(Rated) 400W@L35/L35
Power consumption(Rated) 215W@L35/L35
Heating capacity(optional) 500W
Air flow 110m3/h
Work temp. range -40℃~+55℃
Noise 60dB(A)
IP Grade IP55,NEMA 4,NEMA 4X
Net Weight 25KG
Refrigerant R134a

Note:@L35/L35 is Internal temperature 35℃, ambient temperature 35℃



2. Thermal cycle and air flow

Electrical Enclosure Cooling System Cooling Princple: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.

outdoor cabinet air conditioner cycle



Electrical Enclosure Cooling  Features


◆Electrical Enclosure Cooling  also can keep the dust and heat outside the cabinet,avoiding problems from using fan;

◆The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system;

◆Compact structure ,reasonable design and easy maintenance;

◆Digital temperature controller and high precision of temperature control;

◆Electrical Enclosure Cooling heating function and the hydrogen function is optional;

◆Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;

◆Dry contact alarm output,NO/NC optional;

◆LED display, all the settings can changed at the field

◆Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU);

◆Electrical Enclosure Cooling fits for harsh condition (T3), R134a refrigerant .



Electrical Enclosure Cooling System Flexibility


Electrical Enclosure Cooling System Cooling capacity ranges from 300w to 5000w

Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V

Electrical Enclosure Cooling System is widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.

Remote monitoring system supported, communication protocol is RS485



More option for Electrical Enclosure Cooling System


220VAC 50HZ power Electrical Enclosure Cooling System

Model

Voltage

Nominal cooling capacity(W) (L35/L35)

Nominal cooling capacity(Btu/hr) (L35/L35)

Power consumption(W)(L35/L35)

IP Grade

Heater (W)(option)

Internal air flow (m3/h)

Refrigerant

Noise (dbA)

CYAC103-2

220VAC 50Hz

300

1020

170

IP55,NEMA 4, NEMA 4X

500

100

R134a

56

CYAC104-2

220VAC 50Hz

400

1360

215

IP55,NEMA 4, NEMA 4X

500

110

R134a

56

CYAC105-2

220VAC 50Hz

500

1700

280

IP55,NEMA 4, NEMA 4X

500

120

R134a

56

CYAC110-2

220VAC 50Hz

1000

3400

430

IP55,NEMA 4, NEMA 4X

1000

230

R134a

62

CYAC112-2

220VAC 50Hz

1200

4080

498

IP55,NEMA 4, NEMA 4X

1000

240

R134a

62

CYAC113-2

220VAC 50Hz

1300

4440

532

IP55,NEMA 4, NEMA 4X

1000

260

R134a

63

CYAC115-2

220VAC 50Hz

1500

5100

600

IP55,NEMA 4, NEMA 4X

1000

300

R134a

63

CYAC120-2

220VAC 50Hz

2000

6800

745

IP55,NEMA 4, NEMA 4X

1000

500

R134a

63

CYAC125-2

220VAC 50Hz

2500

8500

846

IP55,NEMA 4, NEMA 4X

2000

560

R134a

63

CYAC130-2

220VAC 50Hz

3000

10200

1240

IP55,NEMA 4, NEMA 4X

2000

720

R134a

63

CYAC135-2

220VAC 50Hz

3500

11900

1360

IP55,NEMA 4, NEMA 4X

2000

1250

R134a

63

CYAC150-2

220VAC 50Hz

5000

17000

2000

IP55,NEMA 4, NEMA 4X

2000

2300

R134a

63



220VAC 60HZ Power Electrical Enclosure Cooling System


Model

Voltage

Nominal cooling capacity(W) (L35/L35)

Nominal cooling capacity(Btu/hr) (L35/L35)

Power consumption(W)(L35/L35)

IP Grade

Heater (W)(option)

Internal air flow (m3/h)

Refrigerant

Noise (dbA)

CYAC103-2

220VAC 60Hz

300

1020

170

IP55,NEMA 4, NEMA 4X

500

100

R134a

56

CYAC104-2

220VAC 60Hz

400

1360

215

IP55,NEMA 4, NEMA 4X

500

110

R134a

56

CYAC105-2

220VAC 60Hz

500

1700

280

IP55,NEMA 4, NEMA 4X

500

120

R134a

56

CYAC110-2

220VAC 60Hz

1000

3400

430

IP55,NEMA 4, NEMA 4X

1000

230

R134a

62

CYAC112-2

220VAC 60Hz

1200

4080

498

IP55,NEMA 4, NEMA 4X

1000

240

R134a

62

CYAC113-2

220VAC 60Hz

1300

4440

532

IP55,NEMA 4, NEMA 4X

1000

260

R134a

63

CYAC115-2

220VAC 60Hz

1500

5100

600

IP55,NEMA 4, NEMA 4X

1000

300

R134a

63

CYAC120-2

220VAC 60Hz

2000

6800

745

IP55,NEMA 4, NEMA 4X

1000

500

R134a

63

CYAC125-2

220VAC 60Hz

2500

8500

846

IP55,NEMA 4, NEMA 4X

2000

560

R134a

63

CYAC130-2

220VAC 60Hz

3000

10200

1240

IP55,NEMA 4, NEMA 4X

2000

720

R134a

63

CYAC135-2

220VAC 60Hz

3500

11900

1360

IP55,NEMA 4, NEMA 4X

2000

1250

R134a

63



110V 60HZ Power Electrical Enclosure Cooling System


Model

Voltage

Nominal cooling capacity(W) (L35/L35)

Nominal cooling capacity(Btu/hr) (L35/L35)

Power consumption(W)(L35/L35)

IP Grade

Heater (W)(option)

Internal air flow (m3/h)

Refrigerant

Noise (dbA)

CYAC10 3-2

110VAC 60Hz

300

1020

170

IP55,NEMA 4, NEMA 4X

500

100

R134a

56

CYAC104-2

110VAC 60Hz

400

1360

215

IP55,NEMA 4, NEMA 4X

500

110

R134a

56

CYAC105-2

110VAC 60Hz

500

1700

280

IP55,NEMA 4, NEMA 4X

500

120

R134a

56

CYAC110-2

110VAC 60Hz

1000

3400

430

IP55,NEMA 4, NEMA 4X

1000

230

R134a

62

CYAC112-2

110VAC 60Hz

1200

4080

498

IP55,NEMA 4, NEMA 4X

1000

240

R134a

62

CYAC113-2

110VAC 60Hz

1300

4440

532

IP55,NEMA 4, NEMA 4X

1000

260

R134a

63

CYAC115-2

110VAC 60Hz

1500

5100

600

IP55,NEMA 4, NEMA 4X

1000

300

R134a

63



Other Electrical Enclosure Cooling System


Name

Specification

Air conditioner

  • AC220V 50HZ

  • AC220V 60HZ

  • AC110V 60HZ

  • DC48V

  • Cooling Capacity From 300W-5000W

Heat exchanger

  • DC48V

  • 40W/K-200W/K

Combined air conditioner & heat exchanger

  • AC220V 50HZ & DC48V

  • 1500W&80W/K

TEC

  • DC48V

  • 200W-1200W

Fan

  • AC220V 50HZ

  • AC220V 60HZ

  • AC110V 60HZ

  • DC48V



How to Choose the Right Electrical Enclosure Cooling?


When selecting an electrical enclosure cooling, it's crucial to ensure that the climate control system meets the specific needs of both your equipment and the environment. Below are key factors to consider for an efficient electrical enclosure cooling solution:


1. Acceptable Temperature Range for Your Equipment

The electrical enclosure air conditioning unit should be capable of maintaining a temperature within the recommended range for your sensitive electronic equipment. Too high or too low temperatures can damage components, so understanding the equipment's thermal requirements is essential.


2. Heat Load of Equipment

Assessing the total heat generated by the equipment inside the electrical cabinet is critical. The electrical panel air conditioner must have sufficient cooling capacity to handle the accumulated heat, ensuring stable operation. If the equipment produces high heat, a more powerful air conditioning unit will be needed.


3. Highest Local Ambient Temperature

The ambient temperature of the environment where the electrical enclosure is located plays a significant role in determining the necessary cooling capacity. The electrical enclosure cooling system must be designed to operate efficiently even in high-temperature conditions.


4. Noise Level

When selecting an electrical cabinet air conditioner, it's essential to consider the noise level, especially if the unit will be installed in a noise-sensitive area. Ensure that the electrical enclosure cooling system meets the noise regulations and operational comfort standards.


5. Future Expansion

If you anticipate increasing the equipment inside the enclosure, it's wise to consider future expansion. Choose a cooling system that can accommodate the potential increase in heat load without compromising performance.

By carefully considering these factors, you can select a enclosure cooling system that effectively maintains the optimal conditions for your equipment while ensuring efficiency and longevity.



Normative Standards for Electrical Enclosure Cooling


Compliance with local and international standards ensures that your electrical enclosure cooling operates safely and efficiently. Relevant standards include:


  • GB 4208: Enclosure Protection Class

  • GB 4706.1: Safety of Household and Similar Electrical Appliances

  • GB 9237-2001: Safety Requirements for Mechanical Refrigerating Systems

  • GB/T 17626.8: Electromagnetic Compatibility Testing for Power Frequency Magnetic Field Immunity



Fault Analysis and Troubleshooting


When issues arise, proper fault diagnosis is essential for minimizing downtime. Here’s a quick troubleshooting guide for electrical enclosure cooling systems:


Fault: The Cooling Is Not Working, But the Cabinet Temperature Is Too High


Possible Causes:

  • Power failure or no power

  • Cooling set temperature is higher than the cabinet temperature

  • System fault


Solutions:

  • Check the power supply and the electrical circuit

  • Set the cooling temperature according to requirements

  • Contact professional maintenance if the issue persists


Fault: Air Conditioner Running, But Cooling Effect Is Poor


Possible Causes:

  • Cooling capacity does not match the load

  • Ambient temperature too high

  • Other system faults

Solutions:

  • Choose a higher-capacity air conditioner or add another unit

  • Ensure operation within the correct ambient temperature range

  • Contact professional maintenance for further diagnosis


Fault: Air Conditioner Stops Suddenly

Possible Causes:

  • Cabinet temperature reaches or exceeds the cooling set temperature

  • Other system faults

Solutions:

  • Adjust the cooling temperature as needed

  • Contact professional maintenance for system inspection



Warranty and Coverage

The warranty for electrical enclosure cooling typically lasts for 12 months from the product's operational start date or up to 18 months from delivery, depending on agreements. During the warranty period, any faults arising from manufacturing defects will be repaired free of charge. However, the following conditions are not covered:

  1. Outside the warranty period

  2. Lack of product label

  3. Faults caused by abnormal conditions or improper installation

  4. Failures caused by external equipment or software

  5. Unauthorized modifications or repairs

  6. Damage caused by force majeure events (e.g., fires, floods)

By understanding these terms, you can ensure that your electrical enclosure coolingcontinues to operate efficiently throughout its lifespan.
