3000W outdoor cabinet ac for energy storage cabinet

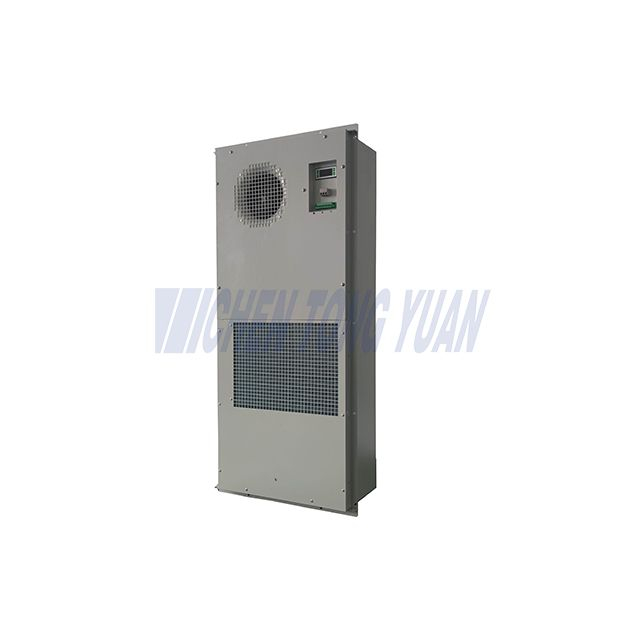

3000W 10200BTU/H Outdoor Cabinet AC for Energy Storage Cabinet

Outdoor cabinet ac achieves heat absorption refrigeration through compression refrigeration, transferring the heat emitted by the equipment inside the cabinet to the outside of the cabinet in a closed environment. The high temperature, dust and other dirty gases outside the cabinet will not enter the interior, thus solving a series of problems caused by fan heat dissipation. The interior of the cabinet can always maintain an ideal temperature environment of around 30 ℃, effectively ensuring the stability of electronic equipment.

◆AC220V 50HZ power input
◆3000W cooling capacity (optional configured with heater)
◆High efficiency rotary compressor：Reliable & energy saving
◆LED display：Parameters setting and operation display
◆IP55 High protection level：Application in outdoors perfectly
◆Wide operating temperature range：Adapt to all conditions

Model:
AC130-2/A30NA1E
Brand:
Cytech


Availability:



Inquiry

Product Description

Product Description

3000W 10200 BTU/H outdoor cabinet ac product video

3000W 10200 BTU/H outdoor cabinet ac certificate

3000W 10200 BTU/H outdoor cabinet ac introduction

Outdoor cabinet ac is actively cooling by compressor ,it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet,avoiding problems from using fan. The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system.

3000W 10200 BTU/H outdoor cabinet ac specifications

1) Technical parameter

Item	Name	Technical parameter
1	Model	AC130-2/A30NA1E
2	Main power supply	1~220VAC±15% 50Hz 1 phase
3	Cooling capacity(Rated)	3000W@L35/L35
4	Power consumption(Rated)	1240W@L35/L35
5	Heating capacity（optional）	2000W
6	Air flow	720m3/h
7	Cooling current (rated/Max.)	5.3A/7.5A
8	Work temp. range	-40℃~+55℃
9	Noise	65dB(A)
10	IP Grade	IP55,NEMA 4,NEMA 4X
11	Net Weight	53KG
12	Refrigerant	R134a

Note:@L35/L35 is Internal temperature 35℃, ambient temperature 35℃

2) Thermal cycle and air flow of 3000W 10200BTU/H cabinet ac

Outdoor Cabinet AC cooling principle: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly

outdoor cabinet air conditioner cycle

3000W 10200BTU/H outdoor cabinet ac features

◆ The outdoor cabinet ac also keeps dust and heat outside the cabinet, avoiding problems commonly encountered when using fans.

◆ The temperature inside the outdoor cabinet ac is maintained at an ideal level for electrical components, which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.

◆ Compact structure, reasonable design, and easy maintenance are key benefits of the outdoor cabinet ac.

◆ A digital temperature controller ensures high precision in temperature control for the outdoor cabinet ac.

◆ The heating function and the hydrogen function are optional, providing versatility in the outdoor cabinet ac.

◆ Remote measurement, remote communication, and remote control enable the outdoor cabinet ac to achieve multiple automatic protections and comprehensive self-testing functions.

◆ Dry contact alarm output, NO/NC options are available for the outdoor cabinet ac.

◆ The outdoor cabinet ac is equipped with an LED display, allowing all settings to be changed at the field.

◆ Multiple self-protection designs and a visible monitoring interface, along with an RS485 communication port (MODBUS-RTU), enhance the functionality of the outdoor cabinet ac.

◆ The outdoor cabinet ac is suitable for harsh conditions (T3) and uses R134a refrigerant.

3000W 10200BTU/H outdoor cabinet ac flexibility

Cooling capacity ranges from 300w to 5000w

Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V

Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.

Remote monitoring system supported, communication protocol is RS485.

More option for 3000W 10200BTU/H outdoor cabinet ac

1) 220VAC 50HZ power outdoor cabinet ac

Model	Voltage	Nominal cooling capacity(W) (L35/L35)	Nominal cooling capacity(Btu/hr) (L35/L35)	Power consumption(W)(L35/L35)	IP Grade	Heater (W)(option)	Internal air flow (m3/h)	Refrigerant	Noise (dbA)
CYAC103-2	220VAC 50Hz	300	1020	170	IP55,NEMA 4, NEMA 4X	500	100	R134a	56
CYAC104-2	220VAC 50Hz	400	1360	215	IP55,NEMA 4, NEMA 4X	500	110	R134a	56
CYAC105-2	220VAC 50Hz	500	1700	280	IP55,NEMA 4, NEMA 4X	500	120	R134a	56
CYAC110-2	220VAC 50Hz	1000	3400	430	IP55,NEMA 4, NEMA 4X	1000	230	R134a	62
CYAC112-2	220VAC 50Hz	1200	4080	498	IP55,NEMA 4, NEMA 4X	1000	240	R134a	62
CYAC113-2	220VAC 50Hz	1300	4440	532	IP55,NEMA 4, NEMA 4X	1000	260	R134a	63
CYAC115-2	220VAC 50Hz	1500	5100	600	IP55,NEMA 4, NEMA 4X	1000	300	R134a	63
CYAC120-2	220VAC 50Hz	2000	6800	745	IP55,NEMA 4, NEMA 4X	1000	500	R134a	63
CYAC125-2	220VAC 50Hz	2500	8500	846	IP55,NEMA 4, NEMA 4X	2000	560	R134a	63
CYAC130-2	220VAC 50Hz	3000	10200	1240	IP55,NEMA 4, NEMA 4X	2000	720	R134a	63
CYAC135-2	220VAC 50Hz	3500	11900	1360	IP55,NEMA 4, NEMA 4X	2000	1250	R134a	63
CYAC150-2	220VAC 50Hz	5000	17000	2000	IP55,NEMA 4, NEMA 4X	2000	2300	R134a	63

2)220VAC 60HZ power outdoor cabinet ac

Model	Voltage	Nominal cooling capacity(W) (L35/L35)	Nominal cooling capacity(Btu/hr) (L35/L35)	Power consumption(W)(L35/L35)	IP Grade	Heater (W)(option)	Internal air flow (m3/h)	Refrigerant	Noise (dbA)
CYAC103-2	220VAC 60Hz	300	1020	170	IP55,NEMA 4, NEMA 4X	500	100	R134a	56
CYAC104-2	220VAC 60Hz	400	1360	215	IP55,NEMA 4, NEMA 4X	500	110	R134a	56
CYAC105-2	220VAC 60Hz	500	1700	280	IP55,NEMA 4, NEMA 4X	500	120	R134a	56
CYAC110-2	220VAC 60Hz	1000	3400	430	IP55,NEMA 4, NEMA 4X	1000	230	R134a	62
CYAC112-2	220VAC 60Hz	1200	4080	498	IP55,NEMA 4, NEMA 4X	1000	240	R134a	62
CYAC113-2	220VAC 60Hz	1300	4440	532	IP55,NEMA 4, NEMA 4X	1000	260	R134a	63
CYAC115-2	220VAC 60Hz	1500	5100	600	IP55,NEMA 4, NEMA 4X	1000	300	R134a	63
CYAC120-2	220VAC 60Hz	2000	6800	745	IP55,NEMA 4, NEMA 4X	1000	500	R134a	63
CYAC125-2	220VAC 60Hz	2500	8500	846	IP55,NEMA 4, NEMA 4X	2000	560	R134a	63
CYAC130-2	220VAC 60Hz	3000	10200	1240	IP55,NEMA 4, NEMA 4X	2000	720	R134a	63
CYAC135-2	220VAC 60Hz	3500	11900	1360	IP55,NEMA 4, NEMA 4X	2000	1250	R134a	63

3)110V 60HZ power outdoor cabinet ac

Model	Voltage	Nominal cooling capacity(W) (L35/L35)	Nominal cooling capacity(Btu/hr) (L35/L35)	Power consumption(W)(L35/L35)	IP Grade	Heater (W)(option)	Internal air flow (m3/h)	Refrigerant	Noise (dbA)
CYAC103-2	110VAC 60Hz	300	1020	170	IP55,NEMA 4, NEMA 4X	500	100	R134a	56
CYAC104-2	110VAC 60Hz	400	1360	215	IP55,NEMA 4, NEMA 4X	500	110	R134a	56
CYAC105-2	110VAC 60Hz	500	1700	280	IP55,NEMA 4, NEMA 4X	500	120	R134a	56
CYAC110-2	110VAC 60Hz	1000	3400	430	IP55,NEMA 4, NEMA 4X	1000	230	R134a	62
CYAC112-2	110VAC 60Hz	1200	4080	498	IP55,NEMA 4, NEMA 4X	1000	240	R134a	62
CYAC113-2	110VAC 60Hz	1300	4440	532	IP55,NEMA 4, NEMA 4X	1000	260	R134a	63
CYAC115-2	110VAC 60Hz	1500	5100	600	IP55,NEMA 4, NEMA 4X	1000	300	R134a	63

Other outdoor enclosure climate control

Name	Specification
Air conditioner	AC220V 50HZ,AC220V 60HZ,AC110V 60HZ or DC48V, cooling capacity from 300W-5000W.
Heat exchanger	DC48V,40W/K-200W/K
Combined air conditioner & heat exchanger	AC220V 50HZ and DC48V 1500W&80W/K
TEC	DC48V, 200W-1200W
Fan	AC220V 50HZ,AC220V 60HZ,AC110V 60HZ or DC48V

How to choose outdoor cabinet ac?

◆Acceptable temperature range for your equipment;

◆Heat load of equipment;

◆The highest local ambient temperature；

◆Noise Level；

◆Future Expansion；

By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.

Outdoor cabinet ac normative standard

◆ <GB 4208> Enclosure Protection Class

◆ <GB 4706.1> Safety of household and similar electrical appliances

◆ <GB9237-2001> Mechanical refrigerating systems used for cooling and heating-safety requirements

◆ <GB/T 17626.8> Electromagnetic compatibility - Testing and measurement techniques -Power frequency magnetic field immunity test

Other fault analysis and processing for outdoor cabinet ac

Fault State	Analysis of the Reasons	Solutions
Power on the switch, the cabinet temperature is too high but the outdoor cabinet ac is not working.	1) Power failure or no power. 2) The cooling set temperature is higher than the cabinet temperature. 3) System fault.	1) Check the power supply and the electric circuit. 2) Set the cooling temperature according to the needs. 3) Please contact professional maintenance.
The outdoor cabinet ac is running but the cooling effect is not good.	1) The cooling capacity of the outdoor cabinet ac is not matched with the load. 2) The ambient temperature is too high. 3) Other system fault.	1) Add or choose another outdoor cabinet ac according to the load. 2) Ensure the machine is used in the correct range. 3) Please contact professional maintenance.
The machine is stopping suddenly, and the electric system is normal.	1) The cabinet temperature is greater than or equal to the cooling set temperature. 2) Other system fault.	1) Set the cooling temperature according to the needs. 2) Please contact professional maintenance.

Fault State

Analysis of the Reasons

Solutions

Power on the switch, the cabinet temperature is too high but the outdoor cabinet ac is not working.

1) Power failure or no power.

2) The cooling set temperature is higher than the cabinet temperature.

3) System fault.

1) Check the power supply and the electric circuit.

2) Set the cooling temperature according to the needs.

3) Please contact professional maintenance.

The outdoor cabinet ac is running but the cooling effect is not good.

1) The cooling capacity of the outdoor cabinet ac is not matched with the load.

2) The ambient temperature is too high.

3) Other system fault.

1) Add or choose another outdoor cabinet ac according to the load.

2) Ensure the machine is used in the correct range.

3) Please contact professional maintenance.

The machine is stopping suddenly, and the electric system is normal.

1) The cabinet temperature is greater than or equal to the cooling set temperature.

2) Other system fault.

1) Set the cooling temperature according to the needs.

2) Please contact professional maintenance.

Warranty for Outdoor Cabinet AC

Warranty Period for Outdoor Cabinet AC

The warranty period for the outdoor cabinet AC is 12 months from the product's operational start date or a maximum of 18 months from the product delivery date, depending on the agreement with the company.

Warranty Coverage for Outdoor Cabinet AC

During the warranty period, any faults caused by quality issues in the outdoor cabinet AC will be repaired by the company free of charge. For household repairs, the product label must be provided.

Exclusions from Warranty Coverage

The following situations are not covered by the warranty for the outdoor cabinet AC:

Out of Warranty Period
Issues that arise after the warranty period has expired.
Missing Product Label
Failure to provide the product label (located on the nameplate).
Improper Installation or Maintenance
Faults caused by abnormal conditions, environmental factors, or improper installation, maintenance, or operation that deviate from the specified instructions.
External Equipment Failures
Problems caused by other equipment or software that are not related to the outdoor cabinet AC.
Unauthorized Modifications
If the user disassembles, alters, or repairs the outdoor cabinet AC themselves or has it maintained by unauthorized personnel.
Force Majeure
Damage caused by unforeseen events such as fires, earthquakes, floods, or other natural disasters.
