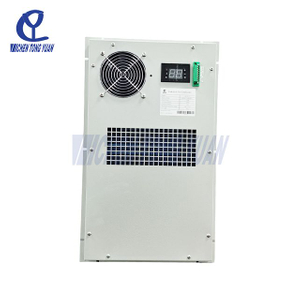

5000W 17000BTU/H Air Conditioner for Electrical Panel

Cytech Air Conditioner for Electrical Panel is a high-performance cooling solution designed for electrical enclosures and industrial control panels. It prevents overheating, protects sensitive equipment, and ensures stable operation. With efficient cooling, a compact design, and easy installation, it is ideal for industrial automation, telecom, and power distribution applications.

◆ Working temperature: -40℃ To 55℃
◆ High efficiency rotary compressor
◆ LED display:Parameters setting and operation display
◆ IP55 High protection level:Application in outdoors perfectly
◆ Wide operating temperature range:Adapt to all conditions
  • CY-A50NE

  • CY TECH

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Product Introduction Video




Certificate




CY-A50NE Features

Name

Air Conditioner for Electrical Panel

Model

AC150-2

Mounting Method

Semi-embedded Mounting

Power Supply

220VAC±15%   50Hz/60Hz

Cooling capacity

5000W@L35/35

Power capacity

1850W@L35/35

Cooling capacity

3000W@L35/55

Power capacity

2400W@L35/55

Max Noise Level

65dB(A)

IP Grade

IP55

Heater

2000W(Optional)

Net Weight

53kg

Refrigerant

R410a

Dimensions

1401*562*350(mm)

Note:@L35/L35 is Internal temperature 35℃, ambient temperature 35℃


Capacity curve




Cooling Princple


Cooling: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.



cooling system


Dimension




Installation


Please design and install the product according to the installation holes drawings below




Wiring



Definition of electrical terminal




No.

Symbol

Definition

No.

Symbol

Definition

1

L

AC power-L line

1

RS485-

Communication port B-

2

N

AC power- N line

2

RS485+

Communication port A+

3

PE

Protective earthing wire

3

*


4

*


4

ALR-NC

Alarm output-NC

5

*


5

ALR-COM

Alarm output-COM




6

ALR-NO

Alarm output-NO


Attention

▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.

▶Install vertically and make sure the polarity of wiring is correct and firm.

▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.

▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.


Options

More Optionals of Air Conditioner for Electrical Panel


220VAC 50HZ Power Air Conditioner for Electrical Panel


Model

Voltage

Nominal cooling capacity(W) (L35/L35)

Nominal cooling capacity(Btu/hr) (L35/L35)

Power consumption(W)(L35/L35)

IP Grade

Heater (W)(option)

Internal air flow (m3/h)

Refrigerant

Noise (dbA)

CYAC103-2

220VAC 50Hz

300

1020

170

IP55,NEMA 4, NEMA 4X

500

100

R134a

56

CYAC104-2

220VAC 50Hz

400

1360

215

IP55,NEMA 4, NEMA 4X

500

110

R134a

56

CYAC105-2

220VAC 50Hz

500

1700

280

IP55,NEMA 4, NEMA 4X

500

120

R134a

56

CYAC110-2

220VAC 50Hz

1000

3400

430

IP55,NEMA 4, NEMA 4X

1000

230

R134a

62

CYAC112-2

220VAC 50Hz

1200

4080

498

IP55,NEMA 4, NEMA 4X

1000

240

R134a

62

CYAC113-2

220VAC 50Hz

1300

4440

532

IP55,NEMA 4, NEMA 4X

1000

260

R134a

63

CYAC115-2

220VAC 50Hz

1500

5100

600

IP55,NEMA 4, NEMA 4X

1000

300

R134a

63

CYAC120-2

220VAC 50Hz

2000

6800

745

IP55,NEMA 4, NEMA 4X

1000

500

R134a

63

CYAC125-2

220VAC 50Hz

2500

8500

846

IP55,NEMA 4, NEMA 4X

2000

560

R134a

63

CYAC130-2

220VAC 50Hz

3000

10200

1240

IP55,NEMA 4, NEMA 4X

2000

720

R134a

63

CYAC135-2

220VAC 50Hz

3500

11900

1360

IP55,NEMA 4, NEMA 4X

2000

1250

R134a

63

CYAC150-2

220VAC 50Hz

5000

17000

2000

IP55,NEMA 4, NEMA 4X

2000

2300

R134a

63



220VAC 60HZ Power Air Conditioner for Electrical Panel


Model

Voltage

Nominal cooling capacity(W) (L35/L35)

Nominal cooling capacity(Btu/hr) (L35/L35)

Power consumption(W)(L35/L35)

IP Grade

Heater (W)(option)

Internal air flow (m3/h)

Refrigerant

Noise (dbA)

CYAC103-2

220VAC 60Hz

300

1020

170

IP55,NEMA 4, NEMA 4X

500

100

R134a

56

CYAC104-2

220VAC 60Hz

400

1360

215

IP55,NEMA 4, NEMA 4X

500

110

R134a

56

CYAC105-2

220VAC 60Hz

500

1700

280

IP55,NEMA 4, NEMA 4X

500

120

R134a

56

CYAC110-2

220VAC 60Hz

1000

3400

430

IP55,NEMA 4, NEMA 4X

1000

230

R134a

62

CYAC112-2

220VAC 60Hz

1200

4080

498

IP55,NEMA 4, NEMA 4X

1000

240

R134a

62

CYAC113-2

220VAC 60Hz

1300

4440

532

IP55,NEMA 4, NEMA 4X

1000

260

R134a

63

CYAC115-2

220VAC 60Hz

1500

5100

600

IP55,NEMA 4, NEMA 4X

1000

300

R134a

63

CYAC120-2

220VAC 60Hz

2000

6800

745

IP55,NEMA 4, NEMA 4X

1000

500

R134a

63

CYAC125-2

220VAC 60Hz

2500

8500

846

IP55,NEMA 4, NEMA 4X

2000

560

R134a

63

CYAC130-2

220VAC 60Hz

3000

10200

1240

IP55,NEMA 4, NEMA 4X

2000

720

R134a

63

CYAC135-2

220VAC 60Hz

3500

11900

1360

IP55,NEMA 4, NEMA 4X

2000

1250

R134a

63



110V 60HZ Power Air Conditioner for Electrical Panel


Model

Voltage

Nominal cooling capacity(W) (L35/L35)

Nominal cooling capacity(Btu/hr) (L35/L35)

Power consumption(W)(L35/L35)

IP Grade

Heater (W)(option)

Internal air flow (m3/h)

Refrigerant

Noise (dbA)

CYAC103-2

110VAC 60Hz

300

1020

170

IP55,NEMA 4, NEMA 4X

500

100

R134a

56

CYAC104-2

110VAC 60Hz

400

1360

215

IP55,NEMA 4, NEMA 4X

500

110

R134a

56

CYAC105-2

110VAC 60Hz

500

1700

280

IP55,NEMA 4, NEMA 4X

500

120

R134a

56

CYAC110-2

110VAC 60Hz

1000

3400

430

IP55,NEMA 4, NEMA 4X

1000

230

R134a

62

CYAC112-2

110VAC 60Hz

1200

4080

498

IP55,NEMA 4, NEMA 4X

1000

240

R134a

62

CYAC113-2

110VAC 60Hz

1300

4440

532

IP55,NEMA 4, NEMA 4X

1000

260

R134a

63

CYAC115-2

110VAC 60Hz

1500

5100

600

IP55,NEMA 4, NEMA 4X

1000

300

R134a

63



Other Panel Air Conditioning Units


Name

Specification

Air conditioner

  • AC220V 50HZ

  • AC220V 60HZ

  • AC110V 60HZ

  • DC48V

  • Cooling Capacity From 300W-5000W

Heat exchanger

  • DC48V

  • 40W/K-200W/K

Combined air conditioner & heat exchanger

  • AC220V 50HZ & DC48V

  • 1500W&80W/K

TEC

  • DC48V

  • 200W-1200W

Fan

  • AC220V 50HZ

  • AC220V 60HZ

  • AC110V 60HZ

  • DC48V



Application

Applications of Air Conditioner for Electrical Panel


Electrical Panel Air Conditioners (EPACs) or industrial cabinet air conditioners are vital for maintaining optimal temperatures for sensitive control panels and equipment across various industries. Below are the key applications:


  • Industrial Automation

    Air Conditioner for Electrical Panel ensures proper cooling for control panels in automated manufacturing systems, preventing overheating of components like PLCs, sensors, and motor drives.


  • Electrical Cabinets and Enclosures

    Used to cool components such as circuit breakers, switches, and transformers, Electrical Panel AC helps protect electrical systems from heat damage, ensuring smooth operations.


  • Telecommunications

    In telecom, control panel ac unit cools control panels for network routers and switches, maintaining network reliability and preventing failures due to overheating.


  • Renewable Energy Systems

    In solar and wind power applications, Air Conditioner for Electrical Enclosure regulates temperatures in control panels for inverters and battery management systems, ensuring reliability in fluctuating environments.


  • Railways and Transportation

    Air Conditioner for Electrical Panel cools control panels in rail signaling, train control, and track-switching systems, preventing malfunctions from excessive heat.


  • Oil and Gas Industry

    Used in offshore rigs and processing plants, Air Conditioner for Electrical Panel protects control panels in extreme temperature conditions, ensuring smooth operations in critical environments.


  • HVAC Systems

    Integrated into HVAC systems, Electrical Panel Air Conditioning cools panels managing chillers and air handling units, ensuring consistent operation of critical cooling equipment.


  • Automotive Industry

    In vehicle manufacturing plants, Air Conditioner for Electrical Panel protects panels in robotics and assembly lines, ensuring high efficiency and preventing downtime from overheating.


  • Medical Equipment

    For medical devices, Air Conditioner for Electrical Panel ensures accuracy by cooling control panels in diagnostic and monitoring systems, preventing heat-related failures.


  • Food and Beverage Industry

    Air Conditioner for Electrical Panel maintains the temperature of control panels in production lines, cooling refrigeration units and automated packaging systems for efficient operations.


  • Air Conditioner for Electrical Panel is essential for ensuring the performance, safety, and longevity of electrical and electronic systems across a wide range of industries.



How to order

How to Choose Air Conditioner for Electrical Panel?


◆ Acceptable temperature range for your equipment;

◆ Heat load of equipment;

◆ The highest local ambient temperature;

◆ Noise Level;

◆ Future Expansion;

By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.



Normative Standard


◆ <GB 4208>  Enclosure Protection Class

◆ <GB 4706.1> Safety of household and similar electrical appliances

◆ <GB9237-2001> Mechanical refrigerating systems used for cooling and heating-safety requirements

◆ <GB/T 17626.8> Electromagnetic compatibility - Testing and measurement techniques -Power frequency magnetic field immunity test


Other Fault Analysis and Processing about Air Conditioner for Electrical Panel


Fault state

Analysis of the reasons

Solutions

Power on the switch, the cabinet temperature is too high but the control panel air conditioner is not

working.

  • Power failure or no power.

  • The cooling set temperature is higher than the cabinet temperature.

  • System fault.

  • Check the power supply and the electric circuit.

  • Setting cooling temperature

    according to the needs.

  • Please contact professional

    maintenance.

The control panel air conditioner is running but the cooling effect is not good.

  • The cooling capacity of the control panel air conditioner is not match with the load.

  • The ambience temperature is too high.

  • Other system fault.

  • To add or choose another air conditioner according to the load.

  • Ensure the machine is used in the correct range.

  • Please contact professional maintenance.

The machine is stopping suddenly, and the electric system is normal.

  • The cabinet temperature greater than or equal to the cooling set temperature.

  • Other system fault.

  • Setting cooling temperature according to the needs.

  • Please contact professional maintenance.


Air Conditioner for Electrical Panel Warranty Period and Coverage


Warranty Period

The product warranty is valid for 12 months from the time the Electrical Panel Air Conditioner is operational, or a maximum of 18 months from the product delivery date, depending on the agreement with the company.


Warranty Coverage

During the warranty period, any defects related to the product's quality will be repaired free of charge. To claim repairs, the product label must be provided. The warranty does not cover the following situations:


  1. Out of Warranty Period: Warranty claims made after the specified period.

  2. Missing Product Label: If the product label is not available (found on the nameplate).

  3. Abnormal Conditions: Failures due to improper installation, maintenance, or operation under abnormal conditions or environments.

  4. External Equipment or Software Issues: Failures caused by other equipment or software, not the Electrical Panel Air Conditioner.

  5. Unauthorized Modifications: Damage caused by the user altering, disassembling, or maintaining the product without authorization.

  6. Force Majeure: Failures caused by unforeseen events such as fires, earthquakes, floods, or other natural disasters.


This warranty ensures that Air Conditioner for Electrical Panel products are maintained and repaired within the outlined conditions to guarantee reliable operation.
