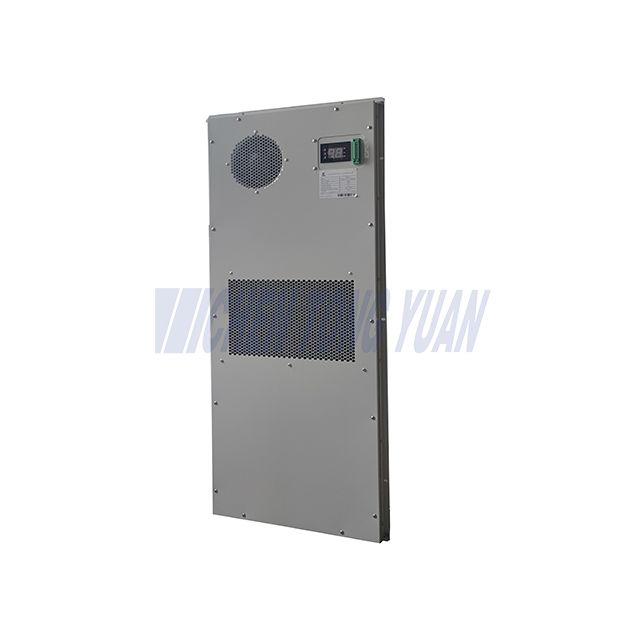

Side Mount 2500W 8500BTU/H Cabinet AC for Industrial Equipment

Side Mount 2500W 8500BTU/H Cabinet AC Product Video

Side Mount 2500W 8500BTU/H Cabinet AC Certificate

Side Mount 2500W 8500BTU/H Cabinet AC Introductin

Outdoor cabinet ac is actively cooling by compressor ,it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet,avoiding problems from using fan. The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system.

2500W Side Mount 2500W 8500BTU/H Cabinet AC Specifications

1) Technical parameter of enclosure ac

Note:@L35/L35 is Internal temperature 35℃, ambient temperature 35℃

2) Thermal cycle and air flow of Cabinet AC

Enclosure AC Cooling Principle: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly

Outdoor Side Mount 2500W 8500BTU/H Enclosure AC Features

◆Enclosure AC also can keep the dust and heat outside the cabinet,avoiding problems from using fan;

◆The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system;

◆Compact structure ,reasonable design and easy maintenance;

◆Digital temperature controller and high precision of temperature control;

◆The heating function and the hydrogen function is optional;

◆Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;

◆Dry contact alarm output,NO/NC optional;

◆LED display, all the settings can changed at the field

◆Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU);

◆Fit for harsh condition (T3), R134a refrigerant .

Side Mount 2500W 8500BTU/H Cabinet AC Flexibility

Cooling capacity ranges from 300w to 5000w

Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V

Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.

Remote monitoring system supported, communication protocol is RS485.

More option for Cabinet AC

1) 220VAC 50HZ power cabinet ac

2)220VAC 60HZ power ca ac

3)110V 60HZ power enclosure ac

Other Cabinet AC

How to Choose the Right Cabinet AC for Your Equipment

Selecting the appropriate Cabinet AC or Enclosure AC  (Industrial Enclosure Air Conditioner) is crucial for ensuring the efficient operation and longevity of your equipment, particularly in environments where temperature control is essential. By focusing on key factors such as the acceptable temperature range, heat load, local ambient temperature, noise level, and future expansion, you can make a well-informed decision. Here’s a deeper look into these factors:

1. Acceptable Temperature Range for Your Equipment

Every piece of equipment has an optimal operating temperature range. Understanding this range is vital to prevent overheating or underperformance. An electrical enclosure cooling system must maintain the interior temperature within this range to ensure the longevity and reliability of your equipment.

2. Heat Load of Equipment

The heat generated by your equipment directly impacts the cooling requirements. A higher heat load demands a more powerful Cabinet AC. By calculating the total heat dissipation, you can select an electronic enclosure cooling solution that matches the cooling capacity required.

3. The Highest Local Ambient Temperature

Local environmental conditions can influence the performance of the enclosure cooling system. The Cabinet AC should be capable of handling the highest temperature expected in the operating environment, especially in industries where high external temperatures are common.

4. Noise Level

Noise generated by the Cabinet AC or Enclosure AC can be a concern in environments requiring a quiet atmosphere. Consider the noise specifications of the industrial enclosure air conditioner to ensure it does not interfere with the work environment.

5. Future Expansion

As your system grows or new equipment is added, it’s essential to account for future needs. Choosing an Cabinet AC or Enclosure AC with scalability options can help accommodate increased heat loads as your equipment evolves.

By evaluating these considerations, you can ensure that your Cabinet AC or Enclosure AC meets the specific demands of your equipment and environmental conditions.

Normative Standards for Enclosure AC

When selecting and installing an industrial enclosure air conditioner, adherence to national standards ensures safety and efficiency. Key standards include:

• GB 4208 – Enclosure Protection Class

• GB 4706.1 – Safety of Household and Similar Electrical Appliances

• GB9237-2001 – Mechanical Refrigerating Systems for Cooling and Heating

• GB/T 17626.8 – Electromagnetic Compatibility Testing (Power Frequency Magnetic Field Immunity Test)

These standards govern the safety, efficiency, and electromagnetic compatibility of the electrical enclosure cooling system, helping ensure proper installation and operation.

Fault Analysis and Solutions for Cabinet AC

Despite careful selection and installation, faults may still occur in the Cabinet AC or Enclosure AC. Here are some common issues and solutions:

1. Cabinet Temperature Too High, Air Conditioner Not Working

• Causes: Power failure, incorrect cooling set temperature, system fault

• Solutions: Check power supply and electrical circuit, adjust cooling temperature, or contact professional maintenance.




2. Air Conditioner Running but Cooling Effect is Poor

• Causes: Mismatch between cooling capacity and heat load, high ambient temperature, system fault

• Solutions: Add or replace the air conditioner based on load requirements, ensure the machine is used within the correct temperature range, or contact professional maintenance.




3. Machine Stopping Suddenly, Normal Electrical System

• Causes: Cabinet temperature greater than or equal to the set cooling temperature, system fault

• Solutions: Adjust the cooling temperature settings, or consult with maintenance professionals.




Warranty Coverage and Considerations for Cabinet AC

The Cabinet AC or Enclosure AC typically comes with a 12-month warranty from the product's running time or up to 18 months from delivery, depending on the agreement. Warranty covers product quality issues, but the following conditions are not covered:

1. Out of Warranty Period

2. Missing Product Label

3. Fault Due to Abnormal Conditions or Improper Installation

4. Damage Caused by User Modifications

5. Force Majeure Events (e.g., fires, floods)

Ensuring that the Cabinet AC or Enclosure AC is maintained according to manufacturer specifications is key to retaining warranty coverage.

By understanding these critical factors and adhering to the standards and maintenance protocols, you can choose an Cabinet AC or Enclosure AC that will ensure the efficiency and reliability of your industrial equipment.
