400W Outdoor Electrical Cabinet Air Conditioner 1360BTU

400W Outdoor Electrical Cabinet Air Conditioner 1360BTU Product Video

400W Outdoor Electrical Cabinet Air Conditioner 1360BTU Certificate

400W Outdoor Electrical Cabinet Air Conditioner 1360BTU Introduction

Outdoor electrical cabinet air conditioner or electrical panel ac unit is actively cooling by compressor ,it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet,avoiding problems from using fan. The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system.

400W Outdoor Electrical Cabinet Air Conditioner 1360BTU Specifications

1.Technical parameter

Note:@L35/L35 is Internal temperature 35℃, ambient temperature 35℃

2. Thermal cycle and air flow

Electrical Cabinet Air Conditioner Cooling Princple: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.

400W Outdoor Electrical Cabinet Air Conditioner 1360BTU Features

◆Electrical Cabinet Air Conditioner also can keep the dust and heat outside the cabinet,avoiding problems from using fan;

◆The temperature inside the cabinet can be maintained at an ideal temperature for electrical components which effectively guarantee the stability of the electronic equipment and improves the reliability of the whole system;

◆Compact structure ,reasonable design and easy maintenance;

◆Digital temperature controller and high precision of temperature control;

◆Electrical Cabinet Air Conditioner heating function and the hydrogen function is optional;

◆Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;

◆Dry contact alarm output,NO/NC optional;

◆LED display, all the settings can changed at the field

◆Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU);

◆Electrical Cabinet Air Conditioner fits for harsh condition (T3), R134a refrigerant .

400W Outdoor Electrical Cabinet Air Conditioner 1360BTU Flexibility

Electrical Cabinet Air Conditioner Cooling capacity ranges from 300w to 5000w

Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V

Electrical Cabinet Air Conditionr is widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.

Remote monitoring system supported, communication protocol is RS485

More option for Electrical Cabinet Air Conditioner

1.220VAC 50HZ power electrical cabinet air conditioner

2.220VAC 60HZ power electrical cabinet air conditioner

3.110V 60HZ power electrical cabinet air conditioner

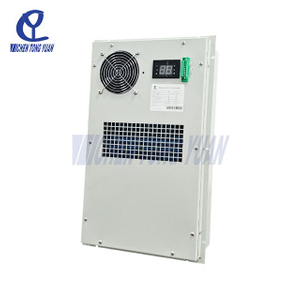

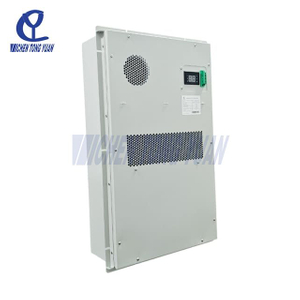

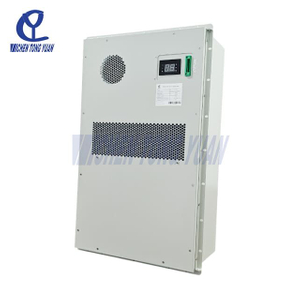

Other Electrical Cabinet Air Conditioner

How to Choose the Right Electrical Cabinet Air Conditioner?

When selecting an electrical cabinet air conditioner, it's crucial to ensure that the climate control system meets the specific needs of both your equipment and the environment. Below are key factors to consider for an efficient electrical enclosure cooling solution:

1. Acceptable Temperature Range for Your Equipment

The electrical cabinet air conditioning unit should be capable of maintaining a temperature within the recommended range for your sensitive electronic equipment. Too high or too low temperatures can damage components, so understanding the equipment's thermal requirements is essential.

2. Heat Load of Equipment

Assessing the total heat generated by the equipment inside the electrical cabinet is critical. The electrical panel air conditioner must have sufficient cooling capacity to handle the accumulated heat, ensuring stable operation. If the equipment produces high heat, a more powerful air conditioning unit will be needed.

3. Highest Local Ambient Temperature

The ambient temperature of the environment where the electrical enclosure is located plays a significant role in determining the necessary cooling capacity. The electrical cabinet air conditioning system must be designed to operate efficiently even in high-temperature conditions.

4. Noise Level

When selecting an electrical cabinet air conditioner, it's essential to consider the noise level, especially if the unit will be installed in a noise-sensitive area. Ensure that the electrical enclosure cooling system meets the noise regulations and operational comfort standards.

5. Future Expansion

If you anticipate increasing the equipment inside the enclosure, it's wise to consider future expansion. Choose a cooling system that can accommodate the potential increase in heat load without compromising performance.

By carefully considering these factors, you can select a cabinet climate control system that effectively maintains the optimal conditions for your equipment while ensuring efficiency and longevity.

Normative Standards for Electrical Cabinet Air Conditioners

Compliance with local and international standards ensures that your electrical panel air conditioner operates safely and efficiently. Relevant standards include:

• GB 4208: Enclosure Protection Class

• GB 4706.1: Safety of Household and Similar Electrical Appliances

• GB 9237-2001: Safety Requirements for Mechanical Refrigerating Systems

• GB/T 17626.8: Electromagnetic Compatibility Testing for Power Frequency Magnetic Field Immunity

Fault Analysis and Troubleshooting

When issues arise, proper fault diagnosis is essential for minimizing downtime. Here’s a quick troubleshooting guide for electrical cabinet air conditioning systems:

Fault: The Air Conditioner Is Not Working, But the Cabinet Temperature Is Too High

Possible Causes:

• Power failure or no power

• Cooling set temperature is higher than the cabinet temperature

• System fault

Solutions:

• Check the power supply and the electrical circuit

• Set the cooling temperature according to requirements

• Contact professional maintenance if the issue persists

Fault: Air Conditioner Running, But Cooling Effect Is Poor

Possible Causes:

• Cooling capacity does not match the load

• Ambient temperature too high

• Other system faults

Solutions:

• Choose a higher-capacity air conditioner or add another unit

• Ensure operation within the correct ambient temperature range

• Contact professional maintenance for further diagnosis

Fault: Air Conditioner Stops Suddenly

Possible Causes:

• Cabinet temperature reaches or exceeds the cooling set temperature

• Other system faults

Solutions:

• Adjust the cooling temperature as needed

• Contact professional maintenance for system inspection

Warranty and Coverage

The warranty for electrical cabinet air conditioners typically lasts for 12 months from the product's operational start date or up to 18 months from delivery, depending on agreements. During the warranty period, any faults arising from manufacturing defects will be repaired free of charge. However, the following conditions are not covered:

1. Outside the warranty period

2. Lack of product label

3. Faults caused by abnormal conditions or improper installation

4. Failures caused by external equipment or software

5. Unauthorized modifications or repairs

6. Damage caused by force majeure events (e.g., fires, floods)

By understanding these terms, you can ensure that your electrical cabinet air conditioner continues to operate efficiently throughout its lifespan.
