AC103-2
CY TECH
Telecom, Battery, Integrated
IP 55, IP 65
Half-embeded Mount, Door Mount
300W/1000BTU
Product Description

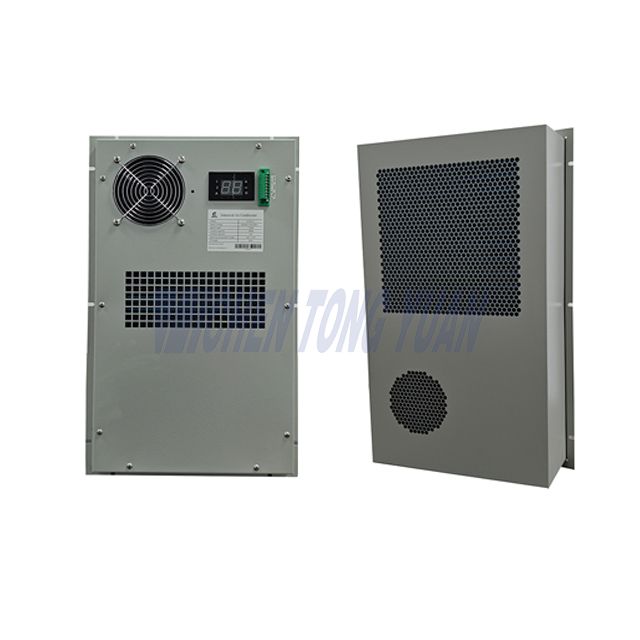

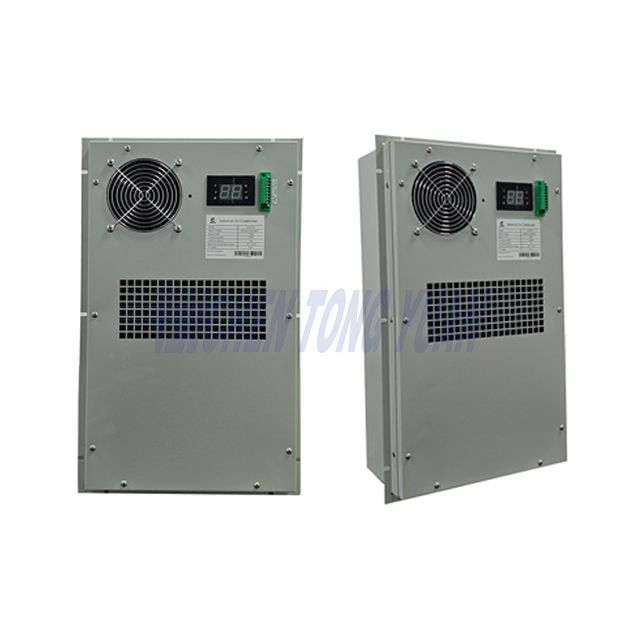

The AC300W cabinet air conditioner is developed for telecom cabinet cooling and monitoring applications in outdoor environments. By adopting a closed-loop cabinet cooling cycle, it maintains stable internal temperatures for communication and monitoring cabinets exposed to varying weather conditions.
Featuring a space-saving design, corrosion-resistant housing, and low-noise operation, this compact cabinet air conditioner is ideal for outdoor telecom cabinets, monitoring enclosures, and pole-mounted equipment cabinets that require reliable cooling with limited installation space.
The built-in intelligent control system automatically adjusts cooling performance, monitors cabinet internal temperature, and issues alarms when overheating risks occur, ensuring continuous protection for communication equipment cabinets.
Compact AC compressor for cabinet air conditioner applications
Digital temperature display with simple controls
RS485 / Modbus-RTU interface for remote cabinet monitoring
Over-temperature protection and fault alarms
Closed-loop cabinet air conditioner design prevents dust and moisture entry
Optional heater for outdoor low-temperature conditions
Corrosion-resistant structure for outdoor cabinet installations
Continuous performance monitoring
Low maintenance design for remote cabinets
Flexible mounting for compact enclosures
Name | Cabinet Air Conditioner AC 300 W |
Model | AC103-2 |
Main power supply | 1~220VAC±15% 50Hz 1 phase |
Cooling capacity(Rated) | 300W@L35/L35 |
Power consumption(Rated) | 170W@L35/L35 |
Heating capacity（optional） | 500W |
Air flow | 100m3/h |
Cooling current (rated/Max.) | 14.8A/19.0A |
Work temp. range | -40℃~+55℃ |
Noise | 60dB(A) |
IP Grade | IP55,NEMA 4,NEMA 4X |
Net Weight | 18KG |
Refrigerant | R134a |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃
Industrial Cabinet Air Conditioner Cooling Princple : the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, so the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
Application
Telecom BTS outdoor cabinets
Wireless communication enclosures
4G/5G base station equipment cabinets
Monitoring and surveillance cabinets
Traffic and ITS pole-mounted enclosures
Remote communication cabinet installations
Options
to be continued ,please contact with your sales expert.
Name | Specification |
| |
| |
| |
| |
|
Advantages&Why?
Whether in industrial plants or outdoor telecom sites, our AC units maintain stable temperatures, safeguarding critical electronics.
Prevents overheating, condensation, and equipment downtime with a trusted, high-performance cooling system.
Reduce operational costs without compromising on reliability, thanks to smart design and low energy consumption.
Decades years of experience
Global supply capability
Customized cooling solutions
Fast delivery and technical support
Widely used in telecom, utilities, transportation, and energy storage industries
Cooling capacity ranges from 300w to 5000w
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc.
Remote monitoring system supported, communication protocol is RS485
Our engineering team can recommend the right model based on:
Cabinet size
Heat load
Installation method
Environment
Voltage requirements
Contact us for datasheets, drawings, pricing, or OEM/ODM solutions.
